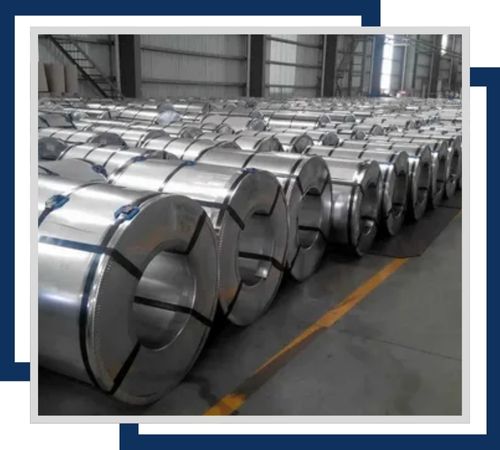

Ed Stainless supplies premium Stainless Steel 253MA Coils from our Houston, USA-based facility. Constructed for superior resistance to heat and oxidation, the coils can be used in extreme service conditions. Our SS 253MA coils are made from top-notch raw materials and meet ASTM and other international standards. Reknowned for offering a long life span, they come in different widths and thicknesses to suit different applications. Timely delivery, strict quality control, and cost-effectiveness characterize Ed Stainless’s service, thereby making us a credible business associate to industries like petrochemical, power generation, and thermal processing.
Stainless Steel 253MA Coils have 21% chromium, 11% nickel, and important elements such as silicon, nitrogen, and cerium, imparting high-temperature strength and resistance to oxidation. The tensile strength is about 600 MPa and yield strength about 310 MPa. They have good mechanical properties at high temperatures, with good creep strength. The coils also have good weldability and medium formability. Used for applications up to 1100°C, SS 253MA coils are best suited for processes that need extended exposure to heat and stress without compromising performance.
| Specifications | ASTM A240, ASME SA240 |
| Dimensional specification | JIS, AISI, ASTM, GB, DIN, EN, etc |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc/td> |
| Thickness | 0.3 mm to 120 mm |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Surface Finishing | Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc. |
| Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
| Outside Finish | Finish as per customer Requirements |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Packing | Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests |
| Specials | Sizes and Specifications other than above can be on request |
| Grade | C | Mn | Si | S | Fe | Ni | Cr | P | Ce |
| Stainless Steel 253MA | 0.05-0.10 max | 0.80 max | 1.40-2.00 | 0.030 max | Balance | 10.0-12.0 | 20.0-22.0 | 0.040 max | 0.03-0.08 |
| Elongation | Density | Yield Strength (0.2%Offset) | Tensile Strength | Melting Point |
| 40 % | 8 g/cm3 | Psi – 45,000 | Psi – 87,000 | 1371-1432 ‘C |
Contact us to get a quick quote for your requirement.

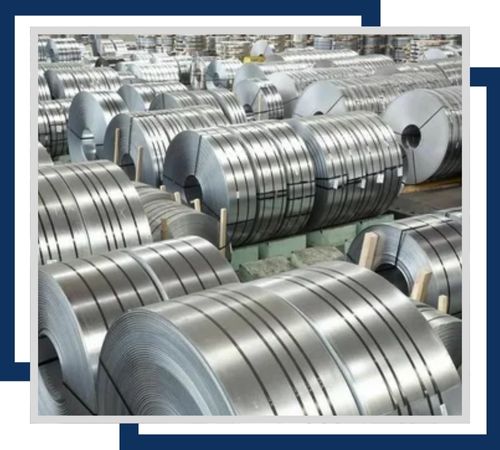

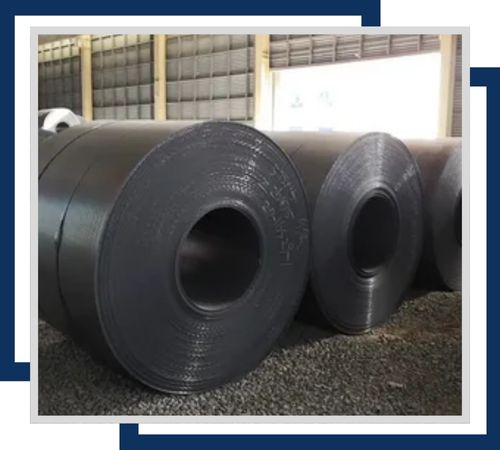

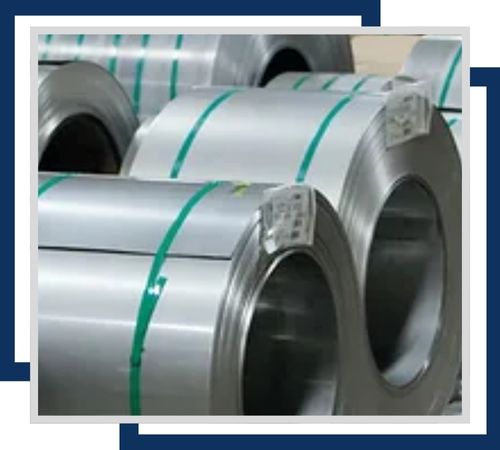

ASTM A240 253 MA hot rolled strip coil offers high-temperature strength and oxidation resistance, ideal for furnace components, kilns, and petrochemical industries, ensuring durability and performance up to 1150°C.
Stainless Steel 253 MA hot rolled strip coils provide high-temperature strength and oxidation resistance, ideal for furnace components, kilns, and petrochemical applications, ensuring durability and reliability up to 1150°C.
Ed Stainless provides excellent Stainless Steel 253Ma Coils, which offer consistent performance and are also tested using a wide variety of tests, such as hardness testing, spectro analysis, PMI, and flaring tests. We also undertake micro and macro tests, pitting resistance, and IGC tests to ensure the best quality in every coil that we provide. Along with the stringent test procedures, we are providing full documentation, including commercial invoices, net and gross weight packaging lists along with box numbers, and labels. Our legalized or attested Certificate of Origin coupled with Third-Party Inspection Certificates assures utmost commitment for our products being the best with no compromise on customer’s satisfaction levels.
SS 253MA Coils are extensively utilized in industries that need heat-resisting parts. Furnace components, heat shields, kiln linings, and high-temperature ducts are some of its applications. These coils are best suited for welded structures that are to be fabricated and are subjected to cyclic thermal loads. They are applied in petrochemical and metallurgical processes for exhaust systems, mufflers, and heat exchangers. Their thermal stability and formability also render them appropriate for industrial ovens and burners. Ed Stainless has coils of varying sizes and finishes available to cater to varying production requirements and deliver performance under extreme operating conditions.
