Stainless Steel 904L Tube Fittings consist of high amounts of nickel (23-28%), chromium (19-23%), and molybdenum (4-5%), along with added copper (1-2%) for better resistance to reducing acids. The fittings have a tensile strength of 490-740 MPa and a yield strength around 220 MPa. With elongation exceeding 35%, they are strong and ductile. Their non-magnetic nature and resistance to stress corrosion cracking make them suitable for harsh industrial conditions. These fittings maintain mechanical integrity at high temperatures and are particularly effective in chloride-rich and acidic environments.
| Specifications | : | ASTM S182 / A276 ASME SA 479 |
| Tube Size | : | 6mm to 38mm to 1/4″ to 1 1/2″ |
| Thread | : | NPT, BSP, BSPT, UNF, ISO, SAE, etc. |
| Brass | : | ASTM B16 ASTM B 453 |
| Pressure Rating | : | 6000PSI for Stainless Steel, 300/1000/3000PSI for Brass |
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | Cu |
| SS 904L | 0.02 max | 2.0 max | 1.0 max | 0.045 max | 0.035 max | 19 – 23 | 23 – 28 | 4 – 5 | 1 – 2 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 904L | 8.05 g/cm3 | 1350 °C (2460 °F) | Psi – 71000, MPa – 490 | Psi – 32000, MPa – 220 | 35 % |
Contact us to get a quick quote for your requirement.
At Ed Stainless, we are proud to be the largest supplier, manufacturer, and exporter of Stainless Steel 904L Tube Fittings in Texas, USA. Our state-of-the-art solutions address all your piping needs. With advanced production facilities in the USA, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring that stock is readily available to meet your demands.

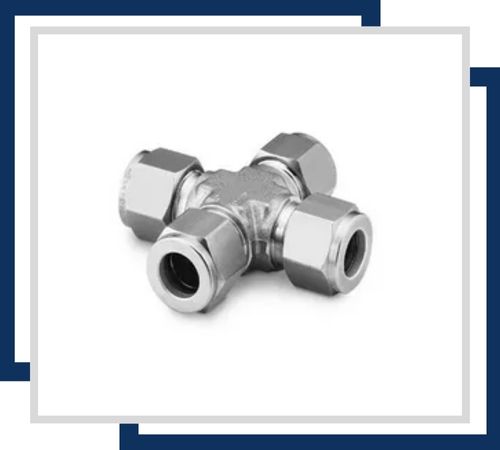

Stainless Steel 904L Union Cross connects four tubes at a right angle. It typically comes in sizes ranging from 1/4″ to 2″. Known for its exceptional corrosion resistance, it is ideal for highly corrosive environments.

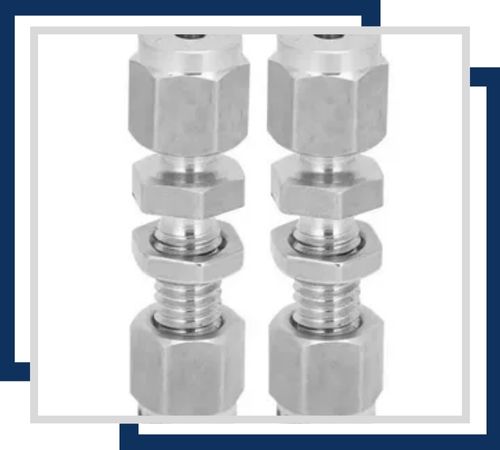

Stainless Steel 904L Reducer Union smoothly transitions two different tube sizes. Available in sizes from 1/4″ to 2″ and designed for high corrosion resistance, it’s perfect for managing flow changes in corrosive settings.

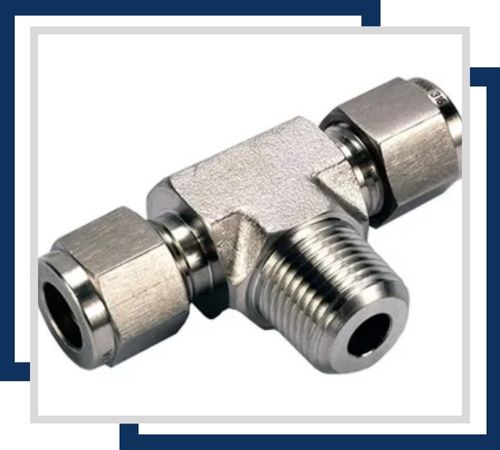

Stainless Steel 904L Male Branch Tee features a male thread on the branch and is used to create a branch connection. It is available in sizes from 1/4″ to 2″ and offers excellent resistance to corrosion, making it suitable for harsh environments.

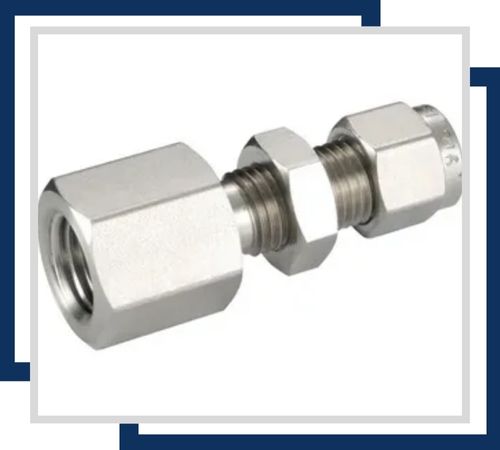

The Stainless Steel 904L Female Connector is designed to join two tubes with female threads. It comes in sizes from 1/4″ to 2″ and is highly corrosion resistant, ideal for chemical processing and marine applications.

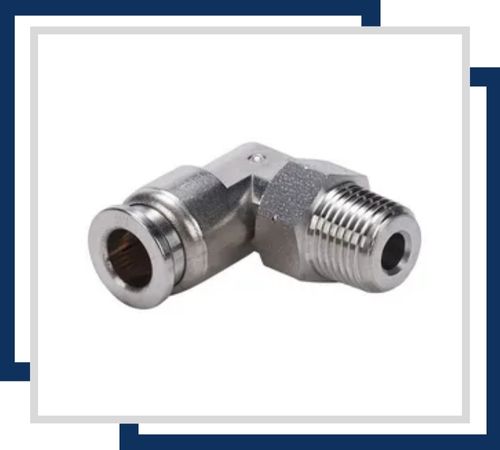

Stainless Steel 904L Male Elbow allows for a 90-degree change in the direction of the tubing. Available in sizes from 1/4″ to 2″, it provides superior corrosion resistance and is suitable for complex piping systems in corrosive environments.

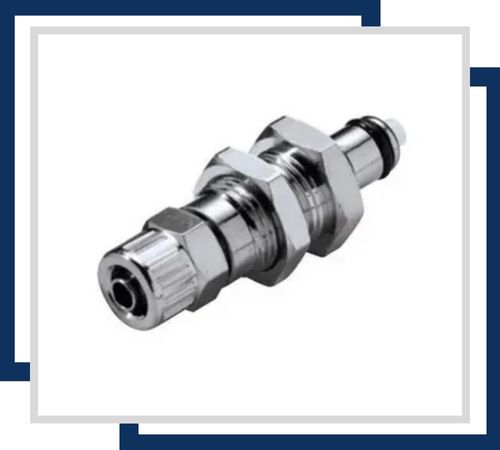

A Stainless Steel 904L Male Connector connects two tubes with male threads. It is available in sizes from 1/4″ to 2″ and offers high resistance to corrosion, making it ideal for use in aggressive chemical environments.
Ed Stainless is a leading supplier and stockist of high-quality Stainless Steel 904L Tube Fittings in Texas, USA. Our products are widely used in various applications, and we are committed to delivering excellent service, resulting in high customer satisfaction. Our unique finishing techniques further distinguish us in the stainless steel industry. We are dedicated to consistently providing superior products and effectively meeting our customer’s needs.
Stainless Steel 904L Tube Fittings are used in applications involving harsh chemical environments. Common industries include chemical processing, pulp and paper, marine engineering, pollution control equipment, and power generation. Their resistance to pitting, crevice corrosion, and stress corrosion cracking makes them ideal for handling chlorides, acids, and other corrosive materials. These fittings are often found in systems that transport or process sulfuric acid, seawater, and high-temperature fluids. In pharmaceuticals and food industries, they are used in clean piping systems that require high purity and corrosion protection. Ed Stainless ensures each fitting works reliably in critical, high-risk applications.
