ED Stainless stands out as a top-notch manufacturer and supplier of premium stainless steel fasteners, proudly based in Houston, Texas, USA. With a focus on Stainless Steel 304H Nuts, this company has built a reputation for delivering precision-engineered products that not only meet international standards but also cater to the specific needs of various industries. With years of experience under their belt, ED Stainless provides dependable and long-lasting solutions for a diverse array of sectors, including petrochemical, oil & gas, power generation, and construction. By merging cutting-edge manufacturing techniques with strict quality control, ED Stainless guarantees that each Stainless Steel 304H Nut performs exceptionally well and resists corrosion, even in high-temperature and high-stress situations.
The Stainless Steel 304H Nuts produced by ED Stainless are made from a high-carbon version of 304 stainless steel, making them perfect for high-temperature applications. Their typical chemical makeup features 18–20% Chromium, 8–11% Nickel, and a higher carbon content (0.04–0.10%) that enhances strength at elevated temperatures. These nuts boast impressive mechanical properties, including a tensile strength of about 515 MPa, a yield strength of 205 MPa, and an excellent elongation of around 40%. Such characteristics make 304H Nuts ideal for tough environments where mechanical performance and corrosion resistance are crucial, particularly in structural and pressure-containing systems.
| Specifications | DIN, ISO ,JIS ,GB, IS, BS, ASTM |
| Standard | ASTM A193 / A194, ASME SA193 / SA194 |
| Size | M2 – M100 |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions Standard | DIN: DIN931, 933, 934, 7991, 976, 125 ISO: ISO 4033, 4032 ASME B18.5, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304H | min. | 0.04 | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.10 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | – | 10.5 | – | |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304H | 515 | 205 | 40 | 92 | 201 |
Contact us to get a quick quote for your requirement.

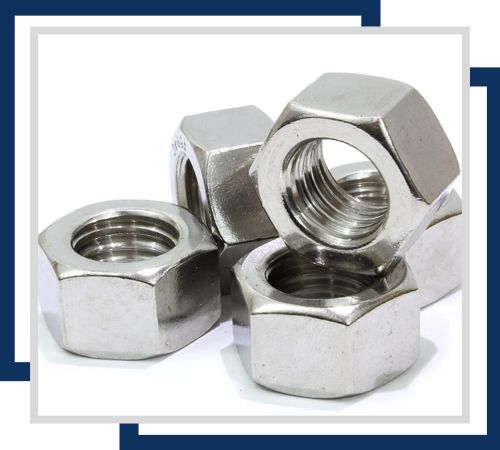

Stainless Steel 304H Nuts Designed for high-stress environments, these nuts provide excellent corrosion resistance and durability. Available in sizes ranging from M6 to M36, they are ideal for chemical, petrochemical, and power generation applications.

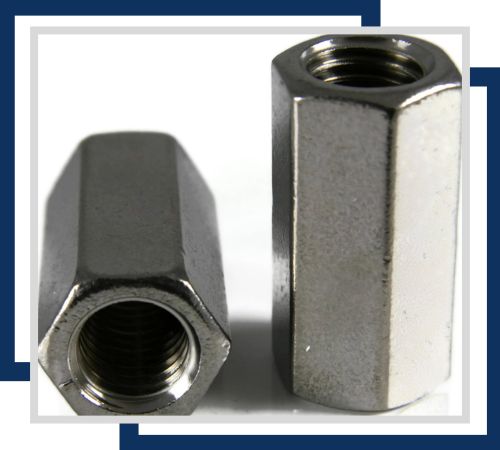

Stainless Steel 304H Coupling Nuts Ideal for joining threaded rods, these coupling nuts offer high strength and temperature resistance. Available in sizes from M6 to M36, they are suitable for industrial applications such as piping systems and machinery assemblies.

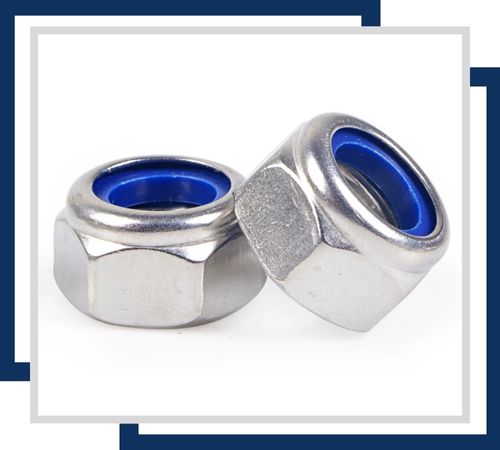

These nuts feature a nylon insert for secure fastening and vibration resistance. Available in sizes from M6 to M24, they ensure a tight fit and prevent loosening, making them perfect for machinery and automotive applications.

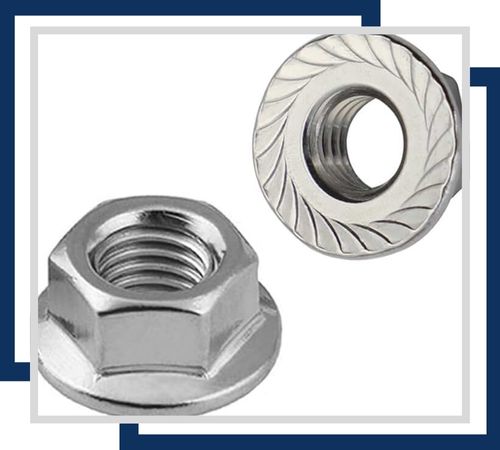

Featuring integrated flanges for extra support, these SS 304H nuts provide enhanced load distribution and stability. Available in sizes from M6 to M24, they are ideal for use in heavy-duty equipment and construction projects.

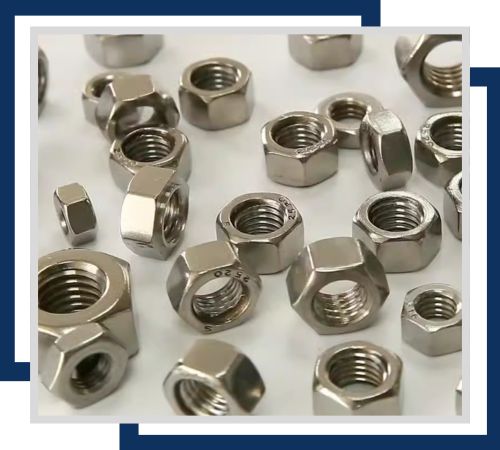

Offering superior strength for heavy-duty applications, these SS 304H nuts are designed for high-pressure and high-temperature environments. Available in sizes from M6 to M36, they are perfect for boilers and heat exchangers.

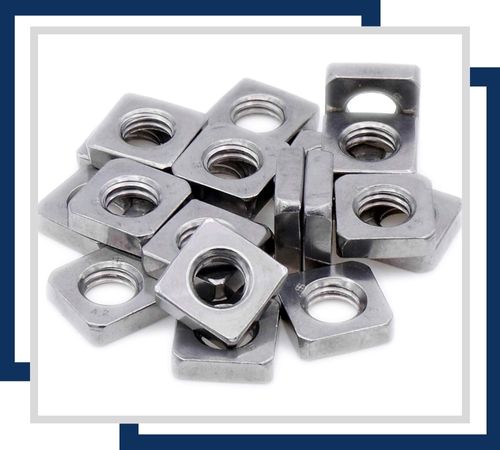

These square nuts provide a large surface area for effective torque application. Available in sizes from M6 to M24, they are ideal for secure fastening in tight spaces within industrial machinery and structural applications.
Ed Stainless is committed to providing high-quality Stainless Steel 304H Nuts with consistent performance through a wide range of tests. These include hardness testing, spectro analysis, PMI, and flaring tests. We also do micro and macro tests, pitting resistance tests, and IGC tests to ensure the excellent quality of every product we deliver. Along with the above-mentioned stringent testing processes, we are giving full documentation like commercial invoices and detailed packing lists with net and gross weights, box numbers, and labels. Moreover, our legalized or attested Certificate of Origin and Third-Party Inspection Certificates make sure that there is total assurance of our commitment towards delivering superlative products and a guaranty of unforgettable customer satisfaction.
ED Stainless’s Stainless Steel 304H Nuts are extensively utilized in industries that demand high-temperature strength and corrosion resistance. You’ll find them in applications like heat exchangers, boilers, pressure vessels, and piping systems within the chemical, petrochemical, and oil & gas sectors. Their durability and resistance to oxidation make them a perfect fit for thermal processing equipment and refinery systems. In power plants and nuclear facilities, these nuts are essential in structural assemblies that constantly face heat and pressure. ED Stainless’s 304H Nuts deliver the reliability and mechanical performance necessary for challenging industrial and engineering applications.
