Ed Stainless is a reputable manufacturer and supplier of top-notch Stainless Steel 310/310S Forged Fittings based in Houston, Texas, USA. With years of expertise and a dedication to quality, Ed Stainless caters to a variety of industries, providing precision-engineered forged fittings that are built to last and perform reliably even in extreme conditions. Our products are crafted to meet international standards and are well-known for their outstanding performance, resistance to corrosion, and ability to withstand high temperatures. As a leading name in Texas, Ed Stainless guarantees timely delivery, competitive pricing, and exceptional customer service, making us the go-to partner for stainless steel forged fittings throughout the USA.
The Stainless Steel 310/310S Forged Fittings from Ed Stainless are primarily composed of 25% chromium and 20% nickel, which gives them remarkable resistance to oxidation and high temperatures. The 310S variant, being the low-carbon option, provides enhanced weldability and minimizes carbide precipitation. These fittings boast a tensile strength of about 515 MPa and a yield strength of roughly 205 MPa, along with an elongation of 40% and a hardness of around 217 Brinell. These impressive mechanical properties make our fittings perfect for high-temperature and corrosive settings, ensuring a long service life and reliable performance in demanding industrial applications.
Specifications : ASTM A182 & ASME SA182
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 310 | 0.015 max | 2.0 max | 0.15 max | 0.020 max | 0.015 max | 24.00 – 26.00 | 0.10 max | 19.00 – 21.00 | 54.7 min |
| SS 310S | 0.08 max | 2.0 max | 1.00 ma | 0.045 max | 0.030 max | 24.00 – 26.00 | 0.75 max | 19.00 – 21.00 | 53.095 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Contact us to get a quick quote for your requirement.
We ensures that it has the high quality standards with respect to Stainless Steel 310/310S forged fittings by using rigorous testing and certification processes. Every product under goes detailed check-up including dimensional checks, mechanical property tests, and assessment of corrosion resistance. Our fitting is certified for relevant industry standards, which guarantees superior performance and reliability across various applications.

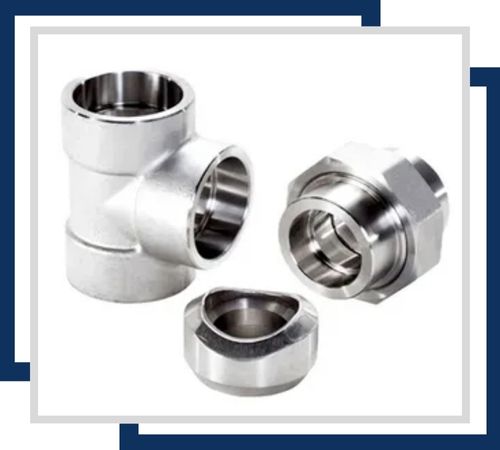

These fittings are highly resistant to oxidation and corrosion at elevated temperatures. They are designed for high-pressure applications and come in various sizes typically ranging from 1/2 inch to 4 inches. Socket weld fittings are ideal for applications requiring a strong, leak-proof connection.

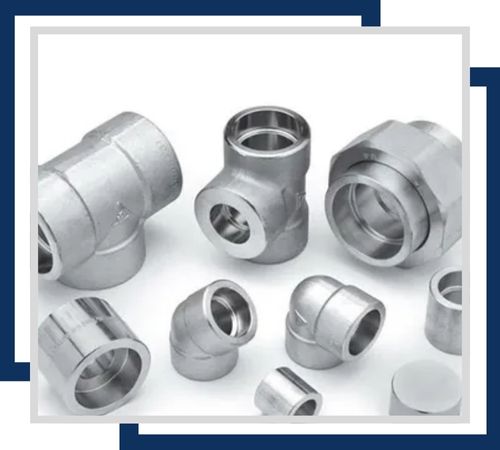

Threaded fittings in SS 310 offer excellent resistance to oxidation and corrosion, especially in high-temperature environments. Sizes generally vary from 1/8 inch to 4 inches. They are used for connecting pipes with threads, making them suitable for pressure-tight joints.

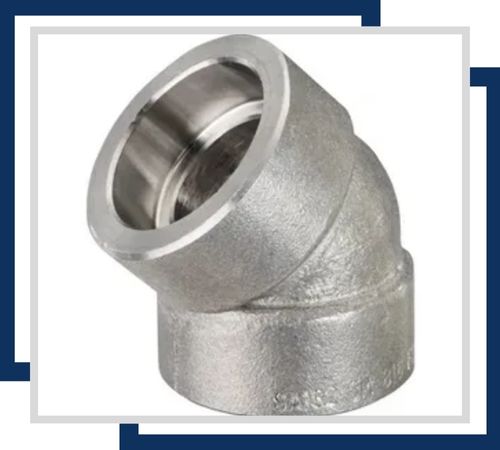

These elbows provide excellent corrosion resistance and are ideal for applications involving high temperatures. They are available in sizes from 1/2 inch to 4 inches and are used to change the direction of flow in piping systems by 45 degrees.

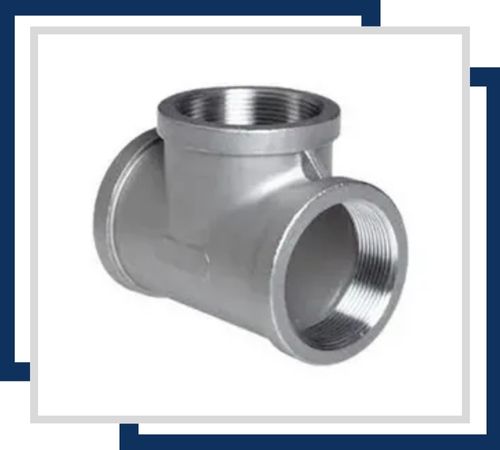

Threaded tees made of SS 310 exhibit superior resistance to high-temperature oxidation and corrosion. Common sizes range from 1/4 inch to 4 inches. These tees are used to branch out pipelines and provide a secure connection in high-pressure systems.

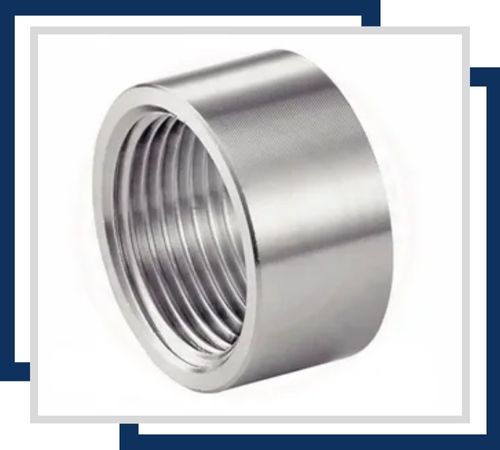

Offering excellent corrosion resistance, threaded half couplings are used to connect two pipes in high-temperature applications. Sizes typically range from 1/8 inch to 4 inches. They are ideal for creating a connection in the middle of a pipe.

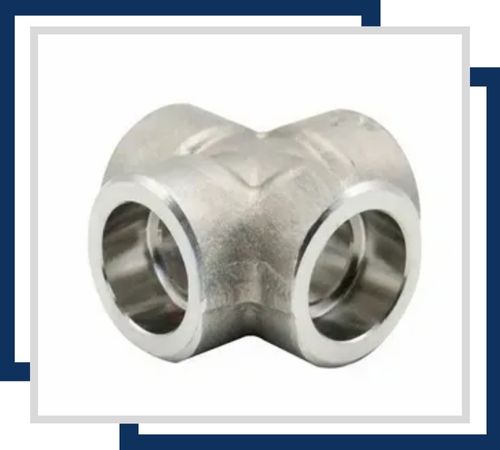

Socket weld crosses in SS 310S provide high resistance to oxidation and are used in high-pressure systems. They are available in sizes from 1/2 inch to 4 inches and allow for the intersection of four pipes, ensuring a robust connection.
Manufactured by Ed Stainless in Texas, our Stainless Steel 310/310S Forged Fittings are extensively utilized in high-temperature environments thanks to their exceptional heat and oxidation resistance. They are commonly found in heat exchangers, furnace components, oil and gas processing, petrochemical facilities, and thermal processing industries. Their strong mechanical strength and corrosion resistance make them ideal for use in power plants, food processing, and marine applications. Ed Stainless fittings guarantee leak-proof connections and are suitable for both high-pressure and high-temperature systems, providing unmatched reliability and safety. Our products are customized to meet the unique requirements of each industry.
