Ed Stainless stands out as a top-notch manufacturer and supplier of high-quality Stainless Steel 310H Forged Fittings right here in Houston, Texas. With a solid dedication to excellence and years of experience under our belt, we focus on crafting durable, high-performance fittings that adhere to international standards. Our wide range of products is designed for various industrial applications, boasting impressive corrosion resistance and strength. At Ed Stainless, we put customer satisfaction at the forefront, ensuring timely deliveries and exceptional technical support. Our cutting-edge facility, combined with a skilled workforce, guarantees precision manufacturing, making us a trusted name for Stainless Steel 310H Forged Fittings throughout Texas and beyond.
When it comes to our Stainless Steel 310H Forged Fittings, they primarily consist of chromium (24-26%) and nickel (19-22%), with a bit of extra carbon content (up to 0.10%) to enhance high-temperature strength. These fittings showcase remarkable mechanical properties, including a tensile strength of around 515 MPa, yield strength of 205 MPa, and an elongation of 40%. Their outstanding resistance to oxidation and structural integrity at high temperatures make them perfect for tough environments. At Ed Stainless in Texas, we ensure that all our forged fittings comply with ASTM A182 standards for both performance and reliability.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 310H | 0.04 – 0.10 | 2.0 max | 1.00 max | 0.045 max | 0.030 max | 24.00 – 26.00 | – | 19.00 – 21.00 | 53.885 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Contact us to get a quick quote for your requirement.
We ensures the highest standards for its stainless steel 310H lattice fittings through stringent testing and certification programs. Extensive testing of each component is carried out, including dimensional testing, mechanical testing and corrosion resistance evaluation. Certifications such as Mill Test Reports (MTR) and ISO compliance ensure the reliability and performance of each fitting.

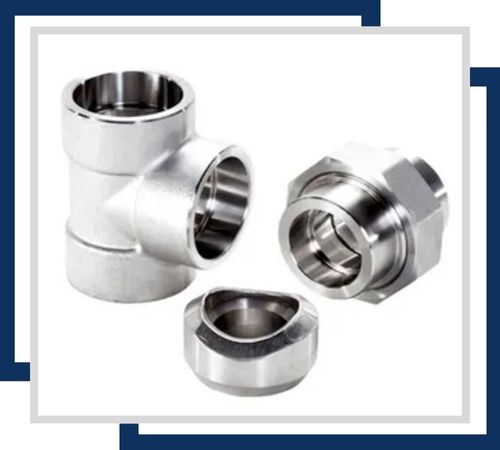

Corrosion-resistant and designed for high-temperature applications, these fittings are ideal for joining pipes. Sizes typically range from 1/4 inch to 4 inches. Dimensions vary based on pipe size, with standard schedules available.
Offering excellent corrosion resistance, these fittings are used where welding is impractical. Common sizes range from 1/8 inch to 2 inches. They are available in various threads per inch, adhering to ANSI standards.

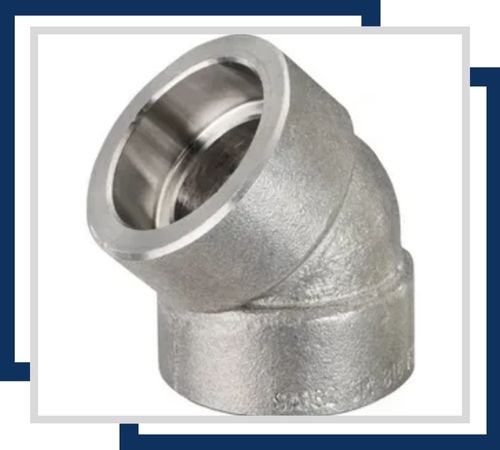

This elbow provides high resistance to oxidation and corrosion at elevated temperatures. Available in sizes from 1/2 inch to 4 inches, it helps in redirecting flow at a 45-degree angle. Dimensions conform to ANSI/ASME standards.

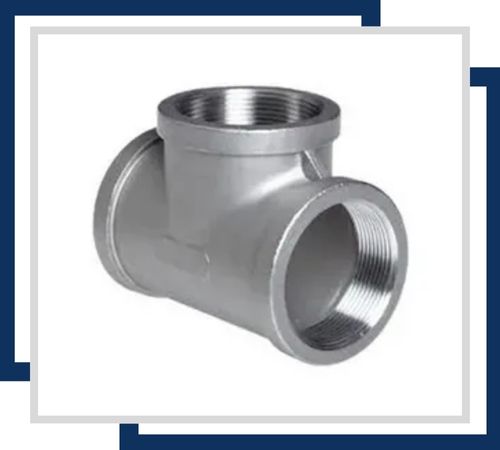

Corrosion-resistant and durable, the threaded tee connects three pipes. Sizes generally range from 1/4 inch to 4 inches, with dimensions following standard pipe thread specifications for ease of connection.

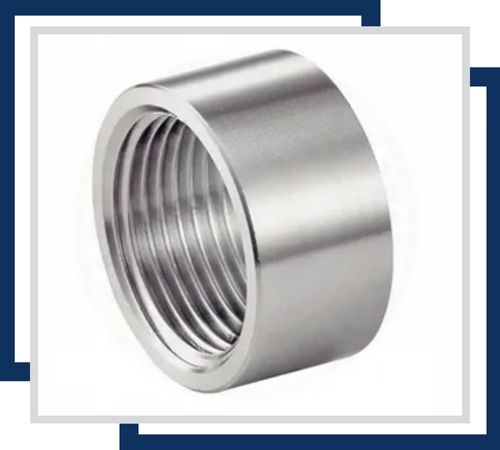

Offering superior resistance to high temperatures and corrosion, this coupling is used for pipe connections. Sizes typically range from 1/4 inch to 2 inches. It features internal threads that match standard pipe sizes.

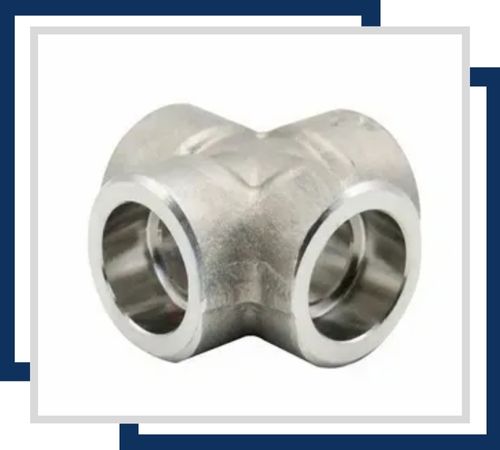

With excellent corrosion resistance, the socket weld cross allows for the connection of four pipes at a single junction. Common sizes range from 1/2 inch to 2 inches, with dimensions based on standard pipe specifications.
Our Stainless Steel 310H Forged Fittings are widely utilized in high-temperature and high-pressure settings, thanks to their exceptional heat resistance and mechanical strength. You’ll find them in petrochemical plants, power generation units, thermal processing, heat exchangers, and furnace components. They’re also a great fit for oil and gas refineries, chemical processing, and marine environments. The impressive corrosion resistance and durability of SS 310H make them ideal for challenging operational conditions. At Ed Stainless in Texas, we provide customized solutions to meet a variety of industrial needs, ensuring quality and performance in every application.
