Ed Stainless Manufacturer and Suppliers, based in Houston, Texas, is a trusted name in the stainless steel industry, specializing in the production and supply of high-quality Stainless Steel 420 Pipes. Renowned for its durability, corrosion resistance, and excellent mechanical properties, SS 420 is ideal for demanding industrial applications. Ed Stainless offers precision-engineered pipes that meet national and international standards, serving clients across oil & gas, petrochemical, and manufacturing sectors. With a commitment to innovation, timely delivery, and exceptional quality, Ed Stainless stands out as a leading Stainless Steel 420 Pipes Manufacturer in Texas, USA.
As a prominent Stainless Steel 420 Pipes Manufacturer in Texas, USA, Ed Stainless delivers pipes composed primarily of chromium (12–14%), carbon (0.15%), manganese, silicon, and trace elements. This martensitic grade offers high hardness and good corrosion resistance. Mechanical properties include a tensile strength of up to 700 MPa, yield strength around 345 MPa, and excellent wear resistance. Heat treatability enhances its strength and hardness. These attributes make SS 420 pipes ideal for applications requiring strength, moderate corrosion resistance, and machinability under various thermal conditions.
| Item | Stainless Steel 420 Pipe |
| Standard | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
| Type | Seamless / ERW / Welded / Fabricated / CDW |
| Outer Diameter Size | SEAMLESS – 1/2″ NB TO 18″ NB WELDED / ERW- 1″ NB TO 16″ NB EFW – 8″ NB TO 110″ NB |
| Form | Round Pipes, Square Pipes, Rectangular Pipe, “U” Shape Pipes, Hydraulic Pipes |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size End: Plain End, Beveled End, Treaded |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Testing | Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiographic Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| Fe | C | Mn | Si | Cr | Ni* | Mo* | P | S | Cu* | Al* | Sn* |
|---|---|---|---|---|---|---|---|---|---|---|---|
Balance | 0.15-0.40% | 1.00% max | 1.00% max | 12.00-14% | 0.50% max | 0.50% max | 0.04% max | 0.03% max | 0.50% max | 0.15% max | 0.05% max |
| Property | Metric |
|---|---|
Density | 7.74 g/cm3 |
Elastic Modulus | 200 GPa |
Electrical Resistivity | 0.55 x 10-7 .m |
Tensile Strength | 655 MPa |
Yield strength (Temper: Annealed) Minimum 0.2% offset | 40,000 psi |
Yield Strength (Temper: Hardened + 350°F) Typical 2% offset | 195,000 psi |
Elongation (% in 50 mm) | 25 |
Brinell Hardness (HB) | 241 max |
Contact us to get a quick quote for your requirement.
We ensures the highest quality of stainless steel 420 pipes through rigorous testing procedures, including chemical composition analysis, mechanical property testing and surface quality testing Every pipe is certified with industry standards, assuring durability, strength and corrosion resistance to a variety of industrial applications

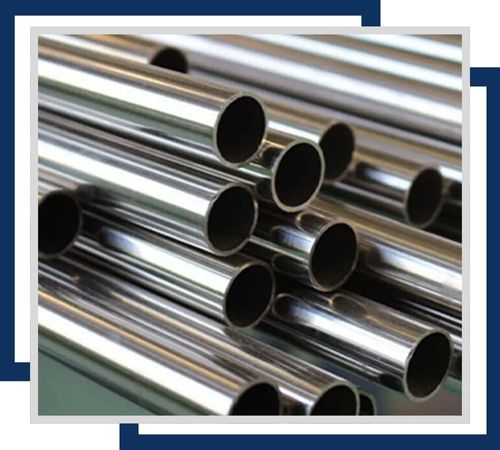

Stainless Steel 420 ERW (Electric Resistance Welded) pipes are welded from stainless steel strips, offering high hardness and wear resistance, ideal for cutlery, surgical instruments, and high-strength applications.

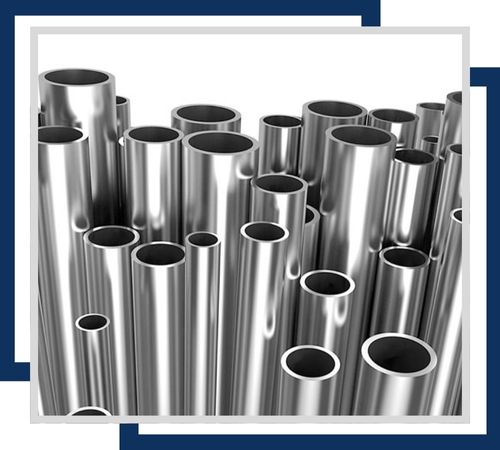

Stainless Steel 420 EFW (Electric Fusion Welded) pipes are made by fusing stainless steel plates, providing high-strength, wear-resistant pipes suitable for industrial tools and components requiring durability and hardness.

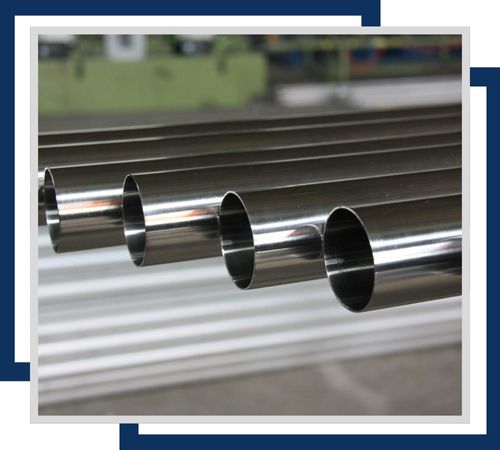

Stainless Steel 420 LSAW (Longitudinally Submerged Arc Welded) pipes are produced using submerged arc welding, offering strength and hardness for large-diameter applications, including industrial and high-stress environments.

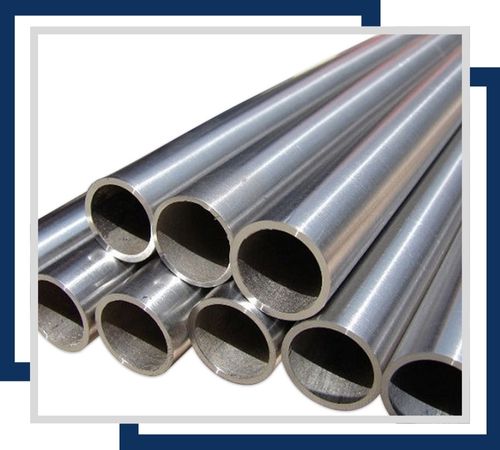

Stainless Steel 420 Seamless pipes are manufactured without welding, providing uniform strength and high hardness, ideal for cutlery, surgical tools, and applications requiring excellent wear resistance and durability.

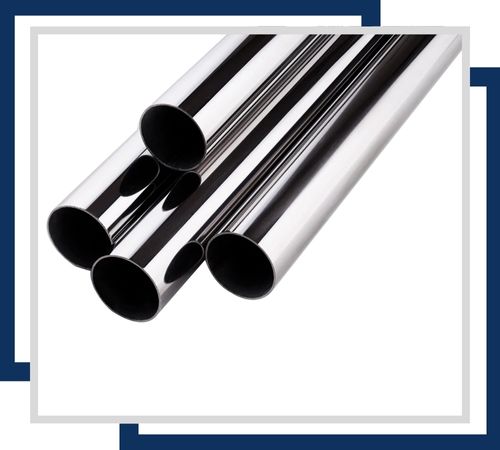

Stainless Steel 420 Welded pipes are made by welding stainless steel sections, offering high hardness and wear resistance, suitable for industrial applications, cutlery, and tools requiring enhanced durability.

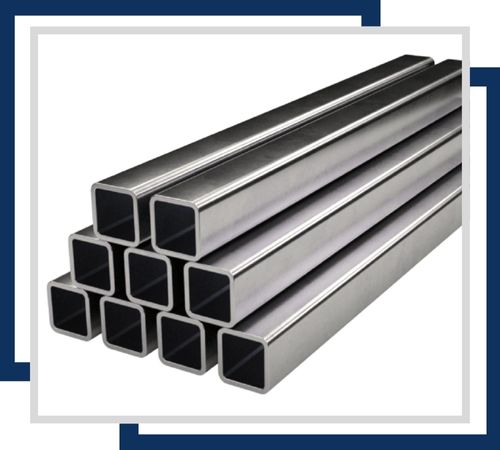

Stainless Steel 420 Square pipes feature a square cross-section, providing structural support and high hardness, ideal for use in applications requiring durability, wear resistance, and a unique design.
Ed Stainless, a leading Stainless Steel 420 Pipes Manufacturer in Texas, USA, supplies pipes widely used across industries due to their strength and corrosion resistance. SS 420 pipes are ideal for use in medical instruments, food processing equipment, pump shafts, valve components, and cutlery manufacturing. Their hardness and polishability also make them suitable for decorative and structural applications. In the oil & gas and petrochemical sectors, these pipes are utilized in high-wear environments requiring long-lasting performance. Ed Stainless ensures every pipe meets rigorous industry specifications, supporting both standard and custom-engineered solutions for diverse operational needs.
