Ed Stainless supplies Dairy Elbows and Bends, crucial fittings for guiding the flow of liquids and gases in dairy and food processing systems. These are fittings used to cause pipes to change direction smoothly and efficiently, providing that flow is not hindered. With high-quality stainless steel construction, Dairy Elbows and Bends ensure superior corrosion resistance, allowing them to withstand the rigors of dairy processing plant conditions. They come with a smooth finish that facilitates easy cleaning and minimizes contamination risks, making them suitable for use where hygiene and sanitary conditions are critical.
Dairy Elbows and Bends are generally produced from high-grade stainless steel, usually 304 or 316L, ensuring high resistance to corrosion, pitting, and oxidation. They are made to resist mechanical stresses in pipe systems with a tensile strength of 500 MPa to 800 MPa. The fittings have a smooth surface finish to ensure easy cleaning and bacterially resistant, and they meet sanitary requirements. They are designed to keep a leak-free seal, providing steadying flow and reliability in the passage of dairy products, juices, and other liquid foods in processing systems.
Sizes : 1/2”-4”, DN 10 – DN 100
Outside Diameter : 1/4” O.D. – 8” O.D., 1/4” N.B. – 8” N.B.
Thickness : 1.0 mm to 5 mm, 12 SWG, 14SWG, 16 SWG, 18SWG, 20 SWG
Finish : Mechanical Polish, Electro Polished, Non Electro Polished, 320 Grit, 400 Grit, 500 Grit, 800 Grit
Standards : DIN / TRICLOVER / IDF / SMS / BSP / NPT
Grade : SS 304, 304L, 316, 316L
Contact us to get a quick quote for your requirement.

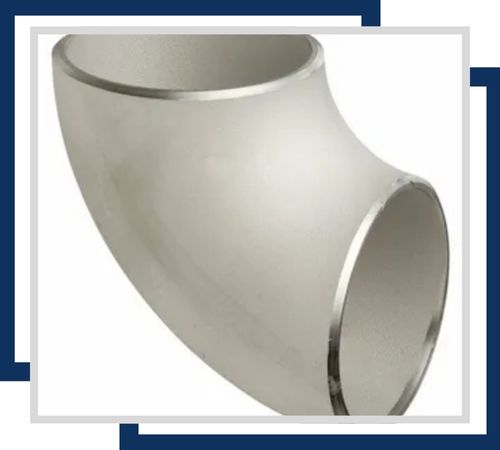

This elbow fitting, made from SS 304L, is designed for dairy applications, ensuring durability and easy cleaning. It features sizes typically 1″ to 6″ and provides excellent corrosion resistance against acidic environments. Ideal for sanitary systems, it meets rigorous hygiene standards.

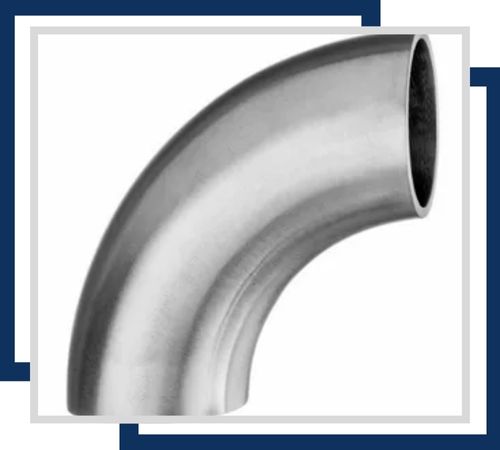

The SS 90 Degree Dairy Elbow offers a 90-degree bend, commonly available in sizes from 1″ to 4″. Made from stainless steel, it delivers superior corrosion resistance and maintains smooth flow in dairy pipelines. Its design ensures efficient transitions and minimal turbulence.

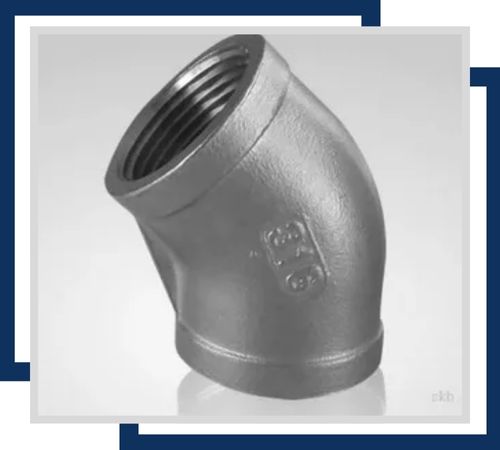

Constructed from stainless steel, the SS 45 Deg Dairy Elbow provides a 45-degree angle for smoother directional changes in dairy processing systems. Available from 1″ to 4″, it offers high corrosion resistance and is ideal for maintaining fluid integrity.

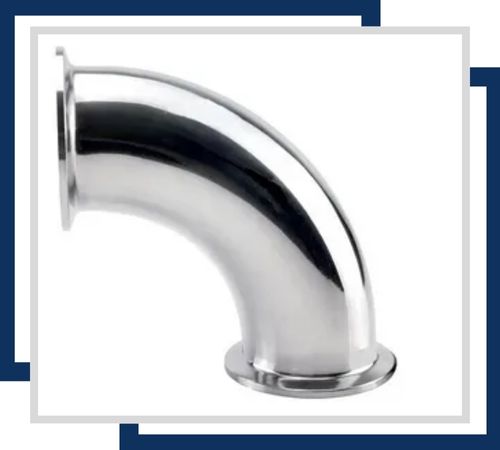

The SS 180 Degree Dairy Bend is a U-shaped fitting, available from 1″ to 6″. This bend is crafted from stainless steel, offering excellent corrosion resistance and durability. It ensures a complete reversal of flow direction with minimal disruption.

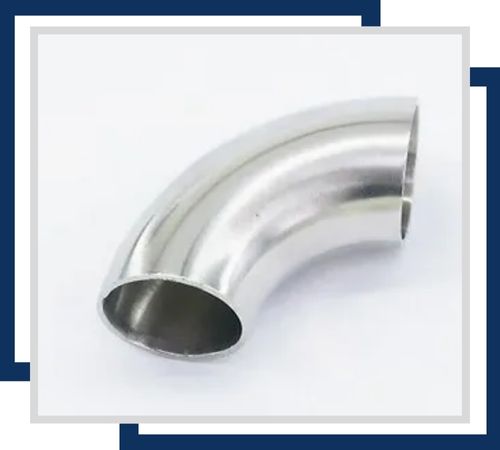

The Stainless Steel Dairy Bend Elbow is designed for seamless transitions in dairy applications and is available in sizes from 1″ to 4″. Made from high-quality stainless steel, it features outstanding corrosion resistance and is easy to clean, supporting high hygiene standards.

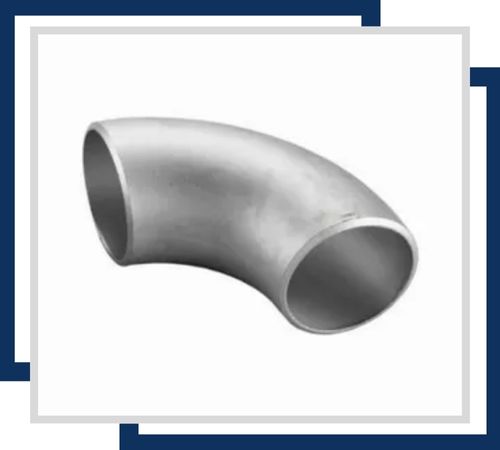

The SS 316L Dairy Elbow is crafted from 316L stainless steel, known for superior corrosion resistance in harsh environments. Typically available in sizes from 1″ to 6″, it offers excellent durability and is suitable for high-purity dairy processing systems.
Dairy Bends and Elbows are employed in food processing systems, beverage systems, and dairy systems to alter the flow direction in piping networks. They play a crucial role in milk processing, pasteurization processes, tank fittings, and fluid food product pipeline systems that transmit liquid food products such as yogurt, cream, and juices. The fittings are created to provide smooth flow, avoid leaks, and facilitate the hygienic transfer of fluids. They are employed in building and repairing dairy processing facilities, where clean, efficient, and contamination-free pipelines need to be maintained to adhere to food safety standards.
