Ed Stainless is a recognized Stainless Steel 253MA Flanges manufacturer and supplier in Houston, USA. For high-temperature applications, our 253MA flanges provide superior heat resistance, oxidation protection, and strength. Produced according to international quality and size standards, they suit demanding industrial purposes. Precision machining and assured stock availability are ensured by our team to facilitate quick and smooth delivery. With an emphasis on customer delight and consistency of performance, Ed Stainless has emerged as a go-to source for SS 253MA flanges in power generation, chemical, and petrochemical sectors.
SS 253MA Flanges contain 21% chromium, 11% nickel, and rare earth metals additions along with nitrogen, providing resistance to oxidation and high-temperature strength. Typical yield strength is about 310 MPa and tensile strength is 600 MPa. The material has good creep strength and oxidation resistance up to 1100°C. Silicon and cerium addition enhances heat resistance, while the austenitic microstructure provides excellent weldability and formability. These attributes qualify 253MA flanges as suitable for thermal and high-stress industrial applications.
| Specifications | ASTM A182 / ASME SA182 |
| Flange size range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Flanges Dimensions | ANSI/ ASME B16.5, B16.47 A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Flanges Standard | ANSI Flanges, AWWA Flanges, ASME Flanges, BS 10 Table D Flanges, Table E Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges. |
| Pressure Class / Rating | Class 150 LBS, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Large Male-Female (LMF), Flat Face (FF), Small Male-Female (SMF), Lap-Joint Face (LJF), Small Tongue, Large Tongue & Groove |
| Specialized manufacturer of | Weld Neck Ring Flanges (WNRF), Slip-On Ring Flanges (SORF), Blind Ring Flanges (BLRF), Socket Weld Ring Flanges (SWRF), Lap Joint Ring Flanges (LJRF), Ring Type Joint Flanges (RTJF), Large Diameter Flanges, Orifice Flanges |
| Grade | C | Mn | Si | S | Fe | Ni | Cr | P | Ce |
| Stainless Steel 253MA | 0.05-0.10 max | 0.80 max | 1.40-2.00 | 0.030 max | Balance | 10.0-12.0 | 20.0-22.0 | 0.040 max | 0.03-0.08 |
| Tensile Strength | Elongation |
| 90,000-114,000 | 2 %F |
Contact us to get a quick quote for your requirement.

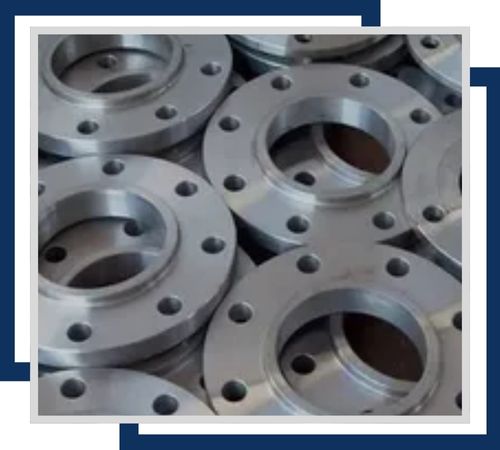

SS 253 MA Socket Weld Flanges provide strong, high-temperature-resistant connections for piping systems. Made from stainless steel, they offer excellent corrosion resistance and durability for demanding industrial applications.
SS 1.4835 Ring Type Joint Flanges are designed for high-pressure and high-temperature applications. Made from durable stainless steel, they offer superior resistance to corrosion and ensure a tight, leak-proof seal.
Stainless Steel 253 MA Spectacle Blind Flanges are durable, high-temperature-resistant components used to block off piping systems. They offer exceptional resistance to corrosion, ensuring reliable performance in harsh industrial environments.
We conduct a wide range of rigorous in-house tests including mechanical, chemical and dimensional evaluations. To ensure the top-notch quality of our Stainless Steel 253MA Flanges. Every flange undergoes stringent quality control measures for ensuring that they meet the industry standards. Besides, we focus on quick delivery. So that our clients get their Stainless Steel 253MA Flanges on time without affecting the quality of the product and performance. We ensure and our endeavor to provide superior quality results constantly in the competitive world.
SS 253MA Flanges are well suited for application in high-temperature applications like furnaces, heat exchangers, kiln linings, and incinerators. Their high oxidation as well as creep resistance qualifies them for use in power plants, petrochemical plants, and steel processing units. They are generally utilized in applications where thermal cycling and stress resistance are of main significance. Ed Stainless provides an assortment of flanges such as slip-on, weld neck, blind, and socket weld, which have been customized for the needs of every industrial environment. With their great strength-to-weight ratio and heat endurance, they are the first choice for engineers in applications that require high performance.
