Ed Stainless is your go-to manufacturer and supplier of top-notch Stainless Steel 316Ti Flanges, proudly based in Houston, USA. With years of experience under our belt and a strong commitment to quality, we focus on providing durable, precision-engineered flanges that excel in high-performance industrial settings. Our Stainless Steel 316Ti Flanges are celebrated for their outstanding corrosion resistance, remarkable strength, and impressive longevity, even in the toughest conditions. Supported by a talented team and cutting-edge manufacturing technology, Ed Stainless guarantees timely deliveries, competitive pricing, and strict adherence to international quality standards, making us the top choice for stainless steel flange needs across a variety of industries.
These Stainless Steel 316Ti Flanges are made up of iron, 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and titanium, which enhances their stability at high temperatures. The titanium serves as a stabilizing agent, preventing carbide precipitation during the welding process. These flanges boast excellent corrosion resistance, particularly in chloride and acidic environments. On the mechanical side, 316Ti flanges deliver a tensile strength of about 515 MPa, a yield strength of around 205 MPa, and an elongation of 35%. They maintain their structural integrity even under high stress and temperature, making them perfect for high-pressure and corrosive applications across numerous industries.
| Specifications | ASTM A182 / ASME SA182 |
| Size | 1/8″ NB TO 48″ NB |
| Standards | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grades | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| ELEMENT | MIN | MAX |
|---|---|---|
| C | – | 0.08 |
| Si | – | 0.75 |
| Mn | – | 2 |
| P | – | 0.45 |
| S | – | 0.03 |
| Cr | 16 | 18 |
| Mo | 2 | 3 |
| N | – | 0.1 |
| Fe | Balance | |
| Ni | 10 | 14 |
| Ti | 5x%(C+N) | |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We offers the best quality Stainless Steel 30TI flanges of superior quality test for best products and performance at an international standards level with due testing and full specification. Being a certified supplier, we certify every batch based on traceable documents. To make the modern products with no corrosion, robust, and quality mechanical properties to give you extra value, we used the modern world’s technology at a stringent and tight quality-control measure. Ed Stainless commits to deliver the highest level of flanges that could ensure functionality and safety.

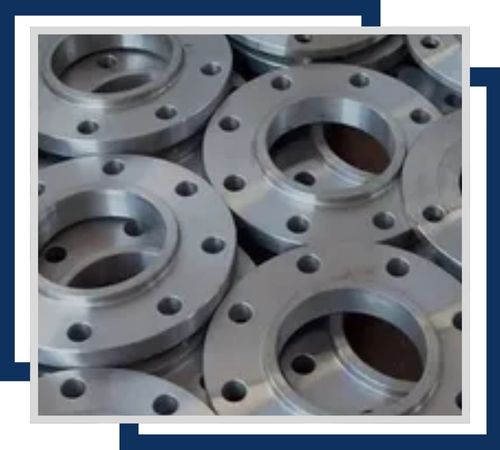

Featuring internal threads for easy attachment to pipes with matching threads, these flanges are typically available from 1/2″ to 6″. Their titanium content enhances corrosion resistance, particularly in aggressive chemical environments

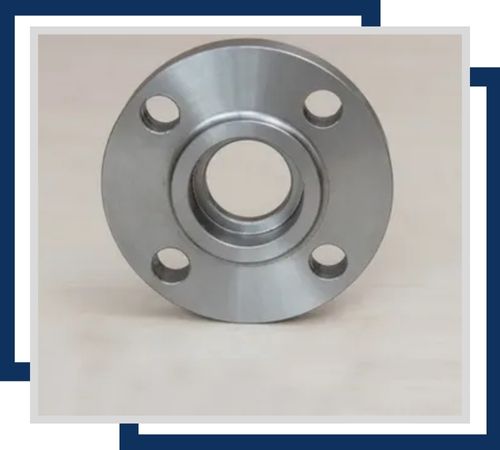

Designed for high-pressure systems, these flanges are inserted into a socket and welded in place. They come in sizes from 1″ to 24″ and offer robust corrosion resistance due to the 316Ti alloy’s resistance to oxidation and chloride stress.

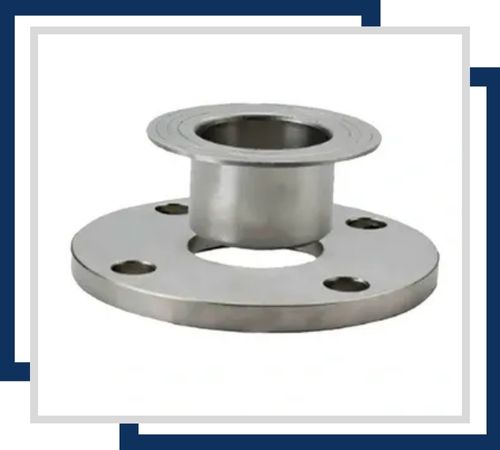

These flanges are used with a loose backing flange and provide a smooth, corrosion-resistant surface for easy alignment and maintenance. They are available in sizes from 1″ to 24″ and are highly resistant to rust and corrosion, suitable for various industries.
Stainless Steel 316Ti Flanges are widely utilized in various sectors due to their strength, heat resistance, and corrosion durability. You’ll find them in chemical processing plants, power generation facilities, oil and gas pipelines, food processing equipment, marine environments, and pharmaceutical industries. These flanges are particularly suited for high-temperature applications and systems that handle corrosive media like acids, chlorides, and saline environments. Plus, their excellent weldability and durability make them a favored choice for both pressurized and non-pressurized connections in piping systems.
