Ed Stainless, a well-respected manufacturer and supplier based in Houston, USA, has made a name for itself in the industry by specializing in high-quality Stainless Steel 304 Flanges. Located in Texas, Ed Stainless is known for its precision-engineered flanges that adhere to strict industry standards, ensuring they are durable and perform well in a variety of applications. With a strong commitment to customer satisfaction, innovation, and timely delivery, Ed Stainless has positioned itself as a top player in the stainless steel market. Their skilled team employs cutting-edge technology and rigorous quality control measures to produce flanges that promise strength, corrosion resistance, and reliability for a range of industrial needs.
The Stainless Steel 304 Flanges produced by Ed Stainless in Texas are made up of 18-20% chromium and 8-10.5% nickel, along with trace amounts of carbon, manganese, silicon, and phosphorus. This unique blend provides outstanding corrosion resistance and formability. On the mechanical side, these flanges boast a tensile strength of about 75,000 psi and a yield strength of around 30,000 psi. They typically have an elongation percentage that exceeds 40%, which ensures they remain flexible and tough. These characteristics make the flanges perfect for handling high pressure, temperature fluctuations, and corrosive environments in various industrial settings.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ANSI/ASME B16.5, B 16.47 A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class/Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
Ed Stainless follows high-quality standards for its Stainless Steel 304 Flanges. Every flange is thoroughly tested for dimensional checks, visual inspections, and non-destructive testing such as ultrasonic and magnetic particle tests. In addition to that, the flanges are even submitted to mechanical testing in terms of tensile, hardness, and impact tests to confirm their strength and durability. All the products have the relevant certificates. They also carry material test reports (MTRs) and meet international standards. This will provide reliable performance in various industrial applications.

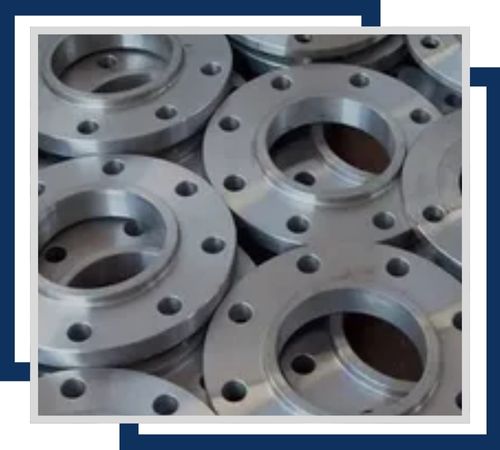

SS 304 long weld neck flanges are designed for high-stress applications, featuring a long tapered neck that provides a strong, continuous weld connection. They offer excellent strength and resistance to leakage.

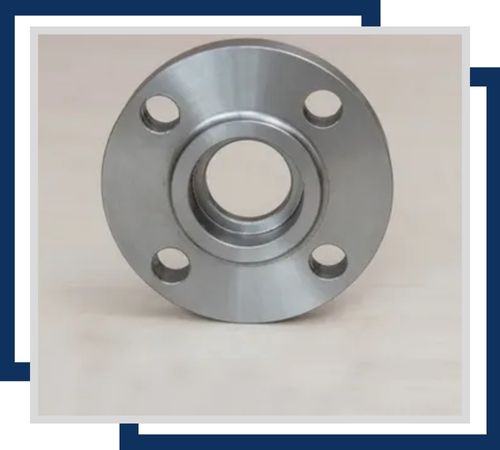

SS 304 lap joint flanges are versatile components designed for ease of assembly and disassembly. They feature a loose fit, allowing for easy alignment and maintenance, with excellent resistance to corrosion.

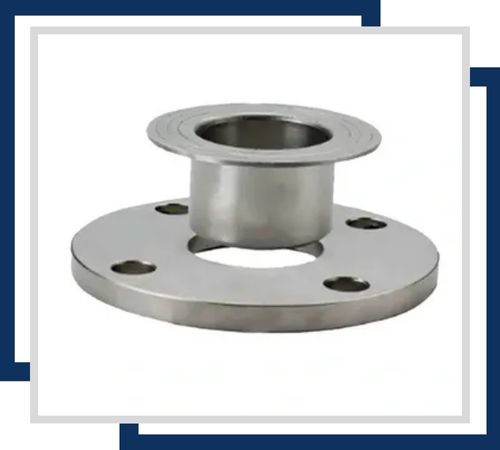

SS 304 reducing flanges are used to connect pipes of different diameters, providing a smooth transition between sizes. They ensure a secure, leak-proof joint while offering strong corrosion resistance and durability.
Ed Stainless’s Stainless Steel 304 Flanges are widely used across numerous industries thanks to their durability and resistance to corrosion. You’ll often find them in oil and gas pipelines, chemical processing plants, power generation facilities, food processing operations, and pharmaceutical manufacturing. These flanges securely connect pipes, valves, and other equipment, creating strong, leak-proof joints. Their ability to resist oxidation and harsh chemicals makes them suitable for both indoor and outdoor applications. Moreover, Stainless Steel 304 flanges are particularly popular in marine environments and water treatment facilities, where reliability and a long service life are essential for maintaining operational efficiency and safety.
