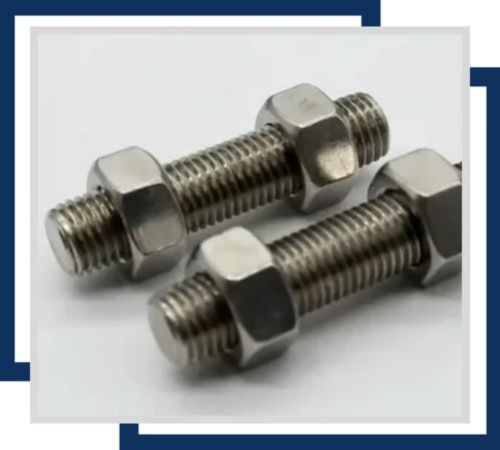

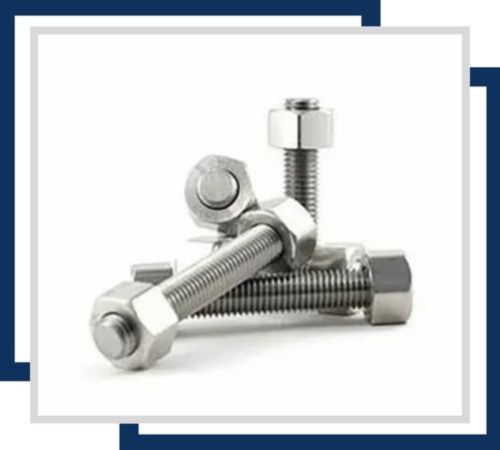

Ed Stainless is a renowned manufacturer and supplier of Houston-based Stainless Steel 202 Stud Bolts. These study bolts are used for secure fastening in structural and general-purpose applications in which average corrosion protection is feasible. Our SS 202 stud bolts are produced with exact dimensions and supplied in both partial-thread and full-thread forms. They provide great strength and machinability and are therefore suitable for various mechanical and construction conditions. Ed Stainless ensures every product meets industry standards, which provides uniform quality and prompt delivery to customers in construction, automotive, and engineering industries.
SS 202 Stud Bolts consist of 17–19% chromium, 4–6% nickel, and 7.5–10% manganese. This austenitic grade offers high strength and satisfactory wear resistance, with tensile strength of around 515 MPa and yield strength of about 275 MPa. The bolts also resist good elongation and fair hardness (Brinell 230 max). Though not appropriate for extremely corrosive or marine conditions, SS 202 offers satisfactory resistance in normal atmospheric conditions. These mechanical characteristics make it the best for light to medium-duty fastening in structure and general industrial uses.
| Specification | Stainless Steel 202 Stud Bolts |
| Standard | all International Standards and ASTM, DIN, BS |
| Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 202 Stud Bolts | 0.08 max | 2.0 max | 0.75 max | 0.045 | 0.030 | 18.0-20.0 | – | 8.0-10.5 | 0.10 |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 202 Stud Bolts | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

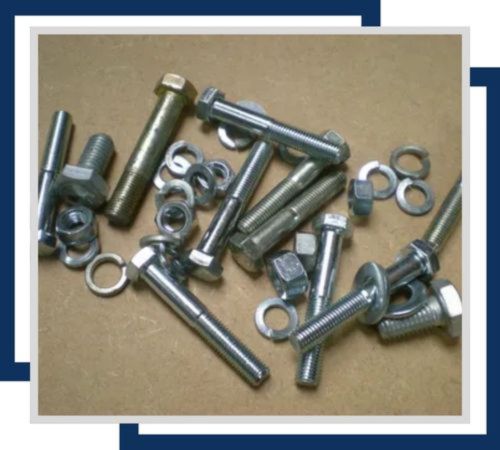

Stainless Steel 202 anchor bolts offer exceptional strength and corrosion resistance, making them ideal for anchoring structures in challenging environments. Their durability ensures secure and reliable performance in construction and industrial settings.

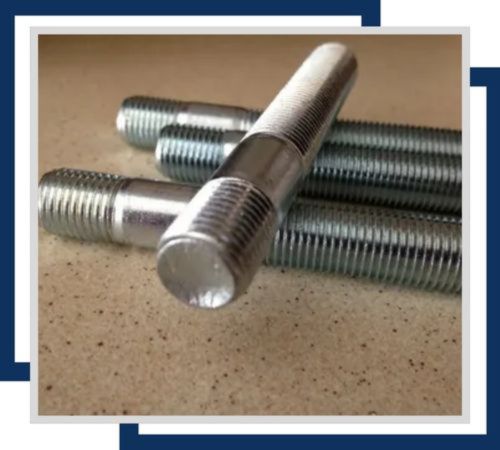

Stainless Steel 202 exhaust bolts are designed for high-temperature and corrosive environments, providing reliable fastening for exhaust systems. Their durability and resistance ensure long-lasting performance in automotive and industrial applications.

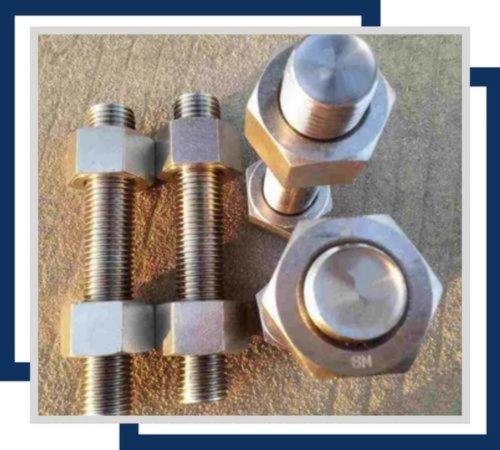

Stainless Steel 202 stud lag bolts offer superior strength and corrosion resistance for heavy-duty fastening in wood or masonry. Ideal for construction and structural projects, they ensure durable and secure connections.
We provide full transparency of our Stainless Steel 202 Stud Bolts with high-quality assurance. Every order includes all documents such as commercial invoice, packing list, fumigation certificate, heat treatment chart, and NABL-approved lab test report. We are offering a material test certificate under EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and third-party inspection certificate. Our well-documented details are arranged in a way that provides maximum satisfaction to the client.
Stainless Steel 202 Stud Bolts are the best for construction, infrastructure, machinery, and automotive parts. They can be used to fasten structural steel assembly parts, pipes, flanges, and mechanical equipment. In the building industry, they are used in installations that need both strength and surface attractiveness, like supports and railings. SS 202 stud bolts are also used in the manufacturing of appliances and light engineering applications where strength, corrosion resistance, and affordability are needed. These bolts are available from Ed Stainless in a variety of diameters and thread sizes to provide the best fit for your engineering needs.
