Home > Stud Bolts > Stainless Steel 304H Stud Bolts
Ed Stainless is a reputable manufacturer and supplier of Stainless Steel 304H Stud Bolts, proudly based in Houston, Texas. Renowned for their precision engineering and top-notch materials, Ed Stainless serves a variety of demanding industrial sectors, including oil & gas, petrochemical, power generation, and construction. With a strong dedication to American manufacturing standards, the company guarantees that each SS 304H stud bolt adheres to rigorous performance and safety benchmarks. Drawing on years of expertise, Ed Stainless provides corrosion-resistant, high-temperature-grade fasteners designed to meet the unique needs of projects across Texas and the entire United States. Their reliable delivery and exceptional customer support further solidify their reputation in the industry.

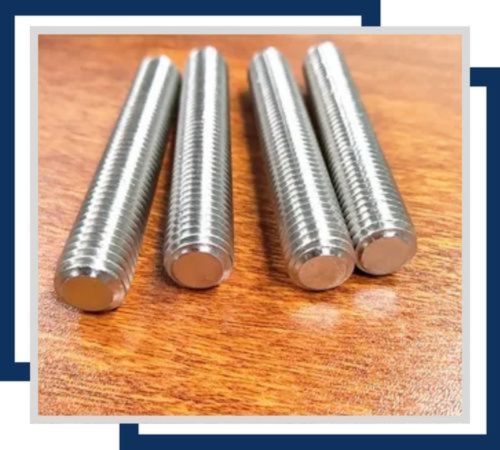

The Stainless Steel 304H Stud Bolts crafted by Ed Stainless in Texas are built for outstanding durability and performance in high-temperature settings. These bolts feature a higher carbon content (0.04–0.10%) compared to standard 304, which boosts their creep resistance and strength at elevated temperatures. The typical composition includes Chromium (18–20%), Nickel (8–11%), Manganese (≤2%), and Silicon (≤1%). Mechanically, SS 304H boasts a tensile strength of about 515 MPa, a yield strength of 205 MPa, and impressive elongation properties. Ed Stainless ensures these mechanical characteristics are consistently met through rigorous testing, heat treatment, and quality assurance protocols for every manufacturing batch.
| Grade | Stainless Steel 304, 304H, 304L |
| Specifications | ASTM A193 / ASME SA193 |
| Standard | DIN, ASTM, BS and all International Standards |
| Length | 3mm to 200mm |
| Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Types | Threaded Rod, Class A double ended stud, Tie Rod, Double Ended Stud, Stud Bolts, Bronze Hex Studs, Threaded Studs |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304H | min. | 0.04 | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.10 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | – | 10.5 | – | |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304H | 515 | 205 | 40 | 92 | 201 |
Contact us to get a quick quote for your requirement.

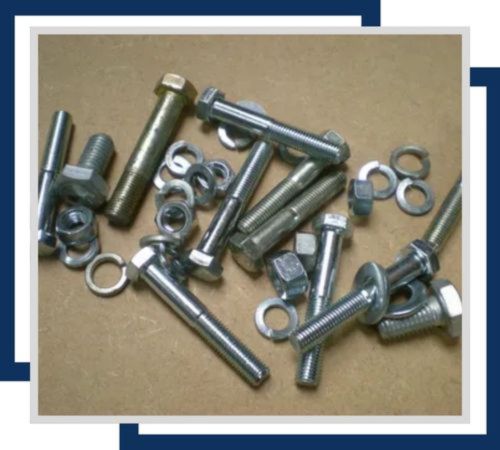

Stainless Steel DIN 1.4301 Stud Bolts offer superior strength and corrosion resistance, adhering to DIN standards. Ideal for general-purpose applications, they ensure reliable performance in various industrial settings.

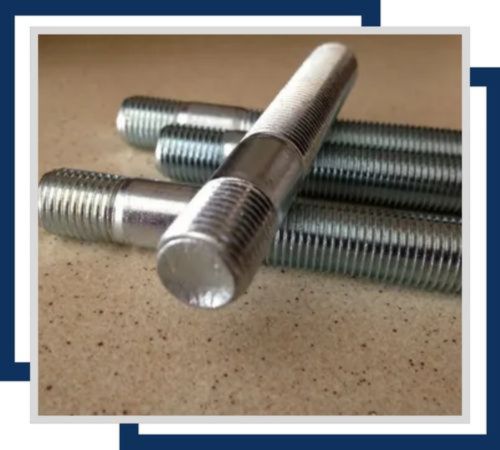

Stainless Steel UNS S30409 Stud Bolts deliver high strength and excellent resistance to corrosion and high temperatures. Suitable for demanding industrial applications, they ensure durability and reliability in challenging environments.

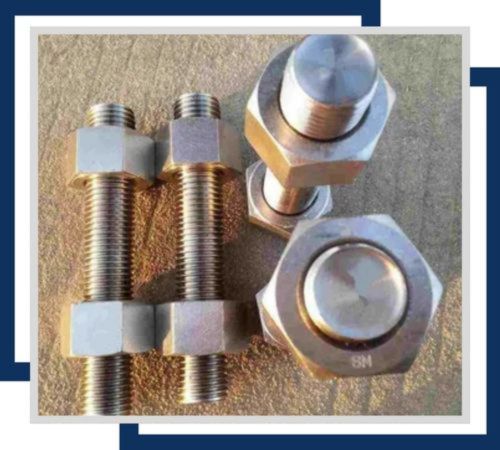

Stainless Steel 304H Flush Head Stud Bolts combine high strength with a sleek, flush design, ideal for applications requiring minimal protrusion. They offer excellent corrosion resistance and durability in harsh environments.
We ensure detailed documents of our Stainless Steel 304H Stud Bolts, ensuring the product is thoroughly transactable and reliable in communication. Our documents include a commercial invoice, packaging list, fumigation certificate, heat treatment chart, and a quality assurance plan. The shipment contains the NABL-approved lab test report, ensuring that the product meets very high standards. The quality commitment is further depicted by several test certificates, such as MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and a Third-Party Inspection Certificate. All these measures ensure 100% client satisfaction and confidence in the integrity of our products.
Ed Stainless’s Stainless Steel 304H Stud Bolts are extensively utilized in high-temperature and corrosive environments, making them perfect for heat exchangers, boilers, pressure vessels, and reactors in the petrochemical and power sectors. Their high tensile strength and oxidation resistance guarantee reliable performance in elevated temperature applications exceeding 500°C. These stud bolts are frequently specified for offshore oil platforms, refineries, and thermal plants. Ed Stainless supplies these fasteners to fabrication companies, EPC contractors, and OEMs throughout Texas and across the nation.
