Ed Stainless is a top-notch manufacturer and supplier located in Houston, Texas, known for its high-quality Stainless Steel 316H stud bolts. With years of experience under their belt, Ed Stainless is dedicated to providing outstanding products that meet rigorous standards for durability, strength, and resistance to corrosion. They cater to a wide range of industrial sectors across the USA, taking pride in their precision engineering and exceptional customer service. Their 316H stud bolts are built to perform reliably even in extreme conditions, making Ed Stainless a go-to name for critical applications in the petrochemical, power generation, and marine industries, both in Texas and beyond.
The Stainless Steel 316H stud bolts produced by Ed Stainless in Texas boast an improved chemical composition, featuring a higher carbon content than standard 316, which enhances their strength at high temperatures. This alloy mainly consists of chromium (16-18%), nickel (10-14%), and molybdenum (2-3%), all of which contribute to remarkable corrosion resistance and mechanical strength. These stud bolts demonstrate excellent tensile strength, yield strength, and hardness, maintaining their stability in temperatures reaching up to 900°C (1650°F). Their durability against thermal stress and resistance to oxidation make them perfect for critical fastening tasks in tough industrial settings.
| Fasteners Material Specification | ASTM A194, ASME SA193, UNS S31609 Bolts |
|---|---|
| Standard | DIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM and all International Standards |
| Fasteners/ Bolts Size | M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160 |
| Length | 3 mm to 200 mm |
| Bolts, Studs Threads: | METRIC, BSW, BSF, UNC, UNF or as required |
| SS 316h Fasteners Standard: | ANSI – American National Standards Institute
|
| Source of raw materials | Tata Steel, JSPL, RINL, Usha Martin, Dhamm Steel, Mukund Steel etc. |
| SCOPE OF MANUFACTURE |
|
| Fasteners In Form of: | Hex, Square, Round, Threading as per Gauge Etc. |
| Head drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
| bolting Test Certificate: | Manufacturer Test Certificate as per EN 10204 / 3.1 |
| Fasteners finishing: | Zinc (yellow, white, blue, black), black oxide, Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET |
| Production process | M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
316H | Min | 0.04 | 0.04 | 0 | – | – | 16.0 | 2.00 | 10.0 | – |
max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | – |
Grade | Tensile Str (MPa) min | Yield Str 0.2% Proof (MPa) min | Elong (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
316H | 515 | 205 | 40 | 95 | 217 |
Contact us to get a quick quote for your requirement.

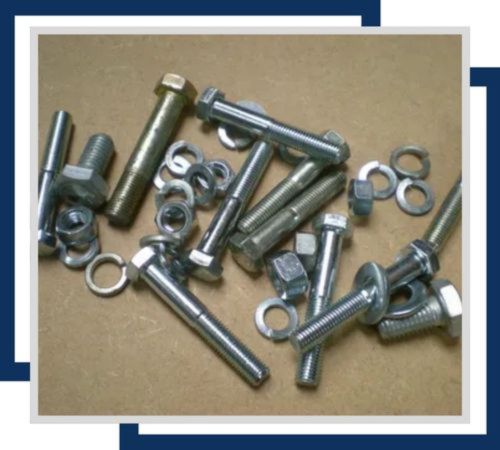

Stainless Steel 316H lag stud bolts offer high strength and superior corrosion resistance, ideal for high-temperature and harsh environments, ensuring durability and reliability in industrial, chemical, and marine applications.

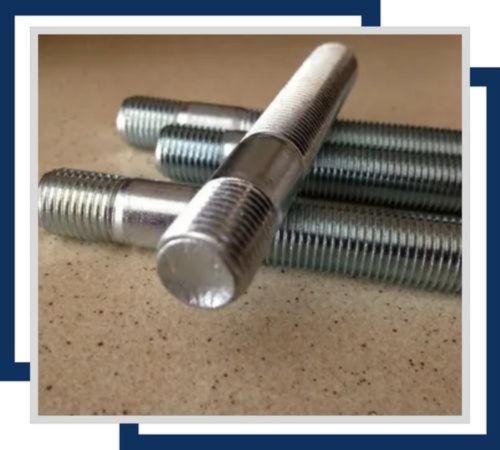

Stainless Steel 316H stud anchor bolts provide high strength and exceptional corrosion resistance, ideal for high-temperature and harsh environments, ensuring secure anchoring in industrial, chemical, and marine applications.

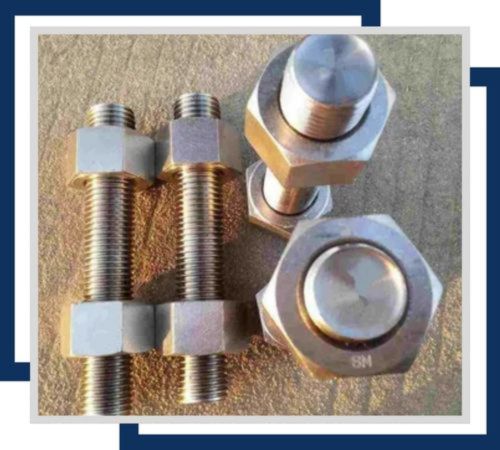

Stainless Steel 316H exhaust stud bolts offer high strength and corrosion resistance, ideal for high-temperature exhaust systems, ensuring durability and reliability in automotive, industrial, and marine applications.
We provide a wide range of certifications by supplying you with only the highest quality standards through our Stainless Steel 316H Stud Bolts. What’s included in our package is commercial invoices, packaging lists, fumigation certificates, heat treatment charts, quality assurance plans, and approved laboratory test reports. We also give you different types of test certificates specifically for your Stainless Steel 316H Stud Bolts. We assure 100 percent client satisfaction with confidence in products by providing them with the proper certifications. It includes MTC as per EN 10204/3.1b, PMI Test Certificate, and 100 percent radiography test report and third-party inspection certificates.
Ed Stainless’s 316H stud bolts are widely utilized in industries that demand reliable performance in high-temperature and corrosive environments. You’ll find them in petrochemical plants, power generation facilities, oil and gas refineries, and marine engineering projects. These stud bolts play a crucial role in securing flanges, valves, and pressure vessels where heat resistance and structural integrity are paramount. Their outstanding corrosion resistance against chloride and acidic conditions makes them ideal for chemical processing and offshore installations. By offering secure, long-lasting fastening solutions, Ed Stainless helps ensure operational safety and efficiency in challenging industrial environments.
