AWS Class ER309LSi MIG and TIG Filler Welding Wire and Rod

Home > Electrodes > AWS Class ER309LSi Mig & Tig Filler Welding Wire & Rod

AWS/ASME 5.14 ER309LSi MIG & TIG Filler Wire Manufacturer in Texas, SFA A5.9 ER309LSi MIG & TIG Filler Rod Supplier in California, Alloy ER309LSi Welding Mig & Tig Filler Wire Exporter in Houston, UNS S30988 Mig and Tig Stick Filler Metal Trader in United States, AWS ER309LSi Mig & Tig Filler Metal Rod & Wire Houston, AWS Class ER309LSi Metal Inert Gas (MIG) Welding United States

Ed Stainless delivers AWS Class ER309LSi MIG and TIG filler welding wire and rod from Houston, USA, designed to weld different metals and resist high-temperature corrosion. Made for stainless-to-carbon steel joints, ER309LSi features improved silicon for better arc stability. Certified to AWS standards, this filler supports both MIG and TIG welding with steady bead quality. Its reputation in structural welding and repair makes it a preferred choice in applications needing strong mechanical integrity. With Ed Stainless, you get reliable product availability, expert advice, and quality assurance to tackle various welding challenges.

AWS A5.9 ER309LSi MIG & TIG Welding Filler Rod Manufacturer in Texas, AWS Class ER309LSi MIG & TIG Filler Metal Stockist in California, MIG & TIG Filler Rods United States, MIG & TIG Filler Metal Wire Stockist Houston, AWS Class ER309LSi Tungsten Inert Gas (TIG) Welding California

ER309LSi filler consists of 22–24% chromium, 12–15% nickel, and 0.8–1.8% silicon, with low carbon content to minimize carbide precipitation. Its tensile strength is usually 80 ksi, yield strength around 60 ksi, and elongation approximately 30%. The additional silicon enhances fluidity, arc stability, and wetting performance in MIG and TIG welding. This alloy shows great oxidation resistance up to 870 °C and effectively bridges metallurgical gaps when joining stainless steels to carbon steels. It maintains high toughness and avoids cracking, even when dealing with different thermal expansions.

AWS Class ER309LSi MIG and TIG Filler Welding Wire and Rod Specifications

Classification	AWS A5.9, ER309LSi
Form	MIG spools, TIG cut lengths, Reels and Coils
Type Of Welding	Inert Gas Welding
Current	MIG-DCEP / TIG-DCEN
Diameters	.023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8”
Standard TIG straight lengths are available	36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request.
AWS ER309LSi MIG & TIG Filler Metal Application & uses	Hardware tools Metallurgy Machinery Construction Shipbuilding Petroleum Chemical plant Power sector Gas Industry

AWS Class ER309LSi MIG and TIG Filler Welding Wire and Rod Chemical Composition

C	Cr	Ni	Mo	Mn	Si	P	S	Cu
0.12	24.0-26.0	13.0-15.0	0.75	1.0-2.5	0.65-1.00	0.03	0.03	0.75

AWS Class ER309LSi MIG and TIG Filler Welding Wire and Rod Mechanical Properties

Yield, kpsi:	564
Tensile Strength, kpsi:	87
Elongation%, min:	41

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Why Choose AWS Class ER309LSi MIG and TIG Filler Welding Wire and Rod from Ed Stainless?

Largest Inventory

Customer Support

On Time Deliveries

ISO Certified

Types of AWS Class ER309LSi MIG and TIG Filler Welding Wire and Rod

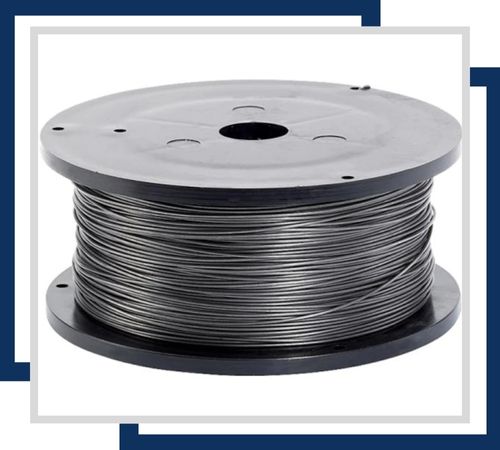

Stainless Steel ER309LSi MIG Filler Wire

Stainless Steel ER309LSi MIG Filler Wire offers high-quality, silicon-enhanced welds for dissimilar metals, providing excellent corrosion resistance and bead appearance in applications like power generation and industrial fabrication.

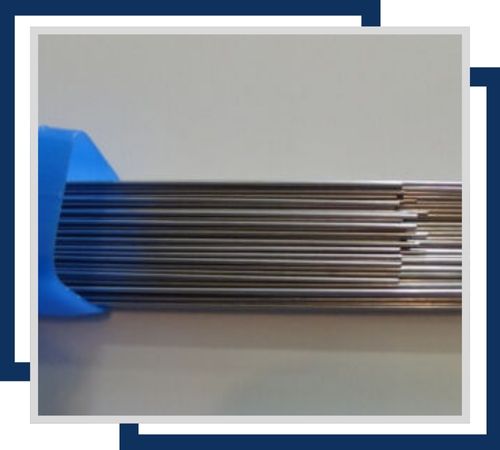

Stainless Steel ER309LSi TIG Filler Wire

Stainless Steel ER309LSi TIG Filler Wire delivers superior weld quality and corrosion resistance for dissimilar metal joints, ideal for high-temperature and critical applications in industries such as petrochemical and structural fabrication.

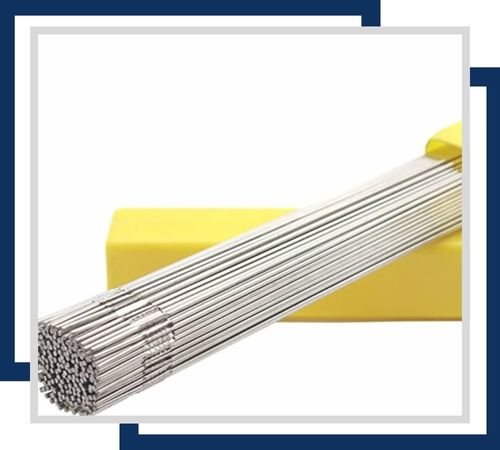

Stainless Steel ER309LSi TIG Filler Rod

Stainless Steel ER309LSi TIG Filler Rod ensures strong, corrosion-resistant welds with enhanced fluidity for dissimilar metals, suitable for high-stress applications in power generation, chemical processing, and industrial sectors.

After the production of our AWS Class ER309LSi MIG and TIG Filler Welding Wire and Rod, our quality control team conducts thorough destructive and non-destructive testing using advanced equipment to ensure the superior performance and reliability of the product. Once the testing is complete we carefully package the filler wire and rod using appropriate materials to maintain their quality during shipping. We assure smooth and timely delivery to our customers. Guaranteeing on-time arrival without any delays. All necessary documentation, including certificates and test reports, are provided to the clients upon delivery.

Stainless Steel Industrial ER309LSi MIG / TIG Filler Wire Price List in Los Angeles, Aws Class ER309LSi MIG /TIG Filler Welding Wire California, Stainless Steel ER309LSi Mig & Tig Filler Wire Supplier in Texas, USA, SS ER309LSi MIG & TIG Filler Metal Distributor in Los Angeles, AWS Class ER309LSi MIG & TIG Filler Metal Rods Exporters California, UNS S30988 AWS Class ER309LSi MIG and TIG Filler Welding Wire and Rod Los Angeles

AWS Class ER309LSi MIG and TIG Filler Welding Wires and Rods Uses

AWS ER309LSi filler wire and rod are often used to join or overlay stainless steel onto carbon or mild steel substrates. Applications include furnace parts, petrochemical equipment, mixer shafts, and boiler repairs. It is suitable for welding heavy structural components in bridges, pressure vessels, tanks, and ducting where different thermal expansions are an issue. The high-silicon formulation ensures clean weld profiles and excellent fusion, reducing defects during MIG or TIG processes. Ed Stainless supports fabricators and maintenance crews with ready inventory and technical support to ensure the best performance in dissimilar metal joining and high-temperature service.
