AWS Class ER316LSi MIG and TIG Filler Welding Wire and Rod

Home > Electrodes > AWS Class ER316LSi Mig & Tig Filler Welding Wire & Rod

AWS A5.9 ER316LSi MIG & TIG Welding Filler Rod Manufacturer in Texas, AWS Class ER316LSi MIG & TIG Filler Metal Stockist in California, MIG & TIG Filler Rods United States, MIG & TIG Filler Metal Stockist Houston, AWS Class ER316LSi Tungsten Inert Gas (TIG) Welding California, AWS Class UNS S31688 MIG and TIG Filler Welding Wire and Rod Los Angeles

Ed Stainless proudly offers AWS Class ER316LSi MIG and TIG filler welding wire and rod, designed to meet strict industrial welding needs. Produced in Houston, USA, this high-quality filler metal combines excellent corrosion resistance with reliable weld strength. Widely verified and certified, ER316LSi works for both MIG and TIG processes, making it versatile across various applications. Known for its great arc performance and smooth bead appearance, this consumable is popular among fabricators in tough environments. Whether used in food processing, chemical handling, or marine equipment, Ed Stainless ensures consistent quality, timely delivery, and expert technical support tailored to your welding needs.

Stainless Steel Industrial ER316LSi MIG / TIG Filler Wire Price List in Los Angeles, Aws Class ER316LSi MIG /TIG Filler Welding Wire California, Stainless Steel ER316LSi Mig & Tig Filler Wire Supplier in Texas, USA, SS ER316LSi MIG & TIG Filler Metal Distributor in Los Angeles, AWS Class ER316LSi MIG & TIG Filler Metal Exporters California, UNS S31688 AWS Class ER316LSi MIG and TIG Filler Welding Wire and Rod Los Angeles

The ER316LSi filler metal contains 18–20% chromium, 11–14% nickel, 2–3% molybdenum, ≤0.03% carbon, and a high silicon content of 0.65–1.0%. This mix guarantees excellent resistance to pitting, crevice corrosion, and intergranular attack. With a tensile strength of at least 75 ksi and a yield strength of 57 ksi, it maintains an elongation of 30% or more. The added silicon improves arc stability, creates smooth fluid weld beads, and reduces spatter. These mechanical properties ensure reliable joint strength and fatigue resistance, making it ideal for tough service conditions.

AWS Class ER316LSi MIG and TIG Filler Welding Wire and Rod Specifications

Classification	AWS A5.9, ER316LSi
Form	MIG spools, TIG cut lengths, Reels and Coils
Type Of Welding	Inert Gas Welding
Current	MIG-DCEP / TIG-DCEN
Diameters	.023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8”
Standard TIG straight lengths are available	36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request.
AWS ER316LSi MIG & TIG Filler Metal Application & uses	Hardware tools Metallurgy Machinery Construction Shipbuilding Petroleum Chemical plant Power sector Gas Industry

AWS Class ER316LSi MIG and TIG Filler Welding Wire and Rod Chemical Composition

C	Cr	Ni	Mo	Mn	Si	P	S
0.03	18.0-20.0	11.0-14.0	2.0-3.0	1.0-2.5	0.65-1.0	0.03	0.03

AWS Class ER316LSi MIG and TIG Filler Welding Wire and Rod Mechanical Properties

Yield, kpsi:	64
Tensile Strength, kpsi:	90
Elongation%, min:	37

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Why Choose AWS Class ER316LSi MIG and TIG Filler Welding Wire and Rod from Ed Stainless?

Largest Inventory

Customer Support

On Time Deliveries

ISO Certified

Types of AWS Class ER316LSi MIG and TIG Filler Welding Wire and Rod

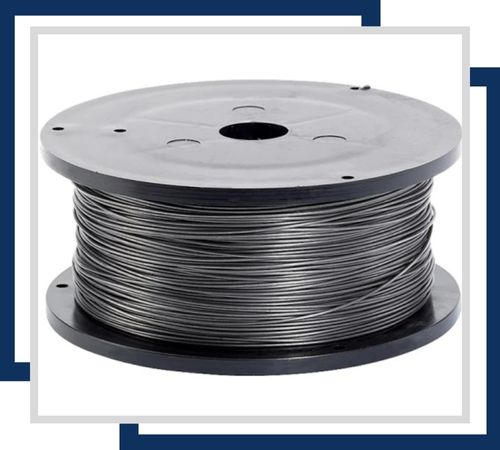

Stainless Steel ER316LSi MIG Filler Wire

Stainless Steel ER316LSi MIG Filler Wire is designed for MIG welding applications with excellent corrosion resistance, especially in environments with chlorides and chemicals. It typically comes in sizes ranging from 0.030 inches (0.8 mm) to 0.045 inches (1.2 mm) in diameter. The wire provides good weld bead appearance and reduces spatter.

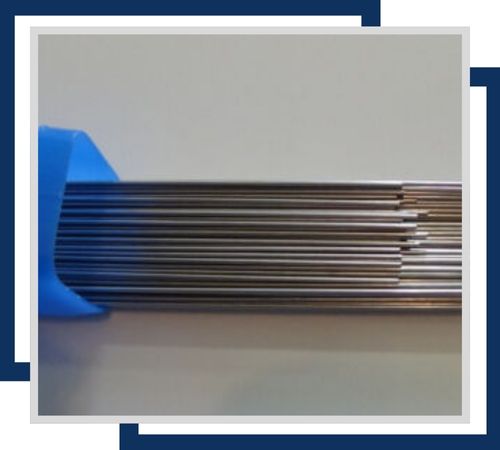

Stainless Steel ER316LSi TIG Filler Wire

Stainless Steel ER316LSi TIG Filler Wire is suitable for TIG welding and offers enhanced corrosion resistance, particularly in harsh environments. It is available in sizes from 1/16 inch (1.6 mm) to 3/32 inch (2.4 mm) in diameter. The wire ensures high-quality, clean welds with minimal oxidation.

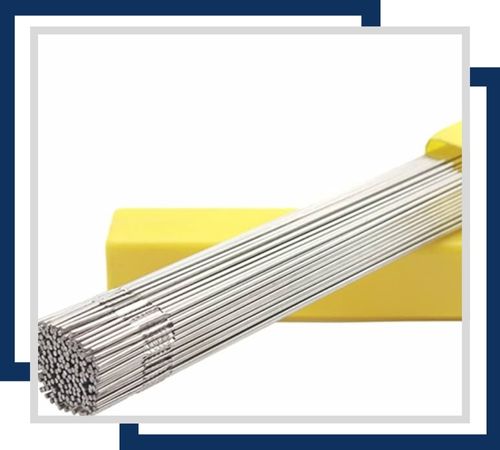

Stainless Steel ER316LSi TIG Filler Rod

Stainless Steel ER316LSi TIG Filler Rod is used for TIG welding stainless steel, providing superior resistance to pitting and crevice corrosion. Commonly available in lengths of 36 inches (914 mm) and diameters from 1/16 inch (1.6 mm) to 3/32 inch (2.4 mm). It delivers excellent weld strength and smooth, clean welds.

Each AWS Class ER316LSi MIG and TIG Filler Welding Wire and Rod is carefully packed using high-quality materials to prevent any damage or contamination during transit. We prioritize timely deliveries also guaranteeing quick and efficient transportation to meet our clients needs. Additionally all relevant documentation regarding the product is provided at the time of delivery assuring full transparency and satisfaction for our valued customers.

AWS/ASME 5.14 ER316LSi MIG & TIG Filler Wire Manufacturer in Texas, SFA A5.9 ER316LSi MIG & TIG Filler Rod Supplier in California, Alloy ER316LSi Welding Mig & Tig Filler Wire Exporter in Houston, UNS S31688 Mig and Tig Stick Filler Metal Trader in United States, AWS ER316LSi Mig & Tig Filler Metal Rod & Wire Houston, AWS Class ER316LSi Metal Inert Gas (MIG) Welding United States

AWS Class ER316LSi MIG and TIG Filler Welding Wires and Rods Uses

AWS Class ER316LSi filler metal is widely used in industries that require strong corrosion protection and weld quality. Key applications include welding chloride-resistant piping and tanks in petrochemical and desalination facilities, food and beverage processing plants, pharmaceutical equipment, and marine hardware. It also works well for structural and decorative components exposed to industrial environments or saltwater. The wire and rod perform effectively in both MIG and TIG welding, delivering clean welds with minimal defects. Ed Stainless ensures this versatile filler metal helps you meet regulatory standards and project requirements, delivering dependable performance in critical environments.
