Home > Electrodes > AWS Class ER410NiMo Mig & Tig Filler Welding Wire & Rod
ED Stainless in Houston produces high-quality AWS Class ER410NiMo MIG and TIG filler wire and rod. Using cutting-edge melting and refining techniques, they create a nickel-grade martensitic stainless filler alloy known for its strength and corrosion resistance. Located in Houston, the company combines local inventory with nationwide distribution. Their ER410NiMo range supports industries needing high-impact toughness and resistance to hydrogen embrittlement. ED Stainless’s products are certified to AWS standards and come with technical support, ensuring welders receive a reliable filler solution for demanding structural and pressure applications.
The ER410NiMo alloy consists of about 11–13% chromium, about 1% nickel, about 0.6% molybdenum, along with manganese and silicon. Carbon is limited to 0.12–0.20% to create a martensitic microstructure. Post-weld tensile strengths range from 85–100 ksi (585–690 MPa), yield strength is 70–85 ksi (480–585 MPa), and elongation is around 15–20%. Hardness after proper heat treatment can reach HRC 30–35. Molybdenum improves pitting resistance, while nickel enhances impact toughness. This filler shows strong resistance to sulfide stress cracking and maintains ductility in harsh conditions.
| Classification | AWS A5.9, ER410NiMo |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ER410NiMo MIG & TIG Filler Metal Application & uses |
|
| C | Cr | Ni | Mo | Mn | Si | P | S | Cu |
| 0.06 | 11.0-12.5 | 4.0-5.0 | 0.4-0.7 | 0.6 | 0.5 | 0.03 | 0.03 | 0.75 |
| Yield, kpsi: | 92 |
| Tensile Strength, kpsi: | 118 |
| Elongation%, min: | 20 |
Contact us to get a quick quote for your requirement.

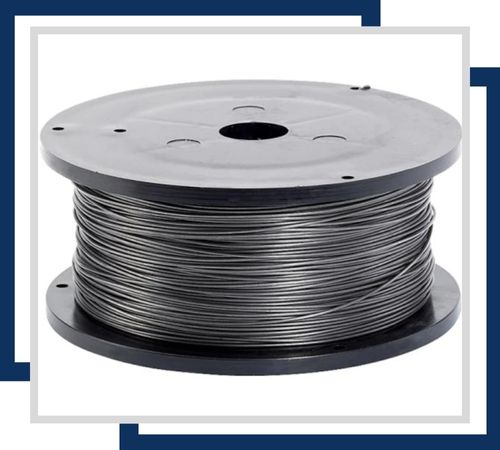

ER410NiMo MIG filler wire provides enhanced toughness and corrosion resistance, ideal for welding high-stress components and tools, ensuring strong, durable welds in demanding environments.

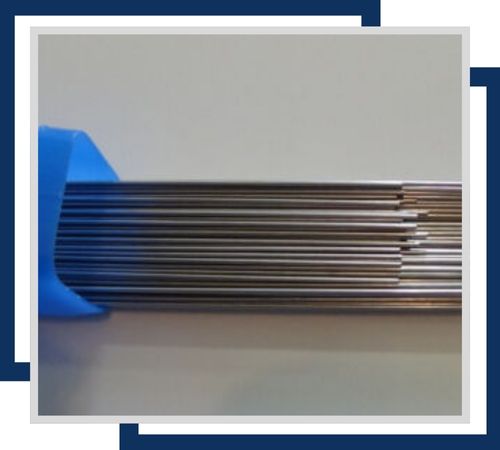

ER410NiMo TIG filler wire offers superior toughness and resistance to corrosion, suitable for welding martensitic stainless steels in applications requiring high durability and performance under stress.

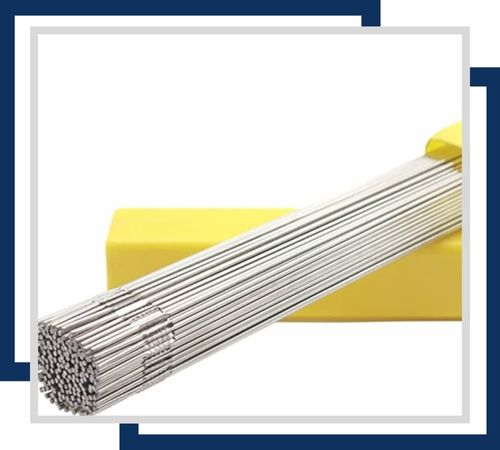

ER410NiMo TIG filler rod delivers excellent toughness and resistance to corrosion, ideal for welding components exposed to high temperatures and severe conditions, ensuring durability and strong welds.
After manufacturing our quality control team conducts a series of destructive and non-destructive tests. Using advanced tools to make sure the performance and reliability of the AWS Class ER410NiMo MIG and TIG Filler Welding Wire and Rod. We then package the products securely and ensure timely delivery to customers providing all necessary documentation at the time of delivery to assure complete transparency.
AWS Class ER410NiMo filler is often used for welding 410 and 416 stainless steels and dissimilar joints with low-alloy steels in hydrogen sulfide-rich environments. It’s commonly applied in oilfield tubulars, pressure vessels, and petrochemical equipment operating in sour gas. It’s also used to manufacture fasteners, shafts, and pumps that need high tensile strength and resistance to sulfide stress cracking. In Houston’s upstream and downstream sectors, it’s used for pipeline weld repair, sour-service valves, and pressure containment systems. For MIG and TIG welding of critical structural components, ER410NiMo provides strong, corrosion-resistant joints, maintaining integrity under load and corrosive conditions.
