Ed Stainless is a top-notch manufacturer and supplier located in Houston, Texas, specializing in high-quality Stainless Steel 305 tubing. They’ve built a solid reputation for providing premium products that cater to a variety of industrial needs. By blending cutting-edge manufacturing techniques with rigorous quality control, Ed Stainless ensures that their products are both durable and reliable. They serve a broad spectrum of industries across Texas and the entire USA, with their Stainless Steel 305 tubing meeting strict performance and corrosion resistance standards. With a strong focus on customer satisfaction, Ed Stainless offers tailored solutions and prompt deliveries, making them a go-to partner for businesses in need of sturdy and precise stainless steel tubing.
The Stainless Steel 305 tubing from Ed Stainless is primarily made up of iron, along with 18-20% chromium and 8-10% nickel, which boosts its corrosion resistance and strength. This austenitic alloy is non-magnetic and boasts excellent oxidation resistance and toughness across various temperatures. It has a tensile strength of about 515 MPa and a yield strength close to 205 MPa. The material is quite ductile, with an elongation of around 40%, making it perfect for bending and forming. Its chemical makeup ensures stability even in harsh environments, making it a reliable choice for both structural and industrial applications.
Type: Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser Tubes
Grades: TP304, TP304L, TP304H
Size: 1/8” NB to 5” NB, 1/4” OD to 5” OD sizes stainless steel seamless tubes also available
Length: Up to 6 meters, custom cut lengths
Thickness: 1mm to 13mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10
Finish: No.1 Pickled Finish, No.4 finish, BA Finish, Electropolished Pipes
Delivery Condition: Hot Finish, Cold Finish, Bright Annealed, Polished, Annealed and Pickled, Passivated, Stress Relived
| Element | Content (%) |
|---|---|
| Iron, Fe | 67 |
| Chromium, Cr | 18 |
| Nickel, Ni | 12 |
| Manganese, Mn | ≤ 2 |
| Silicon, Si | ≤ 1 |
| Carbon, C | 0.12 |
| Phosphorous, P | 0.045 |
| Sulfur, S | 0.030 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength, ultimate | 585 MPa | 84800 psi |
| Tensile strength, yield (@0.2%) | 260 MPa | 37700 psi |
| Modulus of elasticity | 193 GPa | 28000 ksi |
| Shear modulus | 86 GPa | 12500 ksi |
| Elongation at break (in 50 mm) | 50 | 50 |
| Hardness, Brinell | 80 | 80 |
| Hardness, Knoop (converted from Brinell hardness) | 97 | 97 |
| Hardness, Rockwell B (converted from Brinell hardness) | 45 | 45 |
| Hardness, Vickers (converted from Brinell hardness) | 82 | 82 |
Contact us to get a quick quote for your requirement.
We tests all Stainless Steel 305 Tubing to the international quality standard. Every batch is tested for composition, mechanical properties, and corrosion resistance. The company provides certification for material traceability that complies with ASTM, EN, and other relevant standards to ensure product excellence and reliability.

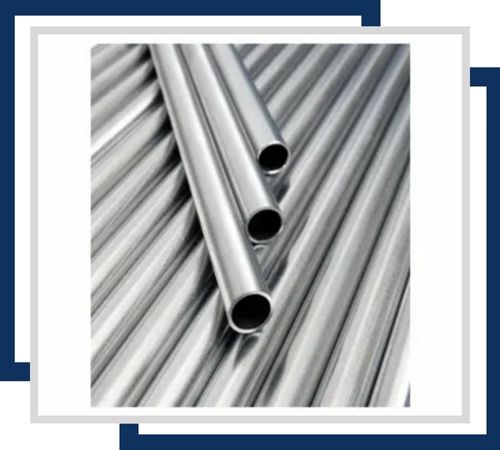

This tubing comes in a variety of sizes, typically ranging from 1/8″ to 4″ in diameter. Known for its exceptional corrosion resistance and smooth finish, it is ideal for applications requiring high durability and reliability.
Available in sizes from 1/4″ to 6″ in diameter, this tubing features a welded seam for structural strength. It offers excellent corrosion resistance and is commonly used in both industrial and architectural applications.

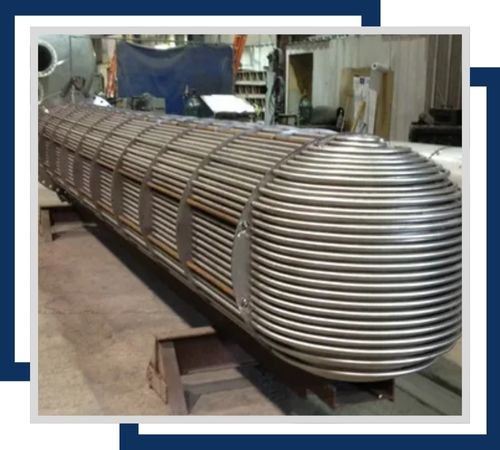

Designed for heat transfer efficiency, these tubes are generally sized from 1/2″ to 2″ in diameter. They exhibit high resistance to corrosion and are used in heat exchangers for various industrial processes.

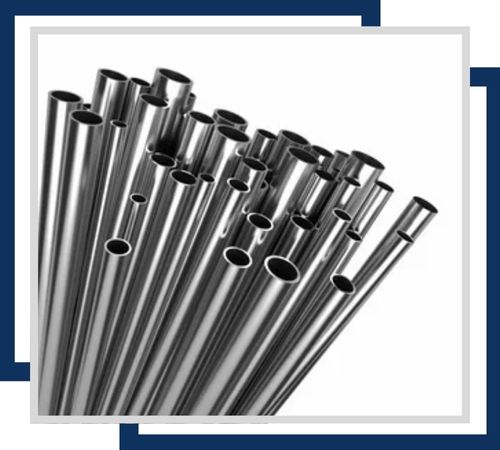

Stainless Steel 305 Instrumentation Tubing**: Available in sizes ranging from 1/16″ to 1/2″ in diameter, this tubing is designed for precise instrumentation applications. It offers superior corrosion resistance and is ideal for use in harsh environments and critical measurement systems.

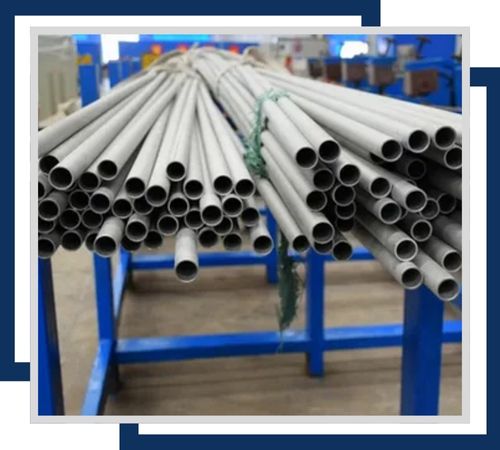

Typically available in sizes from 1″ to 4″ in diameter, these tubes are engineered to withstand high temperatures and pressures. They are highly corrosion-resistant and suitable for boiler systems.

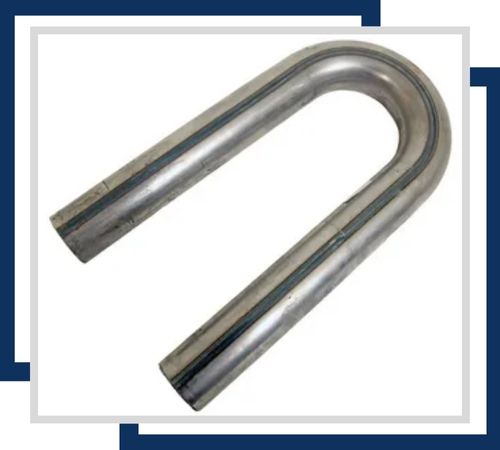

Usually ranging from 1/2″ to 2″ in diameter, these U-shaped tubes are designed for applications such as heat exchangers and condensers. They offer strong corrosion resistance and flexibility in heat transfer systems.

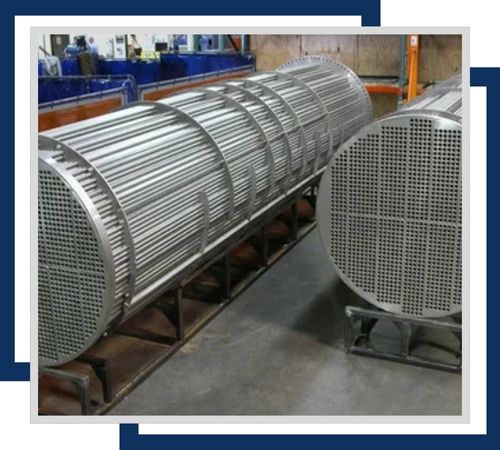

Available in sizes from 1/2″ to 3″ in diameter, these tubes are optimized for use in condensers. They provide excellent resistance to corrosion and scaling, making them ideal for high-performance cooling systems.

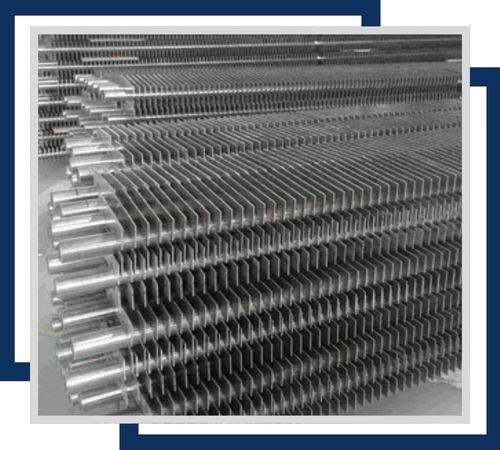

Typically sized from 1″ to 2″ in diameter, these tubes feature finned surfaces for enhanced heat transfer. They are highly resistant to corrosion and are used in various heat exchange and cooling applications.
Ed Stainless’s Stainless Steel 305 tubing is widely utilized in industries that demand corrosion-resistant and durable tubing solutions. You’ll find it in common applications like chemical processing, food and beverage manufacturing, HVAC systems, and architectural projects. Its impressive resistance to oxidation and moderate corrosion makes it a great fit for indoor settings and mild chemical exposures. Plus, it’s a popular choice in automotive and marine components, offering both strength and flexibility. Ed Stainless is committed to supporting customized tubing specifications, catering to sectors such as construction, pharmaceuticals, and general manufacturing, where dependable and precise tubing is essential for operational efficiency and safety.
