Ed Stainless stands out as a top-notch manufacturer and supplier of high-quality Stainless Steel 316Ti Tubing, proudly based in Houston, Texas, USA. Known for our precision engineering and remarkable product durability, we serve a diverse array of industries with tubing solutions that excel in corrosion resistance and heat tolerance. Our state-of-the-art manufacturing facilities, combined with rigorous quality control processes, guarantee that every product meets international standards. With a strong commitment to excellence, timely delivery, and customer satisfaction, Ed Stainless has earned a solid reputation as a reliable partner for Stainless Steel 316Ti Tubing throughout Texas and beyond.
Our Stainless Steel 316Ti Tubing boasts a distinctive chemical makeup that includes chromium (16–18%), nickel (10–14%), molybdenum (2–3%), titanium (for stabilization), and low carbon content. This unique blend significantly boosts its resistance to intergranular corrosion and enhances its strength at high temperatures. The mechanical properties are impressive, featuring a minimum tensile strength of 515 MPa, a yield strength of at least 205 MPa, and an excellent elongation of about 35%. Its sturdy structure and superior creep resistance make it perfect for high-stress and corrosive environments, ensuring a long service life and outstanding performance even under extreme conditions.
Tube Range : 6.35 mm OD To 101.6 mm OD Guage: 25 SWG – 10 SWG
Outer Diameter : 3.00 mm – 219.10 mm
Wall Thickness : 0.40 mm – 12.70 mm
Schedules : 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH
Length : Upto 30 meters, Custom Cut Lengths
Specifications : ASTM A269 / ASTM SA269
Types : Round, Square, Rectangle, Coil, “U” Shape, Hydraulic & Honed Tubes
| SS | 316TI |
| Ni | 10 – 14 |
| N | 0.10 max |
| Cr | 16 – 18 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.030 max |
| Mo | 2.00 – 3.00 |
| Grade | 316TI |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 35 |
| Hardness | |
| Rockwell B (HR B) max | 75 |
| Brinell (HB) max | 205 |
Contact us to get a quick quote for your requirement.
This steel 316Ti tubing from Ed Stainless is thoroughly inspected for pitting and intergranular corrosion resistance, tensile strength, and hardness, apart from hydrostatic pressure testing for premium quality, and is accredited and approved to international specifications like ASTM, ASME, and ISO against each material test report.

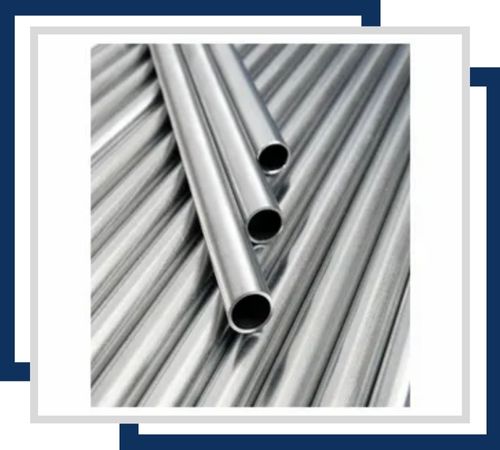

Stainless Steel 316Ti Seamless Tubing is known for its superior corrosion resistance, especially in high-temperature environments. Typically available in sizes ranging from 1/8” to 12” OD, it offers excellent mechanical properties and smooth surface finishes. Ideal for applications requiring high precision and reliability.
Stainless Steel 316Ti Welded Tubing combines excellent corrosion resistance with durability. Available in sizes from 1/8” to 24” OD, this tubing is cost-effective and versatile for various applications. It is particularly suitable for industries where high resistance to oxidizing acids is essential.

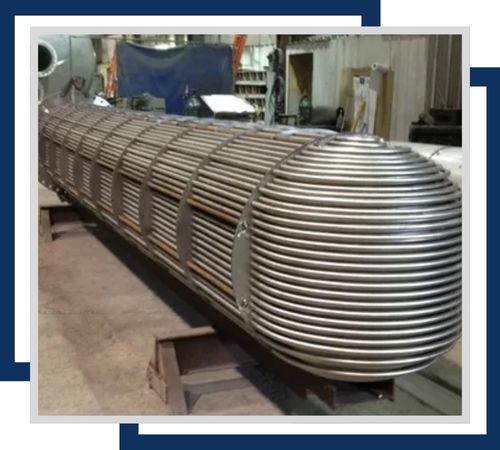

Stainless Steel 316Ti Heat Exchanger Tubes are designed for optimal thermal conductivity and corrosion resistance. These tubes come in sizes ranging from 1/4” to 2” OD, making them perfect for heat exchangers in chemical processing and power generation industries. They ensure efficient heat transfer and long service life.

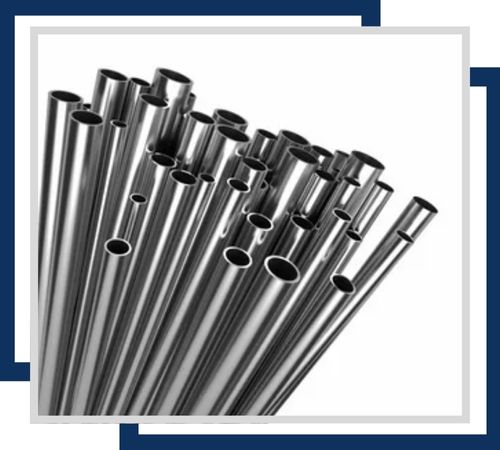

Stainless Steel 316Ti Instrumentation Tubing offers superior corrosion resistance and precision. Available in sizes from 1/16” to 1” OD, it is ideal for high-pressure and high-temperature applications in instrumentation and control systems. Ensures reliable performance and accuracy in critical applications.

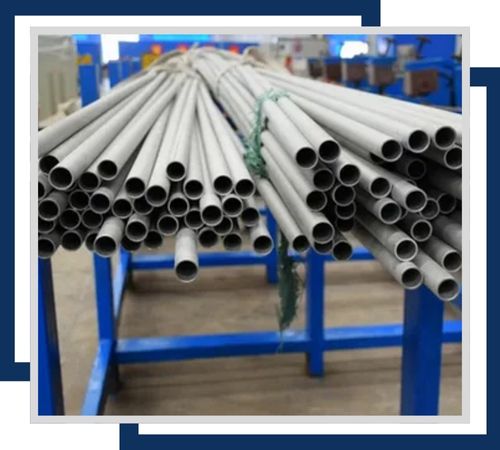

Stainless Steel 316Ti Boiler Tubes are engineered for high temperature and pressure conditions. Sizes range from 1/2” to 5” OD, providing excellent resistance to oxidation and corrosion. These tubes are essential for maintaining efficiency and longevity in boiler systems

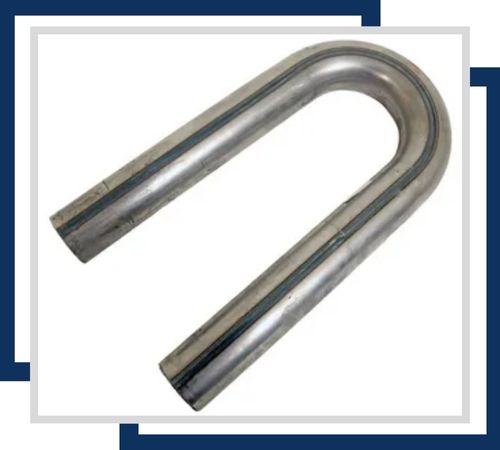

Stainless Steel 316Ti U-Tubes are designed for heat exchangers and boiler systems where space-saving is crucial. Available in sizes from 1/4” to 1” OD, they offer exceptional corrosion resistance and flexibility in design. Ideal for applications requiring compact and efficient thermal transfer solutions

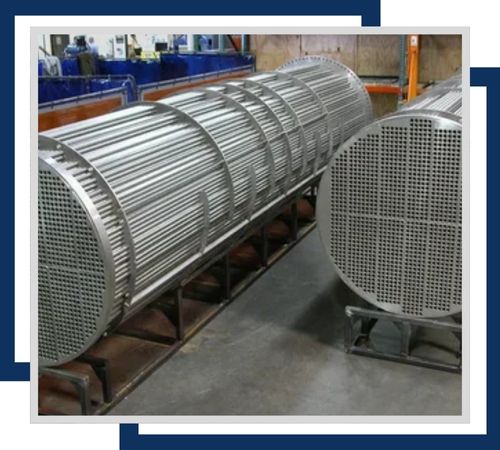

Stainless Steel 316Ti Condenser Tubes provide excellent corrosion resistance and thermal conductivity. Sizes range from 1/4” to 2” OD, making them suitable for condensers in power plants and HVAC systems. Ensures efficient condensation and long-term performance

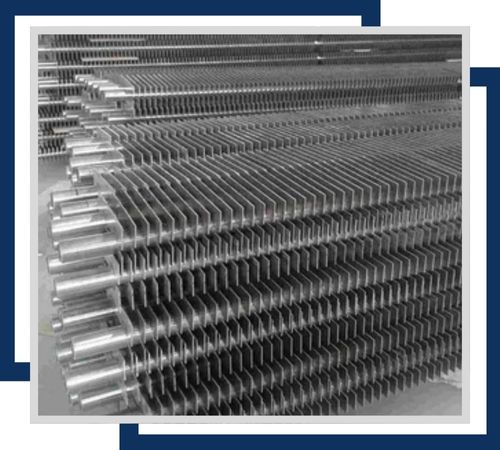

Stainless Steel 316Ti Fin Tubes enhance heat transfer efficiency while maintaining high corrosion resistance. Available in sizes from 1/4” to 1-1/2” OD, these tubes are used in heat exchangers, condensers, and evaporators. The finned design maximizes surface area for optimal thermal performance.
Ed Stainless’s Stainless Steel 316Ti Tubing is widely utilized in industries where high temperature and corrosive resistance are crucial. You’ll find it in applications like heat exchangers, chemical processing equipment, marine piping systems, food and pharmaceutical processing lines, and even nuclear power generation. Its ability to endure elevated temperatures and harsh environments makes it a go-to choice for aerospace and refinery applications as well. Plus, its non-reactive nature guarantees hygienic operations, especially in sanitary or sterile settings. Clients across Texas and the USA rely on Ed Stainless for durable, high-performance tubing that meets the toughest industrial demands.
