Ed Stainless Manufacturer and Suppliers, located in Houston, Texas, specializes in premium-quality stainless steel tubing solutions, including Stainless Steel 416 Tubing. Being a reliable manufacturer and supplier, Ed Stainless provides precision-designed products that adhere to the strictest industry standards. With a proven history and dedication to excellence, the company caters to customers from diverse industries such as aerospace, defense, medical, and manufacturing. Their Stainless Steel 416 tubing is renowned for its corrosion resistance, strength, and machinability, so Ed Stainless is an esteemed source of reliable and effective stainless steel tubing in Texas and nationwide.
Stainless Steel 416 tubing made by Ed Stainless in Texas has a base composition that consists of iron, with chromium at around 12–14%, as well as traces of manganese, phosphorus, sulfur (improved for machinability), and silicon. This martensitic stainless steel exhibits superior machinability and acceptable corrosion resistance. Mechanically, it offers tensile strength of around 550 MPa to 760 MPa, yield strength of around 275 MPa, and elongation of around 20%. Ed Stainless guarantees accurate heat treatment processes for improved hardness and strength, providing tubing that functions reliably in high-stress conditions in various industries.
| Grade | UNS | BS | BS | EN | EN | Swedish | Japanese |
| – | No. | EN | Name | SS | JIS | ||
| 416 | S41600 | 416S21 | 56AM | 1.4005 | X12CrS13 | 2380 | SUS 416 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 416 | min.max. | -0.15 | -1.25 | -1.00 | -0.060 | 0.15- | 12.0-14.0 | – | – |
| Tempering Temperature (°C) | Tensile Strength(MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Brinell (HB) | Impact Charpy V (J) |
| Annealed * | 517 | 276 | 30 | 262 | – |
| Condition T ** | 758 | 586 | 18 | 248-302 | – |
| 204 | 1340 | 1050 | 11 | 388 | 20 |
| 316 | 1350 | 1060 | 12 | 388 | 22 |
| 427 | 1405 | 1110 | 11 | 401 | # |
| 538 | 1000 | 795 | 13 | 321 | # |
| 593 | 840 | 705 | 19 | 248 | 27 |
| 650 | 750 | 575 | 20 | 223 | 38 |
Contact us to get a quick quote for your requirement.
We ensures the highest quality stainless steel 416 tubing through stringent testing and certification procedures. Each tube undergoes a thorough inspection, including dimensional testing, mechanical property testing and corrosion resistance evaluation. Certificates of compliance with traceability and quality reports are provided to ensure efficiency and reliability.

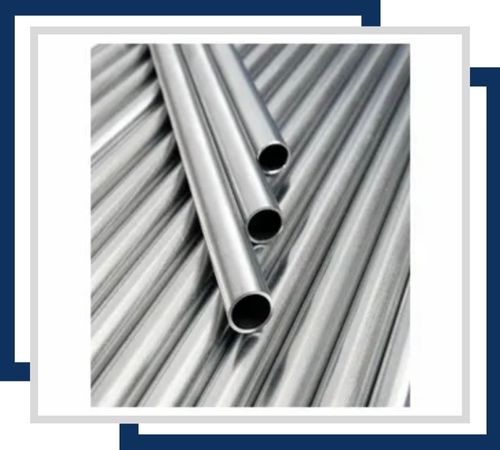

Available in sizes ranging from 0.25″ to 6″ outer diameter, 416 seamless tubing offers excellent corrosion resistance and machinability. Ideal for precision applications where smooth surfaces and dimensional accuracy are critical.
With dimensions typically ranging from 0.5″ to 24″ outer diameter, 416 welded tubing is corrosion-resistant and cost-effective for larger diameter applications. It is suitable for structural and non-critical fluid transfer purposes.

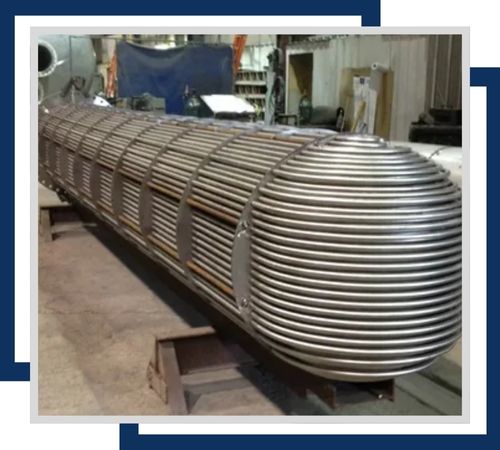

Available in sizes from 0.5″ to 2″ outer diameter, these tubes provide good corrosion resistance and thermal conductivity. They are used in heat exchangers where strength and durability are essential.

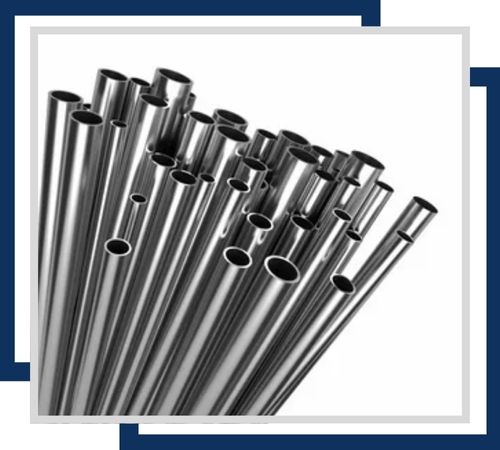

Ranging from 1/8″ to 1″ outer diameter, 416 instrumentation tubing offers excellent corrosion resistance and high strength. It is used in precise control and measurement applications in various industries.

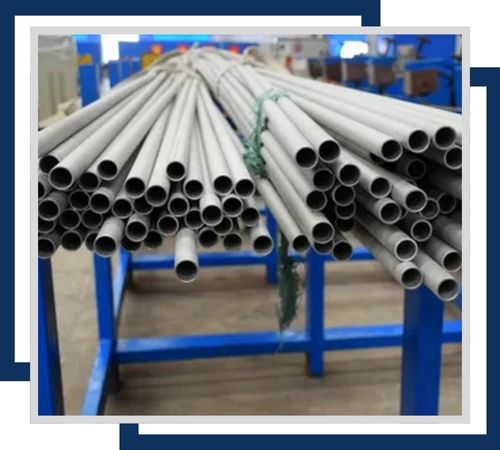

With sizes typically from 0.5″ to 5″ outer diameter, 416 boiler tubes provide excellent corrosion resistance and high-temperature performance. They are designed for use in steam boilers and other high-pressure environments.

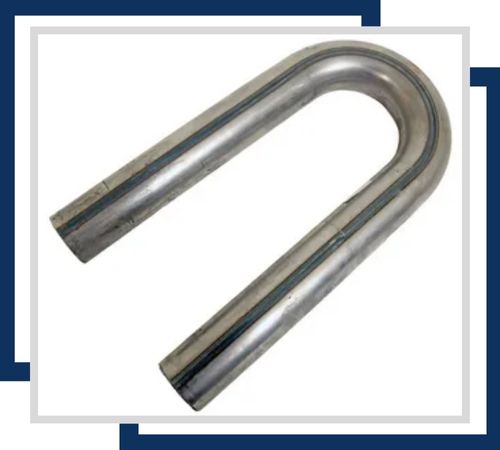

Available in dimensions from 0.5″ to 3″ outer diameter, 416 U-tubes are corrosion-resistant and ideal for heat exchangers where compact design and efficient heat transfer are required. Their U-shape allows for easier installation in tight spaces.

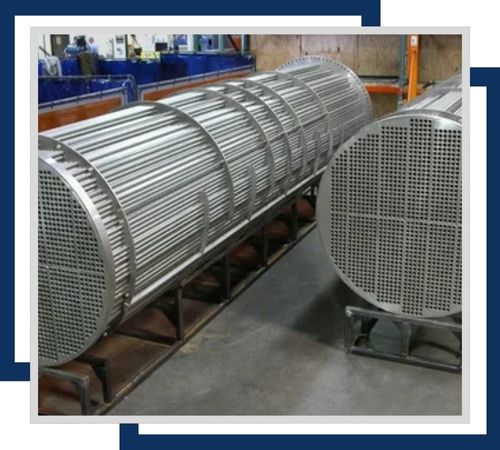

Ranging from 0.5″ to 2″ outer diameter, 416 condenser tubes offer good corrosion resistance and efficient heat transfer. They are used in condensers to cool steam and other fluids in power plants and industrial applications.

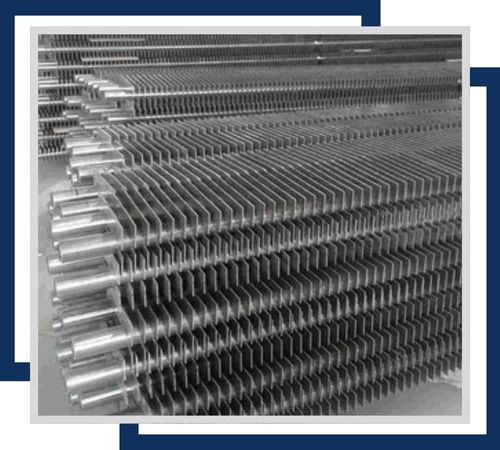

With sizes typically from 0.5″ to 3″ outer diameter, 416 fin tubes provide excellent corrosion resistance and enhanced heat transfer capabilities. They are used in heat exchangers and air coolers where maximizing surface area is critical for efficient operation.
Stainless Steel 416 tubing from Ed Stainless in Houston, Texas, finds broad usage in those applications requiring high machinability and medium corrosion resistance. It suits valve parts manufacturing, pump shafts, screw machine parts, and motor shafts. The strength and stability of the tubing to withstand mechanical stress make it suitable for usage in automotive, industrial, and marine environments. In addition, its superior machinability facilitates detailed and effective component manufacturing. Ed Stainless services customers needing custom tube solutions, providing products that satisfy exacting requirements for accuracy, integrity, and performance in a range of demanding uses.
