Ed Stainless is a Houston, Texas, USA-based manufacturer and supplier of stainless steel welded tubing that stands at the forefront of quality, innovation, and customer satisfaction. Operating in a myriad of industries such as oil & gas, chemical processing, food & beverage, and construction, Ed Stainless has built a reputation as a name to reckon with in stainless steel tubing. Through commitment to meeting high industry standards, their products demonstrate unmatched durability and corrosion resistance. Their cutting-edge manufacturing plant and highly trained staff guarantee accuracy and reliability in each product, rendering Ed Stainless an industry leader for stainless steel welded tube throughout Texas and the USA.
Stainless steel welded tube produced by Ed Stainless usually features grades such as 304, 316, and 321, providing superior corrosion resistance and strength. Chemical composition comprises chromium (18–20%), nickel (8–12%), and traces of carbon, manganese, and molybdenum, depending on the grade. The tubes have high tensile strength (upto 750 MPa), yield strength of approximately 200–400 MPa, and very good elongation (upto 40%). Having better mechanical properties, Ed Stainless tubing finds excellent applications in rigorous environments with the need for high strength, heat resistance, and endurability under extreme operating conditions.
| Range : | 1/8” NB to 36” NB, 1/4” OD to 36” OD |
|---|---|
| Outer Diameter : | 6.35 mm O.D to 114.3 mm O.D |
| Thickness : | 0.8 mm to 12.7 mm |
| Length : | up to 26 Meters |
| Specifications : | ASTM A312 / ASTM SA312 |
| Types : | As Welded, EFW, ERW |
| End : | Plain End, Beveled End |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304 | min. max. | – 0.08 | – 2.0 | – 0.75 | – 0.045 | – 0.030 | 18.0 20.0 | – | 8.0 10.5 | – 0.10 |
| 304L | min. max. | – 0.030 | – 2.0 | – 0.75 | – 0.045 | – 0.030 | 18.0 20.0 | – | 8.0 12.0 | – 0.10 |
| 304H | min. max. | 0.04 0.10 | – 2.0 | – 0.75 | -0.045 | – 0.030 | 18.0 20.0 | – | 8.0 10.5 | – |
| Element | SS 304 |
|---|---|
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.

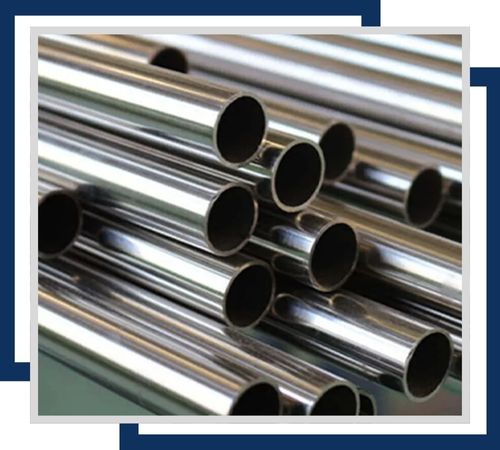

Stainless steel welded tubing are formed by welding stainless steel strips or plates. They offer strength, corrosion resistance, and cost-effectiveness, suitable for various industrial, commercial, and residential applications.

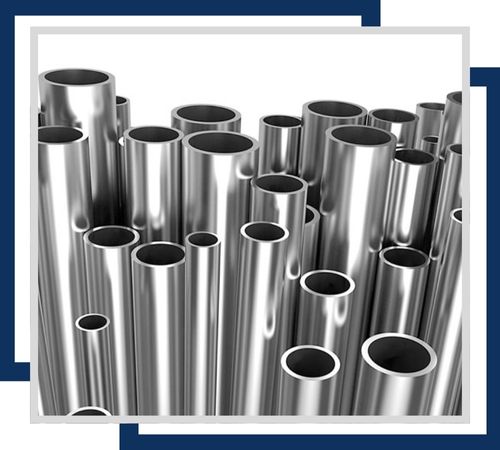

Stainless steel ERW (Electric Resistance Welded) tubing are produced by welding steel strips. They offer cost-effective, high-strength, and corrosion-resistant solutions for various industrial applications, providing durability and reliability.

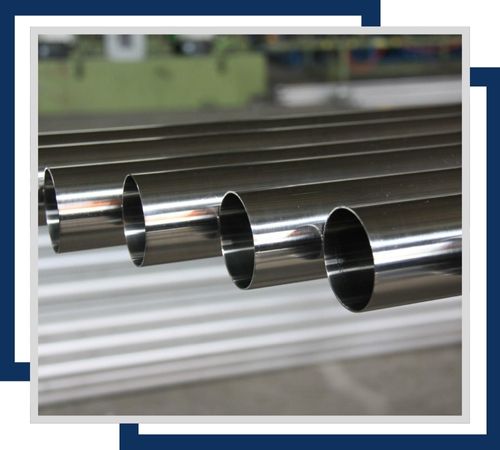

Stainless Steel EFW (Electric Fusion Welded) tubing are produced by electrically fusing stainless steel plates or strips. They offer high precision and strength, suitable for high-pressure and demanding applications.

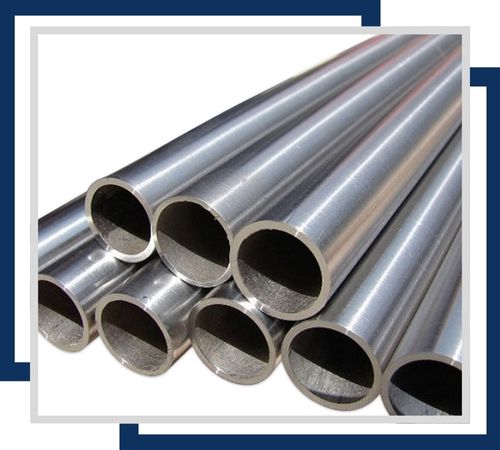

SS HFW (High-Frequency Welded) tubing are stainless steel tubings welded using high-frequency currents. They provide strong, precise joints, making them ideal for structural applications and high-strength requirements.

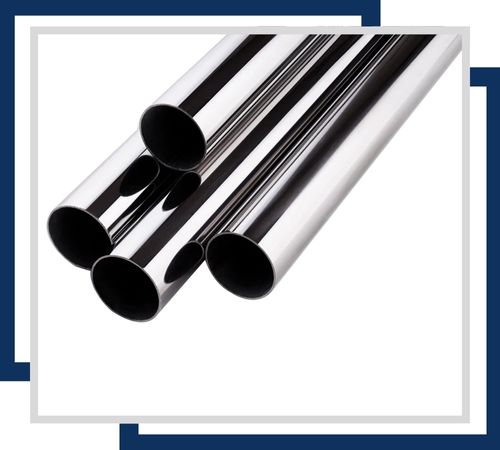

Stainless Steel butt-welded tubing are joined by aligning and welding the ends together. This method creates strong, leak-proof joints, ideal for high-pressure and high-temperature applications in various industries.
Stainless Steel laser-welded tubing use laser technology for precise, clean welds. They offer high accuracy, minimal thermal distortion, and are ideal for applications requiring tight tolerances and smooth finishes.
The tests include destructive testing methods and others which do not destroy the material but analyze the testing quality. We are developing into all modern aspects. Offering services to any customer that provides security assurance, we live achievement and a few policies such as consideration of diversity and advantage of best quality, quality reputation, and our name in the industry. Best quality speaks for itself, especially when the customer is satisfied after delivery. Logistical support at the most convenient part to ensure that shipping for emergency stock and standard packing materials is done correctly.
Ed Stainless welded stainless steel tubing is widely utilized in petrochemical, pharmaceutical, food processing, automobile, and construction industries. Tubes of this material are generally used for heat exchangers, instrument lines, fluid and gas transfer lines, structural uses, and sanitary piping. Due to their superior resistance to corrosion, these tubes are well suited for coastal and marine environments. They are utilized for surgical instruments and hospital equipment in the medical sector. Ed Stainless offers tubing solutions specifically designed to meet the stringent standards of every industry, providing performance, safety, and efficiency in numerous commercial and industrial uses throughout Texas and worldwide.
