Ed Stainless is a reputable Stainless Steel 439 Tubing manufacturer and supplier in Houston, Texas, USA. Ed Stainless has a solid reputation for precision engineering high-quality stainless steel products to various industries in the United States. Their Stainless Steel 439 Tubing is especially famous for having superior resistance against corrosion, superior durability, and cost-effective performance, making it suitable for use in both the automotive and industrial sectors. Ed Stainless strives to achieve international standards of quality, ensure prompt delivery, and provide tailored tubing solutions fitting the varied demands of its customers in Texas and other locations.
Ed Stainless produces Stainless Steel 439 Tubing from a ferritic stainless steel alloy containing mostly chromium (17–19%), titanium (as a stabilizer), and trace carbon content. The composition of these materials improves oxidation and corrosion resistance, particularly in high-temperature applications. Mechanical properties consist of a tensile strength of about 415 MPa, yield strength of about 205 MPa, and elongation of about 20%. The tubing has good formability and weldability as well. All these features render Stainless Steel 439 Tubing by Ed Stainless ideal for demanding applications with both strength and thermal stability requirements.
| GRADES | TP 439 Stainless Steel Tubes / UNS S43035 / DIN 1.4510 |
| SIZE | 1/2″ NB to 24″ NB |
| STANDARDS | ASTM A213, ASTM A249, ASTM A554, ASTM A269, ASTM A270, ASTM A790, ASTM A789 |
| TYPE | Seamless Tubes, Welded Tubes, EFW Tubes, ERW Tubes, Fabricated Tubes, Cold Drawn Welded Tubes (CDW Tubes) |
| FORM | Round Tubes, Square Tubes, Rectangular Tubes, Oval Tubes, Hydraulic Tube, etc. |
| END | Plain End, Treaded, Beveled End |
| TOLERANCE on Length | Commercial Length: 6000mm +/- 30mm Fix Length: from 1200 mm up to 12000mm with a tolerance up to -0/+ 5mm |
| FINISH | Seamless, Welded, Brushed, Pickled, Solution Annealed and Pickled up to O.D. 219.1mm, Polished Grit 120 – 600, Mirror Polished |
| Element | 439 |
| Carbon | 0.030 |
| Chromium | 17.0-19.0 |
| Nickel | 0.50 |
| Manganese | 1.00 |
| Silicon | 1.00 |
| Nitrogen | 0.030 |
| Phosphorus | 0.040 |
| Sulfur | 0.030 |
| Aluminum | 0.15 |
| Titanium | 0.20 +4(C+N) min |
| Property | 439 |
| Yield Strength, min. (ksi) | 30 |
| Tensile Strength, min. (ksi) | 60 |
| Elongation, min. (%) | 22 |
| Hardness, max. (Rb) | 89 |
Contact us to get a quick quote for your requirement.
We ensures top quality stainless steel 439 tubing through rigorous testing and certification programs. Each device undergoes extensive scrutiny, including mechanical and chemical analysis, to meet industry standards. Certified by the relevant authorities, Shashank stainless offers durability, corrosion resistance and performance for a variety of applications in various fields.

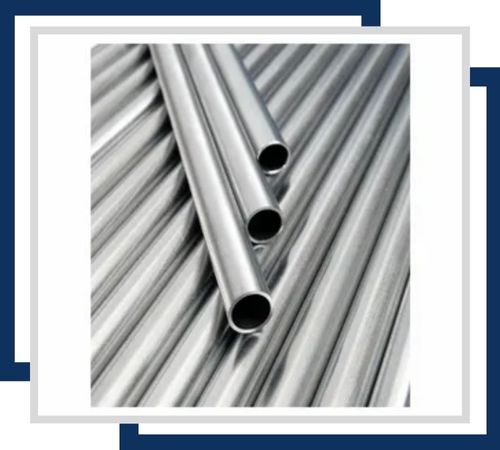

This tubing is manufactured without any seams or welds, ensuring a uniform structure and high strength. It is available in a range of sizes, typically from 1/8 inch to 4 inches in diameter. Known for its excellent corrosion resistance and durability in high-temperature applications.
Produced by welding flat sheets of stainless steel into a tube shape, this option is often more cost-effective than seamless tubing. It is available in sizes ranging from 1/4 inch to 8 inches in diameter. Offers good corrosion resistance and is suitable for less demanding environments.

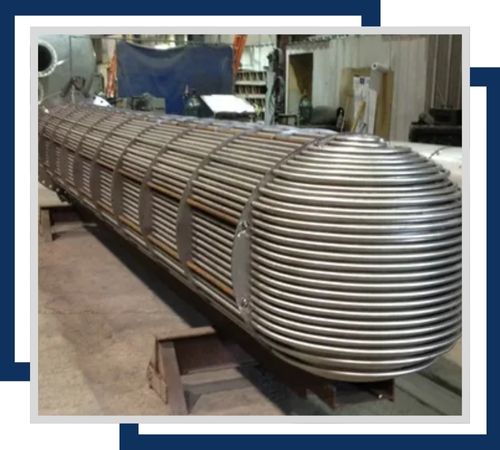

Designed for use in heat exchangers, this tube type features enhanced thermal conductivity and resistance to thermal cycling. Commonly available in sizes from 1/2 inch to 2 inches in diameter. It provides good corrosion resistance and thermal stability.

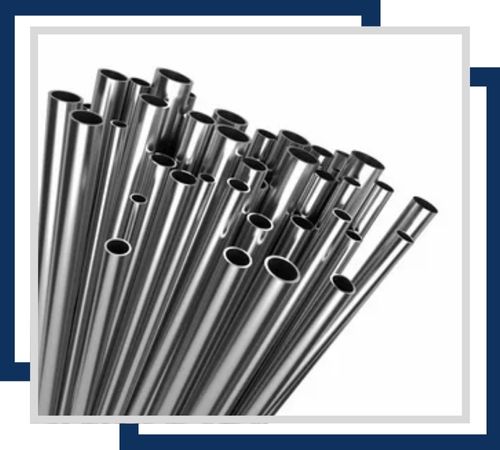

Ideal for precise measurement and control applications, this tubing is available in small diameters, typically from 1/16 inch to 1 inch. It offers high corrosion resistance and maintains integrity under high pressure and temperature conditions.

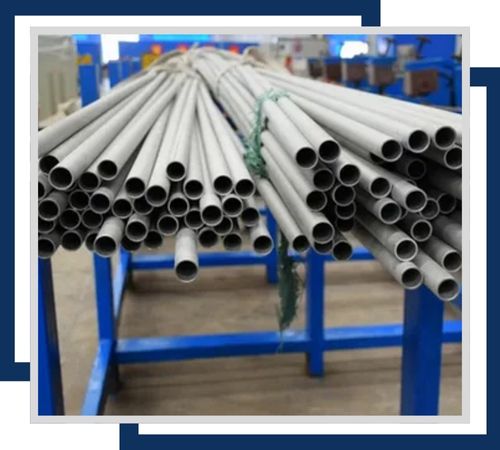

Used in boilers for transporting steam and other fluids, these tubes are available in sizes from 1 inch to 4 inches in diameter. They are highly resistant to oxidation and corrosion at elevated temperatures.

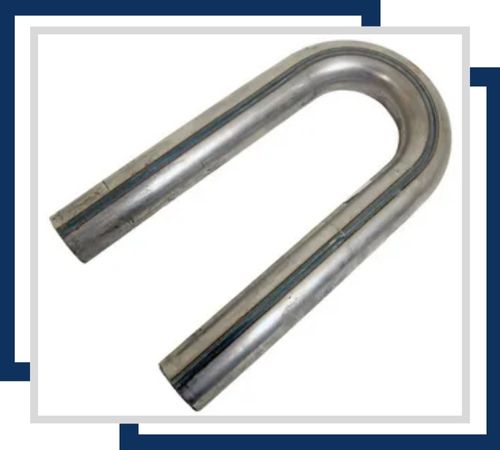

Shaped in a U-form, these tubes are used in applications where a flexible connection is needed, often in heat exchangers. They come in sizes from 1/2 inch to 2 inches in diameter. Known for their resistance to corrosion and ability to handle thermal expansion.

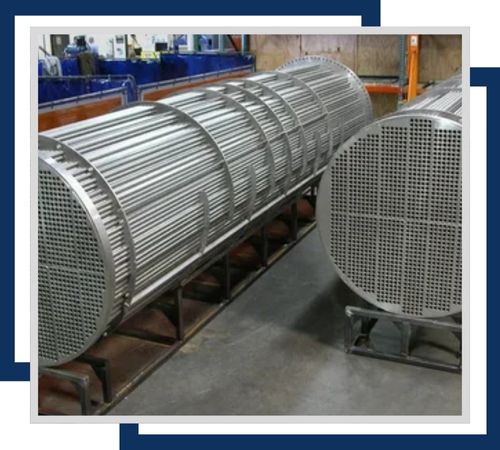

This tube type is used in condensers for heat exchange processes, typically available in sizes ranging from 1/2 inch to 2 inches in diameter. It offers high resistance to corrosion and fouling in challenging environments.

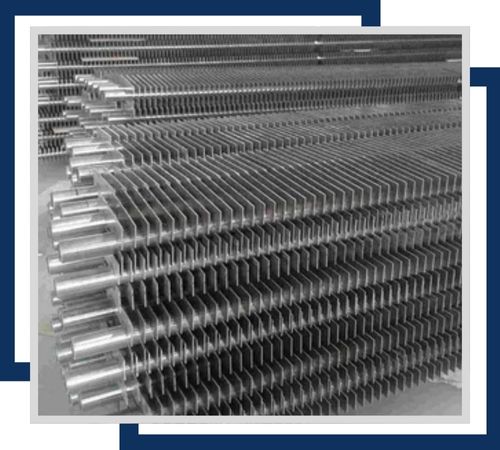

Equipped with fins to enhance heat transfer efficiency, these tubes are available in various sizes, commonly from 1 inch to 3 inches in diameter. They offer good corrosion resistance and are used in applications requiring efficient heat dissipation.
Stainless Steel 439 Tubing from Ed Stainless in Texas, USA, has vast applications in car exhaust systems due to its high heat resistance and anti-corrosion features. It is commonly used in commercial vehicle parts, mufflers, catalytic converters, and other systems for high temperatures. Outside the automobile industry, it’s also applied in industrial heat exchangers, residential furnace parts, and agricultural machinery. The tubing’s strength, formability, and oxidation resistance make it an ideal choice for applications requiring both performance and longevity under thermal stress. Ed Stainless’s tubing solutions meet rigorous industry standards and are trusted by engineers across multiple sectors.
