Ed Stainless is an established stainless steel mechanical tubing manufacturer and supplier headquartered in Houston, Texas, USA. With a reputation for precision engineering and quality materials, Ed Stainless supplies an array of industries such as the automotive, construction, energy, and manufacturing sectors. The organization prides itself on customer satisfaction, timely delivery, and flexible solutions that meet rigorous industry standards. Through the use of advanced manufacturing technologies and strict quality control, Ed Stainless offers hard and corrosion-resistant tubing products well suited to demanding mechanical uses across Texas and the United States.
Ed Stainless stainless steel mechanical tubing comes in a number of grades, such as 304, 316, and 409, all with superior corrosion resistance and strength. Standard composition contains chromium (18–20%), nickel (8–10.5%), and traces of carbon, manganese, and molybdenum based on grade. They have very good mechanical properties with tensile strength of 75,000–95,000 psi and good elongation and hardness. Their high fatigue strength and weldability provide them with excellent suitability for structural and mechanical applications, especially for severe environments where strength and reliability are paramount.
|
Dimensions |
: |
ASTM, ASME and API |
|
Standard |
: |
ASTM / ASME SA213 |
|
Size |
: |
1/8″NB TO 30″NB IN |
|
Specialized in |
: |
Large Diameter Size |
|
Schedule |
: |
SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
|
Form |
: |
Round, Square, Rectangular, Hydraulic Etc |
|
Type |
: |
Seamless |
|
Length |
: |
Single Random, Double Random & Cut Length. |
|
End |
: |
Plain End, Beveled End, Threaded |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | 0.10 max |
SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 | – |
SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 0.10 max |
SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
SS 904L | 0.020 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | – |
Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
SS 304 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
SS 904L | 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
Contact us to get a quick quote for your requirement.
We provides thorough testing and certification of stainless steel industrial tubing, ensuring quality and efficiency. Each tube undergoes rigorous testing, including dimensional testing, mechanical properties and surface integrity. Certifications such as Mill Test Reports (MTR) and adherence to international standards enhance reliability and customer satisfaction in various industries.

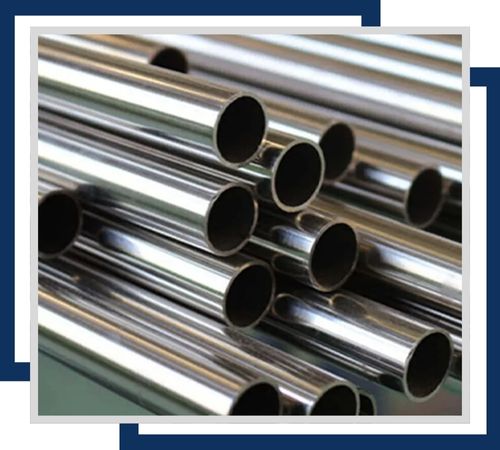

Stainless steel mechanical tubing is a high-strength, corrosion-resistant tube used in various industrial applications. It provides structural support, durability, and reliability in demanding environments, including aerospace, automotive, and chemical industries.

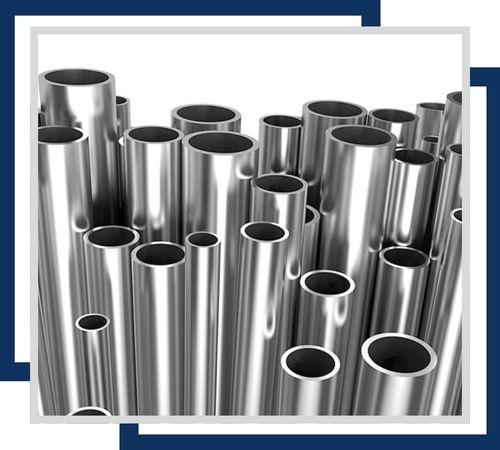

Alloy steel mechanical tubing is a high-strength, durable tube made from alloyed steel, designed for demanding applications. It offers enhanced properties like improved toughness and resistance to high temperatures and stress.

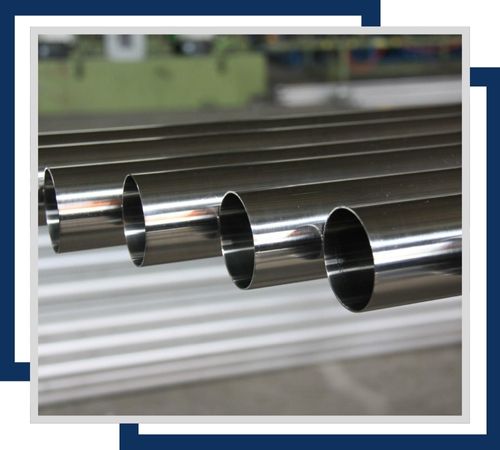

Aluminum mechanical tubing is a lightweight, corrosion-resistant tube used in various applications. It provides strength and durability while being easy to fabricate, making it ideal for aerospace, automotive, and structural uses.

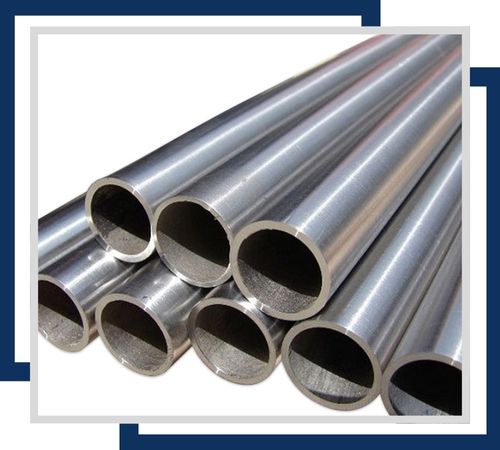

Cold drawn mechanical tubing is produced by drawing metal through a die at room temperature, enhancing its dimensional accuracy, surface finish, and mechanical properties, making it ideal for precision engineering and high-stress applications.

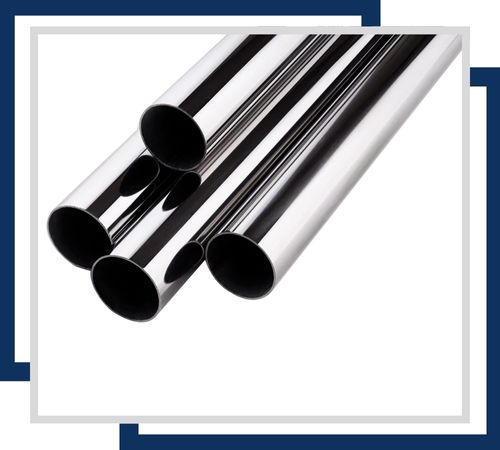

Heat-treated mechanical tubing is metal tubing that has undergone controlled heating and cooling processes to enhance its strength, hardness, and wear resistance, making it suitable for high-stress and high-performance applications.

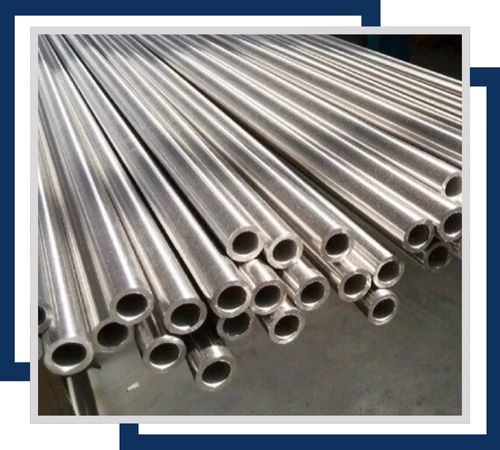

Seamless mechanical tubing is a type of tubing manufactured without welded seams, offering uniform strength and reliability. It’s used in high-pressure and critical applications due to its consistent performance and durability.
Ed Stainless’s stainless steel mechanical tubing is extensively applied in various industries owing to its remarkable strength, corrosion resistance, and versatility. Automotive components such as exhaust systems and structural supports are typical applications, as well as industrial machinery, hydraulic cylinders, and heat exchangers. In construction, it is utilized for handrails, frameworks, and architectural details. The tubing is also vital in oil and gas operations, marine environments, and food processing plants where durable and hygienic materials are needed. Ed Stainless maintains that its products have the capability to fulfill the high-performance requirements of the applications through accurate manufacturing and quality assurance procedures.
