Ed Stainless is a reputable manufacturer and provider of Stainless Steel 304L Bars, located in Houston, USA. SS 304L is the low-carbon variant of 304 stainless steel, providing outstanding corrosion resistance, superior weldability, and unmatched cleanliness. It is particularly suitable for application in chemical processing, food-grade systems, marine hardware, and pharmaceutical equipment. Our 304L bars are made in accordance with ASTM A276 and other international specifications, ranging from a variety of sizes, finishes, and customizations. With a focus on quality, performance, and timely delivery, Ed Stainless addresses clients in various industries with dependable stainless steel bar solutions.
Stainless Steel 304L Bars have 18–20% chromium, 8–12% nickel, and a low carbon content of ≤0.03%, thereby reducing carbide precipitation on welding. These bars provide tensile strength of 485–620 MPa, yield strength of around 170–200 MPa, and elongation of 35–40%. Low carbon provides higher weldability and lower susceptibility to intergranular corrosion. SS 304L is non-magnetic after annealing and gives superior resistance to corrosion in oxidizing conditions. It provides excellent formability, tensile strength, and clean surface finish and hence is suitable for sanitary and structural uses.
| Specifications | ASTMA276 / A479, ASME SA276 / A479 |
|---|---|
| Dimensions | EN, DIN, JIS, ASTM. BS, ASME, AISI |
| 304L Round Bar Size | 3mm ~ 800mm |
| 304L Square Bar Size | 4mm * 4mm ~ 100mm * 100mm |
| 304L Flat Bar Size | 2mm ~ 100 mm |
| 304L Hex Bar Size | 2mm ~ 100 mm |
| Thickness | 50 mm To 6000 mm Long |
| Length | 1 to 6 Meters, Custom Cut Length |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
we tested and certified to deliver superior quality that matches international standards. Our products are tested for durability, durability, and corrosion resistance. It is a leading authority-certified product that meets the industry requirements, with exceptional reliability, security, and performance in various applications.

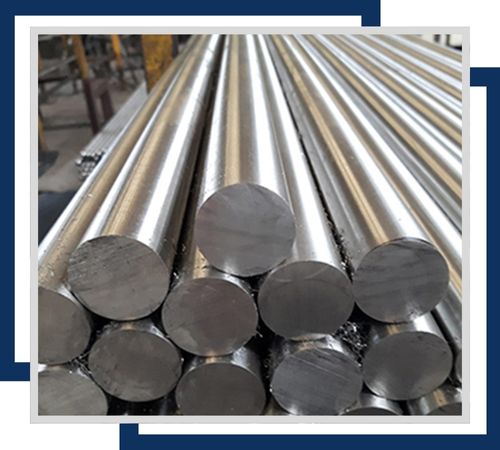

Offering excellent corrosion resistance, stainless steel 304L round bars are available in sizes ranging from 5mm to 300mm. These rods are used in applications requiring high strength and welding, such as pharmaceutical and food processing.

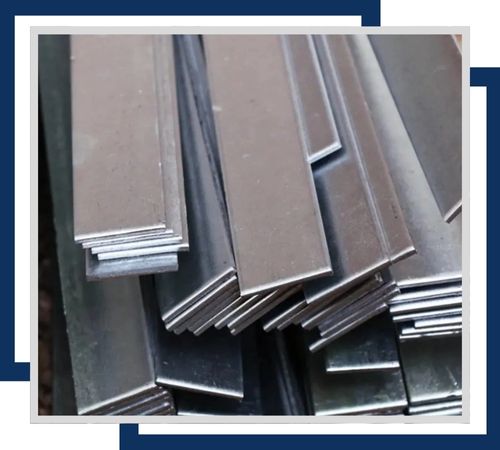

Stainless steel 304L flat bars provide excellent corrosion resistance and range from 3mm to 50mm in thickness and up to 300mm in width are ideal for structural supports, brackets and construction work.

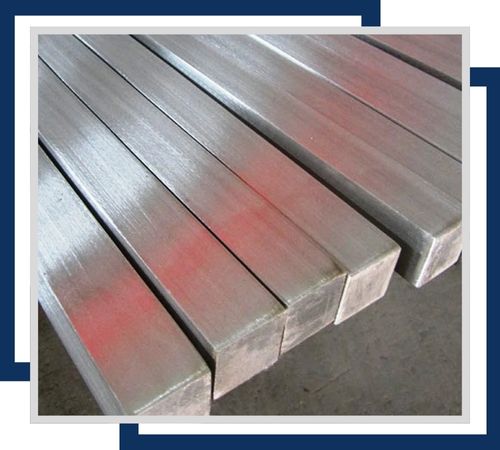

Known for their corrosion resistance, the stainless steel 304L square bars range in size from 5mm to 100mm. It is commonly used in construction, building management, and construction projects where strength and weldability are important.

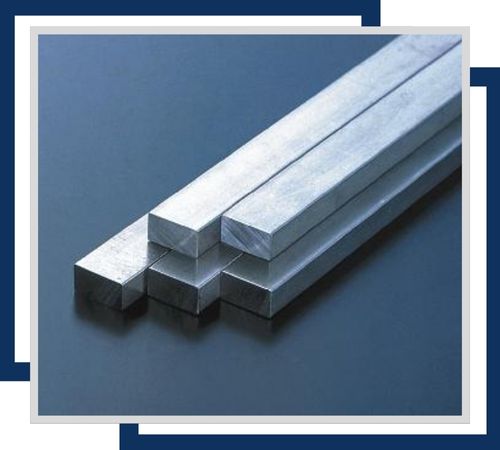

The stainless steel 304L rectangular bars offer excellent corrosion resistance and are available in dimensions from 10mm x 20mm to 100mm x 300mm. They are suitable for applications requiring high strength and durability, including construction and industrial applications.

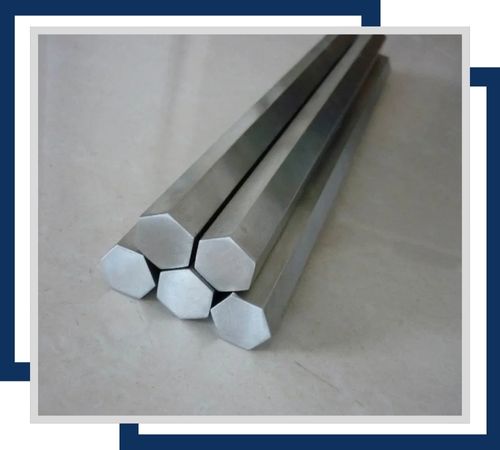

Featuring corrosion resistance, stainless steel 304L hexagonal bars are available in flats from 10mm to 100mm. These bars are used mainly in the aerospace, automotive and construction industries due to their unique design and strength.

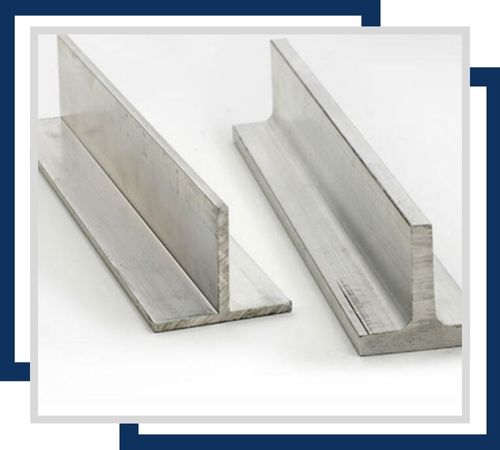

The stainless steel 304L T-bar offers excellent corrosion resistance and is available in sizes from 10mm x 10mm to 100mm x 100mm. Used in structural supports, brackets and construction projects where weldability and strength are important.
Stainless Steel 304L Bars are employed in those applications where corrosion resistance and clean, weldable surfaces are needed. Typical applications include pressure vessels, chemical tanks, food processing equipment, architectural structures, and piping systems. The low carbon levels render 304L suitable for welding without post-weld heat treatment and ideal for fabrication and assembly. It finds extensive application in the pharmaceutical, marine, dairy, and beverage industries because it is very sanitary. 304L works effectively on atmospheric, fresh water, and mild chemical conditions. Ed Stainless offers high-purity 304L bars according to hygiene and structural standards for industrial and commercial projects of a wide variety.
