Ed Stainless is a top-notch manufacturer and supplier of Stainless Steel 410 Bars based in Houston, Texas, USA. Known for their dedication to quality and innovation, Ed Stainless provides high-performance stainless steel products designed for a variety of industrial uses. With cutting-edge manufacturing facilities and a skilled team of professionals, the company guarantees precise engineering and dependable service. The Stainless Steel 410 Bars from Ed Stainless are celebrated for their strength, corrosion resistance, and durability, making them perfect for critical applications across numerous industries. Serving clients all over the country, Ed Stainless truly excels in delivering stainless steel solutions.
The Stainless Steel 410 Bars from Ed Stainless primarily consist of chromium (11.5–13.5%), along with carbon (≤0.15%), manganese, silicon, and trace amounts of sulfur and phosphorus. This martensitic stainless steel boasts excellent hardenability and moderate resistance to corrosion. Its mechanical properties include a tensile strength ranging from 480 to 690 MPa, a yield strength of about 275 MPa, and hardness levels between 170 and 210 HB. These bars demonstrate impressive mechanical strength, wear resistance, and toughness, especially after undergoing heat treatment. Ed Stainless ensures that all 410 Bars comply with ASTM standards, guaranteeing consistent quality, performance, and reliability in demanding operational settings.
| Specification | ASTM A479/ SA479 ASTM A276/ ASME SA276 |
|---|---|
| Grade | Stainless Steel 410 (UNS S41000) |
| Hex Bar size | 18 to 57mm (11/16″ – 2-3/4″) |
| Round bar size | OD 4mm to 500mm |
| Square bar size | 18mm to 47mm (11/16″- 1-3/4″) |
| Billet Size | 1/2″- 495mm Dia. |
| Rectangles Size | 33 x 30mm – 295 x 1066mm |
| Bright Bar | OD 4mm to 100mm |
| Tolerance | K12 H12, K10, H9, H11, H8, H13K9, H10, K11, or as per need |
| Flat bar size | 1/2” to 10” in thickness of 2 to 150mm |
| Angle bar size | 3*20*20~12*100*100 |
| Finish | centreless ground, Cold (bright) drawn, hot rolled, peeled, smooth turned, hot rolled annealed, slit rolled edge, Bright, Rough Turned, Grinding, Polish & Black |
| Form | Flat Bar, Hollow, Round, Square, Triangle, Rectangle, Half Round Bar, Rod, T-Bar, Precision Ground Bar, Hex (A/F), Blocks, Channel Bar, Threaded, Round Rod, Billet, Profiles, I/H Bar, Ingot, Rings, Forging etc. |
| Technique | 440C Stainless Steel Hot Rolled, Cold Drawn, Rod, Forged Round Bar, Cold Rolled |
| Condition | annealed, Hardened & tempered |
| Section | 3.0 -12.0 mm thickness, 80 x 40 to 150 x 75mm section |
| Channel Bar | 5.0 – 6.0mm thickness |
| Surface | Bright, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Polished, Hairline |
| Hollow Bar | 32mm OD x 16mm ID – 250mm OD x 200mm ID |
| Grade | AISI | Stainless Steel Bolts & Nuts Chemical Composition (% maxima unless stated) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Cr | Mo | Ni | Cu | ||||||
| 410 | SS 410 | 0.09-0.15 | 1.0 | 1.0 | 0.05 | 0.03 | 11,5 – 14,0 | – | 1 | – | ||||
| Type | Tensile Strength | Yield Strength (0.2% offset) | Elongation in 2” (50.80mm) % | Hardness (Rockwell) | ||
|---|---|---|---|---|---|---|
| Ksi | MPa | Ksi | MPa | |||
| 410 | 70 | 483 | 45 | 310 | 25 | B80 |
Contact us to get a quick quote for your requirement.
We ensures that all 410 stainless steel panels are rigorously tested for quality, strength and durability. Each product is certified to appropriate industry standards, including mechanical components, corrosion resistance and finishes. These certifications assure reliable performance and compliance with global quality standards in industrial applications.

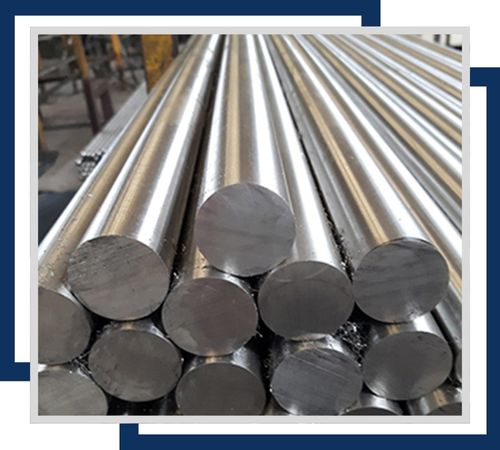

Corrosion-resistant and heat-treatable, Stainless Steel 410 Round Bars are available in diameters from 0.5″ to 12″. They are ideal for applications in cutlery, automotive parts, and industrial components requiring high hardness and moderate corrosion resistance.

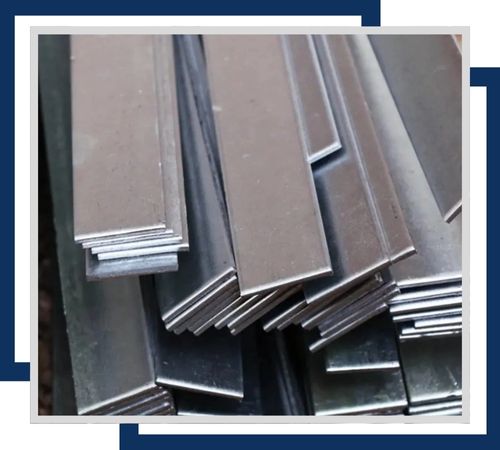

Stainless Steel 410 Flat Bars offer high strength and good machinability, with thicknesses from 0.25″ to 6″ and widths up to 12″. Suitable for manufacturing tools, hardware, and parts that need durability and wear resistance.
Corrosion-resistant Stainless Steel 410 Square Bars are available in sizes from 0.5″ to 6″ on each side. They are used in applications requiring high hardness and resistance to wear, such as in industrial machinery and components.

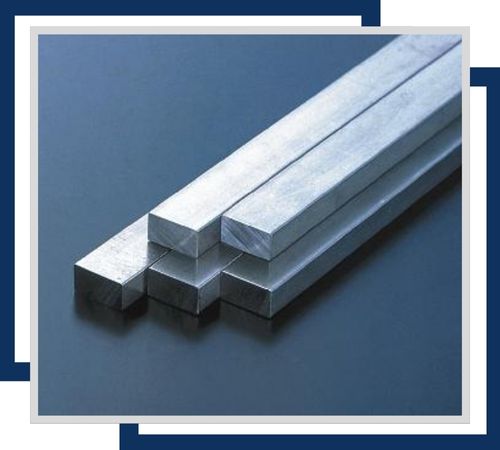

Stainless Steel 410 Rectangular Bars provide high strength and corrosion resistance, available in sizes from 0.5″ x 1″ to 6″ x 12″. Ideal for heavy-duty applications, including parts and tools that need excellent durability and wear resistance.

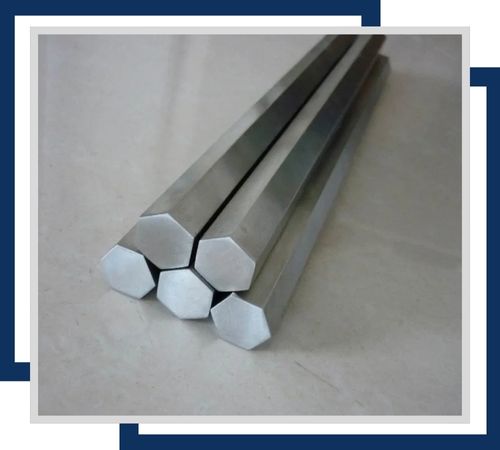

Offering good corrosion resistance and machinability, Stainless Steel 410 Hexagonal Bars come in sizes from 0.5″ to 4″ across flats. Suitable for use in hardware, machinery, and parts that require strength and durability.

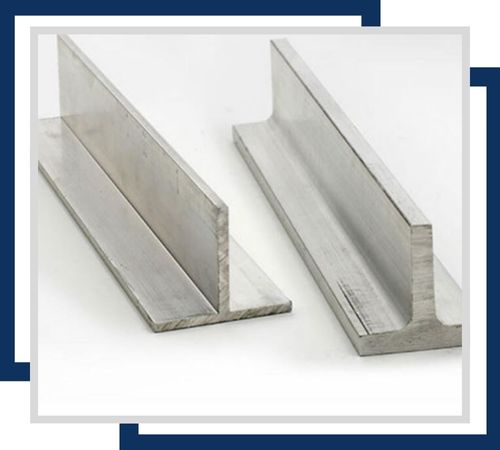

Corrosion-resistant Stainless Steel 410 T-Bars are available in dimensions from 0.5″ x 0.5″ to 6″ x 6″. They are ideal for structural and industrial applications where high hardness and wear resistance are needed.
The Stainless Steel 410 Bars produced by Ed Stainless find extensive use across various industries due to their strength, heat resistance, and corrosion tolerance. They are commonly used in applications such as shafts, fasteners, valves, pump parts, and surgical instruments. These bars are particularly well-suited for the petrochemical, automotive, aerospace, and power generation sectors, where high mechanical performance and resistance to scaling at elevated temperatures are crucial. Ed Stainless offers customized solutions for clients requiring high-performance components in challenging environments, making their 410 Bars a go-to choice for engineering applications.
