Ed Stainless is a top-notch manufacturer and supplier of premium stainless steel products, proudly based in Houston, Texas. They specialize in Stainless Steel 314 Bars, catering to various industries throughout Texas and the USA with materials that are precision-engineered for durability and performance. With a reputation for strict quality control and prompt delivery, Ed Stainless blends cutting-edge manufacturing techniques with outstanding customer service. Their stainless steel 314 bars are designed to meet a wide range of industrial needs, establishing Ed Stainless as a reliable name in metal supply across sectors like aerospace, chemical processing, and high-temperature applications in the region.
The Stainless Steel 314 bars from Ed Stainless are primarily made up of high chromium (around 25%) and nickel (around 20%), which gives them remarkable oxidation resistance at high temperatures. This alloy also contains trace amounts of carbon, manganese, silicon, and other elements that boost strength and durability. Mechanically, these bars provide high tensile strength, good ductility, and excellent creep resistance, making them perfect for challenging environments. Ed Stainless guarantees that each batch meets strict standards, delivering bars with consistent chemical composition and mechanical properties that are ideal for heat-resistant and corrosion-resistant applications.
Specification : ASTM A276, A479 / ASME SA276, SA479
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Round Bars : Outside Diameter in the range of 4mm to 500mm
Bright Bars : Outside Diameter in the range of 4mm to 100mm
Hex Bars : 18mm – 57mm (11/16″ to 2-3/4″)
Square Bars : 18mm – 47mm (11/16″ to 1-3/4″)
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Length : 1 to 6 Meters, Custom Cut Lengths
Form : Round, Square, Hex (A/F), Rectangle Etc.
| Element | Content (%) |
|---|---|
| Iron, fe | Balance |
| Chromium, Cr | 19-26 |
| Nickel, Ni | 19-22 |
| Manganese, Mn | 2 |
| Silicon, Si | 1.5-3 |
| Carbon, C | 0.25 |
| Sulfur, S | 0.03 |
| Phosphorous, P | 0.045 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 689 MPa | 99900 psi |
| Yield strength | 345 MPa | 50000 psi |
| Modulus of elasticity | 200 GPa | 29000 ksi |
| Elongation at break (in 50 mm) | 40% | 40% |
| Hardness, Rockwell B | 85 | 85 |
Contact us to get a quick quote for your requirement.
We ensures that it provides the most excellent quality on Stainless Steel 314 Bars in terms of being tested and certification. Each and every bar passed through the high-quality mechanical, chemical analysis; tensile strength, hardness strength, corrosion testing, and with reports like a Mill Test Certificate, which verifies the industry specification and customer satisfaction.

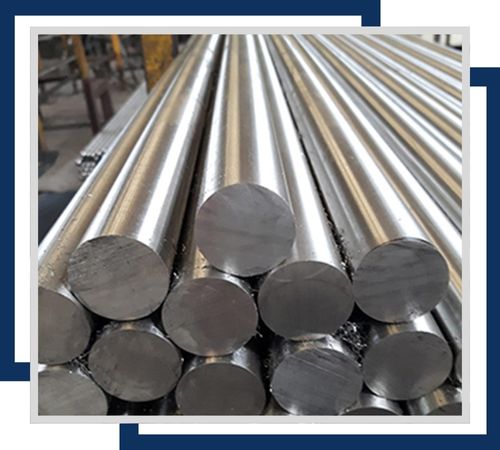

Corrosion-resistant and designed for high-temperature applications, Stainless Steel 314 Round Bars are available in diameters from 0.5″ to 12″. Ideal for use in industrial equipment and heat exchangers.

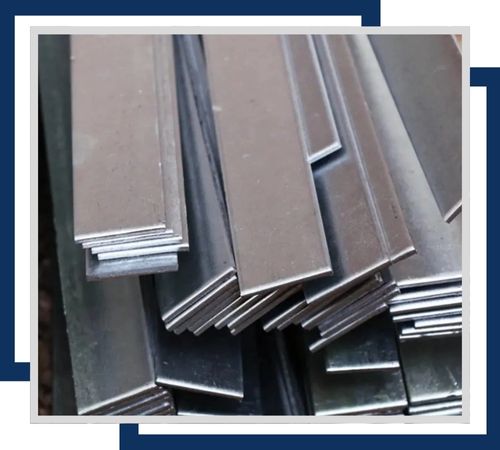

Stainless Steel 314 Flat Bars offer excellent resistance to high temperatures, available in thicknesses from 0.25″ to 6″ and widths up to 12″. Perfect for structural components and industrial uses.

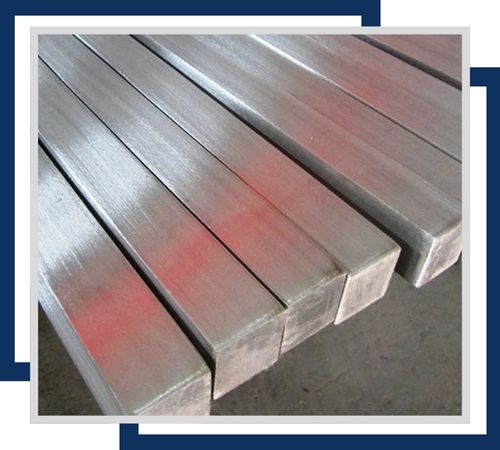

Featuring superior heat resistance, Stainless Steel 314 Square Bars come in sizes from 0.5″ to 6″ on each side. They are suitable for applications requiring high strength and thermal stability.

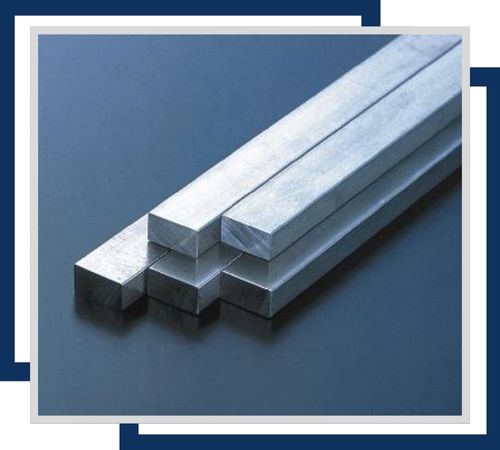

Stainless Steel 314 Rectangular Bars provide excellent high-temperature resistance, available in sizes from 0.5″ x 1″ to 6″ x 12″. Ideal for heavy-duty applications and components exposed to extreme conditions.

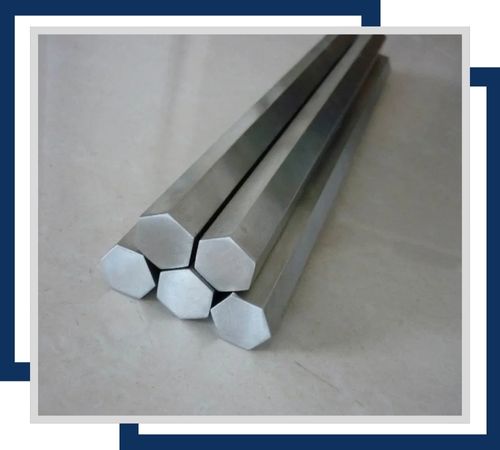

Offering exceptional heat resistance, Stainless Steel 314 Hexagonal Bars are available in sizes from 0.5″ to 4″ across flats. Suitable for aerospace and chemical processing applications requiring durable performance.

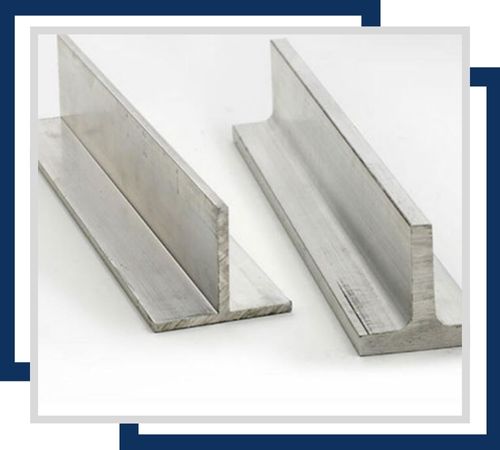

Corrosion-resistant Stainless Steel 314 T-Bars come in dimensions from 0.5″ x 0.5″ to 6″ x 6″. They are ideal for structural applications and machinery needing high-temperature strength and durability.
Ed Stainless’s Stainless Steel 314 bars are extensively utilized in industries that demand outstanding heat and corrosion resistance. These bars are perfect for crafting furnace components, heat exchangers, and high-temperature tooling, commonly found in aerospace, power generation, and chemical processing facilities. Their impressive oxidation resistance up to 1100°C makes them suitable for harsh environments where thermal stability is essential. Additionally, they are used in the manufacturing of automotive exhaust systems, furnace parts, and other equipment that endures extreme conditions. Ed Stainless supplies these bars to clients across Texas and beyond, supporting vital industrial applications with reliable solutions.
