Ed Stainless Manufacturer and Suppliers, located in Houston, Texas, is a top-notch provider of high-quality stainless steel products, with a special focus on Stainless Steel 309 Bars. Known for their exceptional quality and precision engineering, Ed Stainless serves a variety of industries throughout the USA. Their skilled manufacturing processes guarantee durability and resistance to corrosion, establishing them as a reliable name in stainless steel solutions. With a strong commitment to excellence, prompt delivery, and competitive pricing, Ed Stainless truly shines as a leading manufacturer and supplier of Stainless Steel 309 Bars in Texas, adeptly meeting both industrial and commercial needs with outstanding reliability and customer service.
The Stainless Steel 309 Bars from Ed Stainless Manufacturer and Suppliers in Texas feature a high chromium (23%) and nickel (13%) content, providing remarkable oxidation resistance even at high temperatures. The alloy’s well-balanced composition, which includes carbon, manganese, and silicon, boosts its strength and toughness. These bars showcase a tensile strength of around 75 ksi and a yield strength close to 30 ksi, along with impressive elongation and hardness. The strong mechanical properties, paired with resistance to thermal fatigue and scaling, make Ed Stainless 309 Bars perfect for demanding industrial applications that require both strength and durability.
| Specifications | ASTM A276, ASTM A479 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 309 Round Bars | Outside Diameter in the range of 4mm to 500mm |
| SS 309 Bright Bars | Outside Diameter in the range of 4mm to 100mm |
| SS 309 Hex Bars | 18mm – 57mm (11/16″ to 2-3/4″) |
| SS 309 Square Bars | 18mm – 47mm (11/16″ to 1-3/4″) |
| SS 309 Flat Bars | 1/2” to 10” in thickness range of 2mm to 150mm, Custom Size Stainless Steel Flats available |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
Element | Content (%) |
Iron, Fe | 60 |
Chromium, Cr | 23 |
Nickel, Ni | 14 |
Manganese, Mn | 2 |
Silicon, Si | 1 |
Carbon, C | 0.20 |
Phosphorous, P | 0.045 |
Sulfur, S | 0.030 |
Properties | Metric | Imperial |
Tensile strength | 620 MPa | 89900 psi |
Yield strength (@ strain 0.200%) | 310 MPa | 45000 psi |
Izod impact | 120 – 165 J | 88.5 – 122 ft-lb |
Shear modulus (typical for steel) | 77 GPa | 11200 ksi |
Elastic modulus | 200 GPa | 29008 ksi |
Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
Elongation at break (in 50 mm) | 45% | 45% |
Hardness, Brinell | 147 | 147 |
Hardness, Rockwell B | 85 | 85 |
Hardness, Vickers (converted from Rockwell B hardness) | 169 | 169 |
Contact us to get a quick quote for your requirement.
We carries out rigorous performance tests on complete batches of Stainless Steel 309 Bars with regards to chemical composition, mechanical properties, and the degree of corrosion resistance. Our products are certified by recognized authorities regarding conformity to international standards for ensuring reliability and consistency with every delivery.

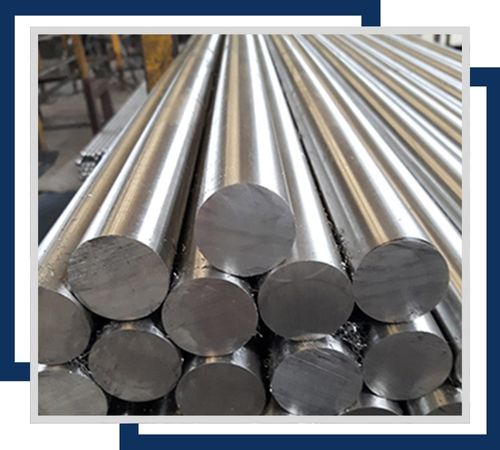

Stainless Steel 309 Round Bars offer excellent corrosion resistance and are available in diameters ranging from 6 mm to 200 mm. Ideal for high-temperature applications and structural uses, they ensure durability and strength.

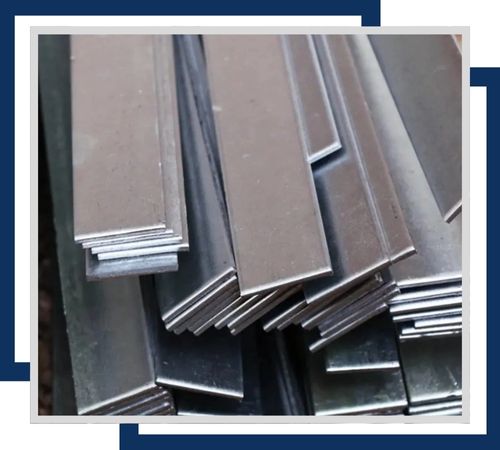

Featuring good corrosion resistance, Stainless Steel 309 Flat Bars come in widths from 20 mm to 150 mm and thicknesses from 5 mm to 50 mm. These bars are used in construction, manufacturing, and industrial applications for their thermal stability.

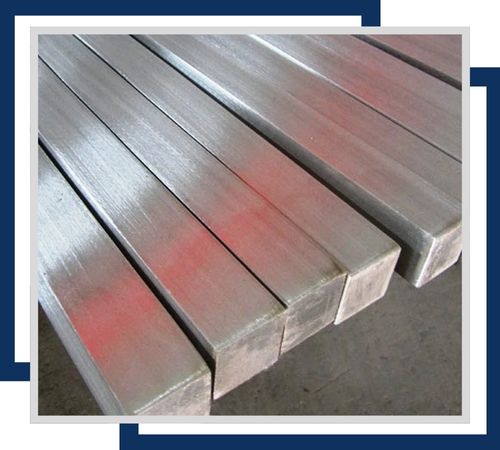

Known for their corrosion resistance, Stainless Steel 309 Square Bars are available in sizes from 10 mm to 100 mm. They are utilized in various structural and industrial applications where strength and heat resistance are required.

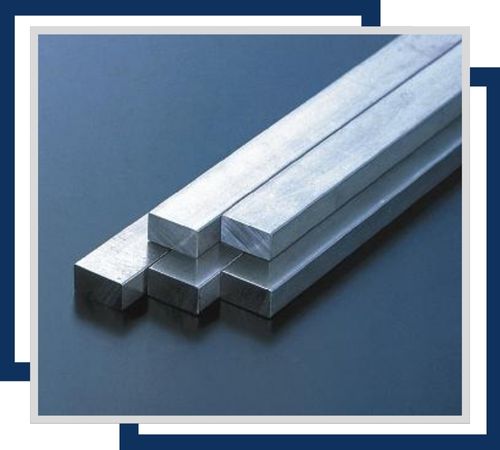

Stainless Steel 309 Rectangular Bars provide corrosion resistance and are offered in dimensions like 20 mm x 10 mm to 150 mm x 50 mm. These bars are suitable for use in high-temperature environments and structural applications.

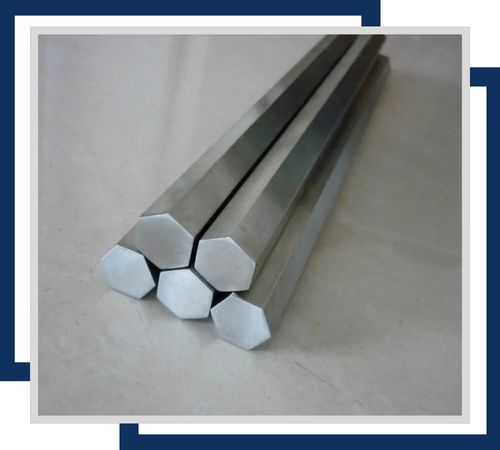

Offering corrosion resistance, Stainless Steel 309 Hexagonal Bars are available in sizes ranging from 6 mm to 50 mm across flats. They are often used in machining, fabrication, and for applications requiring heat resistance.

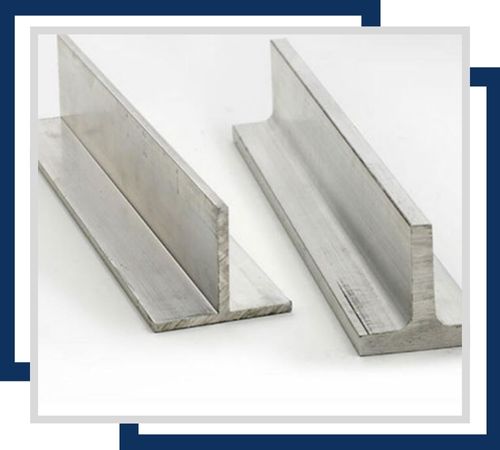

Stainless Steel 309 T-Bars are known for their high-temperature resistance and oxidation resistance. Available in sizes ranging from 15 mm x 15 mm x 6 mm to 100 mm x 100 mm x 12 mm, they are used in industrial applications such as heat exchangers and furnace components, providing durability and strength in extreme conditions.
Ed Stainless Manufacturer and Suppliers in Texas offer Stainless Steel 309 Bars that are widely utilized in high-temperature settings, such as furnace components, heat exchangers, and kiln linings, thanks to their excellent heat and oxidation resistance. These bars are particularly popular in the chemical processing, petrochemical, and power generation sectors, where thermal stability and corrosion resistance are essential. Moreover, Ed Stainless 309 Bars are also used in the aerospace and automotive industries for parts that face extreme heat. Their versatility and durability make them a go-to choice for fabricating structural components, boilers, and exhaust systems that need to perform consistently under tough conditions.
