Ed Stainless is a top-notch manufacturer and supplier located in Houston, Texas, with a focus on high-quality stainless steel 317 bars. Known for their dedication to excellence and customer satisfaction, Ed Stainless caters to a variety of industries across the USA, delivering durable, corrosion-resistant, and precision-engineered stainless steel products. Their cutting-edge manufacturing processes guarantee superior quality and prompt delivery, establishing them as a reliable name in stainless steel solutions throughout Texas and beyond. Whether it’s for industrial uses or custom projects, Ed Stainless is recognized for its dependability and expertise in producing stainless steel bars.
The Stainless Steel 317 bars from Ed Stainless in Texas are primarily made up of iron, chromium (18-20%), nickel (11-15%), molybdenum (3-4%), along with trace amounts of carbon, manganese, and silicon. This unique composition significantly boosts corrosion resistance, particularly against acids and chlorides. On the mechanical side, these bars boast impressive tensile strength, good ductility, and toughness, with a typical tensile strength of around 75 ksi and a yield strength close to 30 ksi. The high molybdenum content offers exceptional resistance to pitting and crevice corrosion when compared to other stainless steels.
| Specifications | ASTM A 276 / SA 276 |
|---|---|
| Dimensions | ASTM, ASME |
| Range | 3.17 MM TO 350 MM DIA |
| Diameter | 25mm to 152mm |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Finish | Bright, Polish & Black |
| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wiremesh, Billet, Ingot, Forging Etc., |
| Condition | Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished |
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | N |
| SS 317 | 0.08 max. | 2.00 max. | 1.00 max. | 0.045 max. | 0.03 max. | 18.0 – 20.0 | 11.0 – 14.0 | 3.0 – 4.0 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | ||
| Rockwell B (HR B) max | Brinell (HB) max | |||||
| 317 | 620 MPa | 275 MPa | 45% | 85 | 193 | – |
Contact us to get a quick quote for your requirement.
We ensures that all stainless steel 317 panels are rigorously tested for quality, durability and performance. Products are subjected to various tests, including mechanical, chemical and corrosion resistance studies. Certified to industry standards, each batch is accompanied by appropriate certifications to ensure compliance and customer satisfaction.

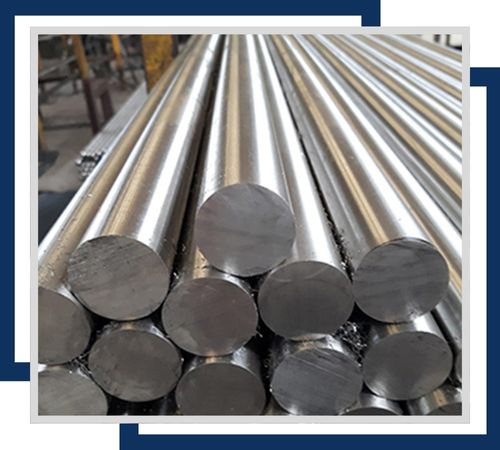

Corrosion-resistant Stainless Steel 317 Round Bars come in various diameters, typically from 6mm to 300mm. They are ideal for applications requiring high resistance to chloride corrosion, such as marine and chemical environments.

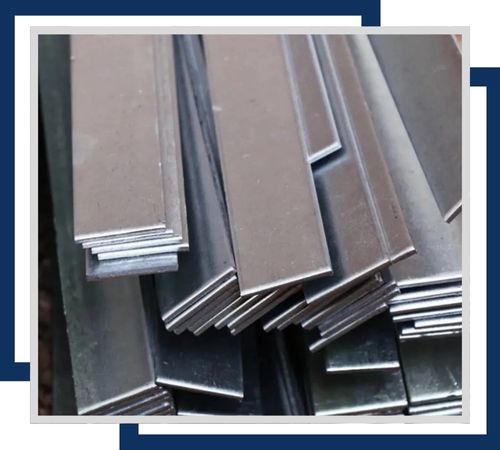

Stainless Steel 317 Flat Bars are available in widths ranging from 10mm to 300mm and thicknesses from 3mm to 50mm. These bars excel in resisting corrosion and are used in structural applications exposed to harsh chemicals.

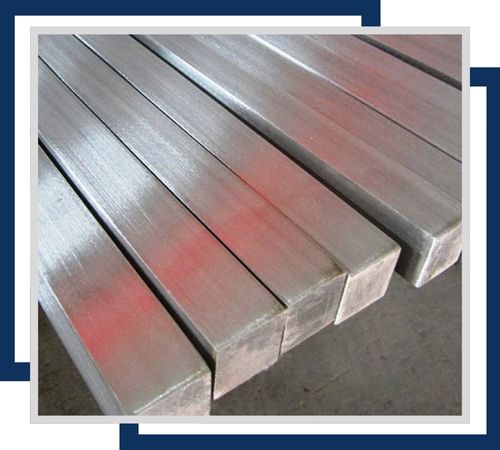

Stainless Steel 317 Square Bars, offered in sizes from 10mm to 100mm, provide excellent resistance to corrosion in aggressive environments. They are used in various structural and manufacturing applications requiring robust material properties.

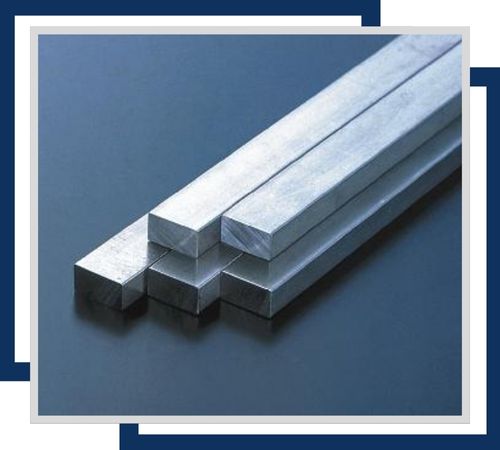

Stainless Steel 317 Rectangular Bars come in dimensions like 20mm x 10mm to 150mm x 50mm. They are preferred for applications needing high strength and resistance to corrosive substances, such as heat exchangers.

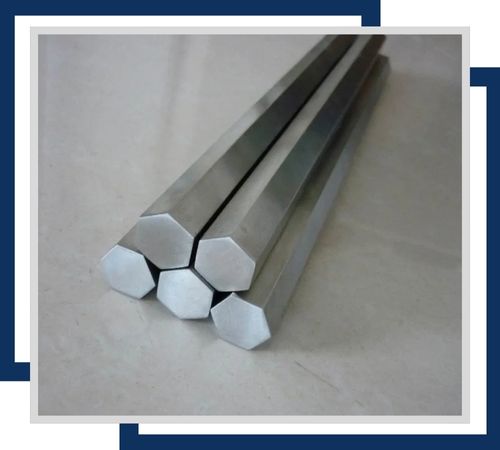

Corrosion-resistant Stainless Steel 317 Hexagonal Bars, available in sizes from 10mm to 100mm across flats, offer excellent performance in corrosive environments. They are used in industries where both strength and corrosion resistance are critical.

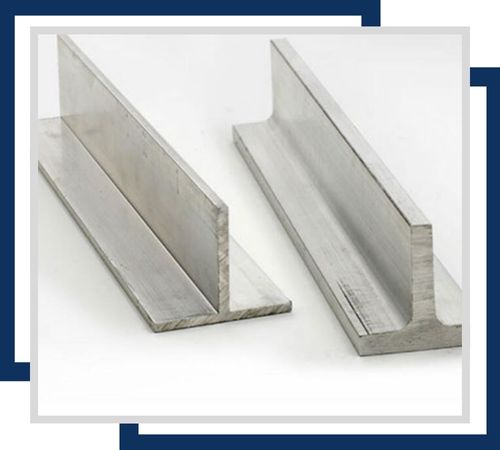

Stainless Steel 317 T-Bars are typically available in sizes like 10mm x 10mm to 100mm x 100mm. These bars provide high resistance to corrosion and are used in structural supports and frameworks exposed to aggressive conditions.
These Stainless Steel 317 bars from Ed Stainless are extensively utilized in chemical processing, marine settings, and industrial applications that demand superior corrosion resistance. Their robust strength and ability to withstand acidic and chloride-rich environments make them perfect for heat exchangers, pressure vessels, and pollution control equipment. Additionally, these bars find applications in petrochemical plants, food processing, and pharmaceutical industries where durability and hygiene are paramount. Ed Stainless ensures that their bars adhere to strict quality standards, supporting demanding applications that require long-lasting and reliable stainless steel components.
