Ed Stainless provides AWS Class E308/308L-16 Electrodes, which are meant for welding stainless steel grades such as SS304 and SS304L. These electrodes provide superior performance, producing strong, crack-resistant, and corrosion-resistant welds in light and heavy-duty uses. E308/308L-16 electrodes are suitable for welding low carbon stainless steel for easy slag removal and smooth arc stability. Regardless of use in food processing, pharmaceuticals, or chemical industries, they provide high-quality, long-lasting welds that can handle corrosive conditions and elevated temperatures, making them the preferred choice for most welding professionals.
AWS Class E308/308L-16 Electrodes are formulated from 18% Chromium and 8% Nickel stainless steel alloys along with minute additions of Manganese, Silicon, and Carbon. The electrodes offer tensile strength of around 550-700 MPa, and yield strength of about 205 MPa. The low carbon in the “L” grade minimizes precipitation of carbides, and thus the electrodes are suitable for welding stainless steel in corrosive environments. The resulting welds are resistant to corrosion, oxidation, and cracking even at high temperatures. High arc stability and simple slag removal guarantee quality output in many welding applications.
| Classification | AWS A5.4, E308/308L-16 |
| Form | Welding Electrode, Welding Rods |
| Type Of Current | AC-DCEP (Direct Current Electrode Positive) |
| Welding Position | F, V, OH, H |
| Size | 2.0 mm, 2.50 mm, 3.15 mm, 4.00 mm, 5.0 mm |
| AC/DC+ | AC or DC (+) |
| JIS Specification | BS 2926 19.9 A R |
| Other Specification | DIN 8556 E19 9 R 23 A |
| AWS E308/308L-16 Coated Electrodes Application & uses |
|
| C | Cr | Ni | Mo | Mn | Si | P | S | Cu |
| 0.04 | 18.0-21.0 | 9.0-11.0 | 0.75 | 0.5-2.5 | 1.00 | 0.04 | 0.03 | 0.75 |
Contact us to get a quick quote for your requirement.

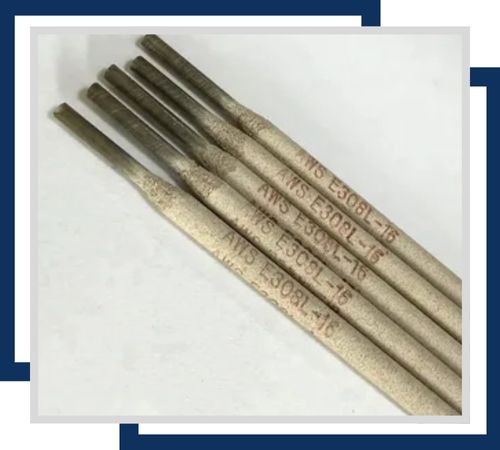

These electrodes offer high corrosion resistance and are suitable for welding 18-8 stainless steel. They have a heavy coating for enhanced stability and smoother arc performance. Sizes typically range from 1/8″ to 5/32″ in diameter.

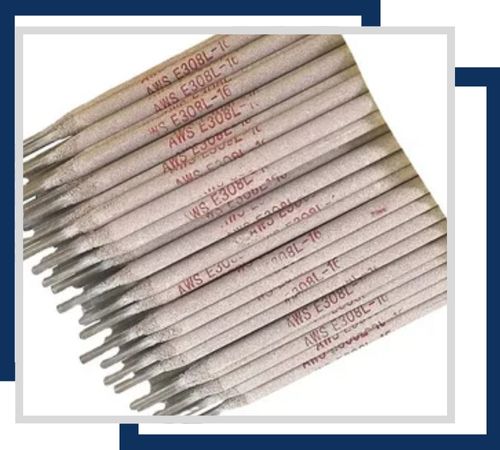

Offering excellent corrosion resistance, these electrodes are used for welding similar types of stainless steel. The light coating aids in maintaining a clean arc with minimal spatter. They are available in sizes from 3/32″ to 1/8″ in diameter.

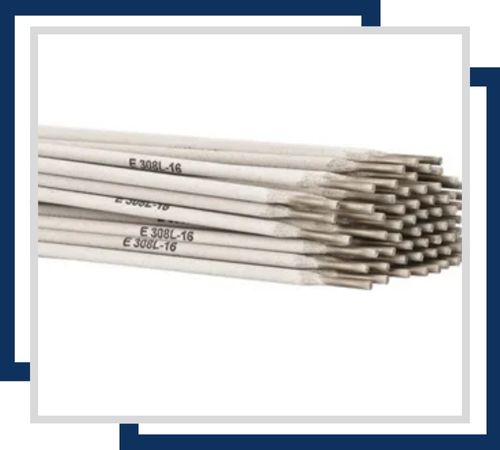

These electrodes provide robust corrosion resistance and are designed for shielded arc welding processes. They ensure stable arc performance and minimal weld defects. Common sizes include 1/16″ to 3/16″ in diameter.
Ed Stainless provides the best AWS Class E308/308L-16 Electrodes after being strictly tested through hardness, spectro analysis, PMI, flaring, micro and macro tests, pitting resistance, and IGC tests. We provide all commercial invoices, packaging lists, and labels along with the attested Certificate of Origin and Third-Party Inspection Certificates, which assure quality products and exceptional customer satisfaction.
AWS Class E308/308L-16 Electrodes are best suited for welding stainless steel, especially grades SS304 and SS304L, widely used in the food, beverage, and pharmaceutical sectors. The electrodes can be used to weld tanks, pipes, heat exchangers, and pressure vessels, where corrosion and oxidation resistance is crucial. They are often utilized in applications where welded joints will be exposed to elevated temperatures and severe conditions. The electrodes work well in repair too, providing long-lasting and dependable welds for industrial machinery, and are strongly recommended for application in food processing, brewing, dairy, and chemical processing businesses.
