Home > Electrodes > AWS Class E316/316H-16 Electrodes
Ed Stainless provides AWS Class E316/316H-16 Electrodes, specifically designed for welding 316 and 316H stainless steels. These electrodes are capable of withstanding high temperature service while providing superior resistance to oxidation and corrosion. 316H grade is especially ideal for high-temperature conditions where creep resistance is a key requirement. Whether you are involved in petrochemical, aerospace, or power generation applications, these electrodes create tough, crack-resistant welds that remain intact even under the most severe conditions. AWS E316/316H-16 Electrodes bring out the best in challenging applications where high strength and heat-induced corrosion resistance are both necessary.
AWS Class E316/316H-16 Electrodes consist of 16-18% Chromium and 10-14% Nickel stainless steel, with 2-3% Molybdenum added for greater resistance to crevice corrosion and pitting. Carbon addition positions these electrodes for high-temperature use (316H) where the creep resistance is critical. They have tensile strength between 600–750 MPa and yield strength approximately 250 MPa. Their mechanical behavior enables them to retain strength and resist oxidation under high temperatures, making them suitable for use in high-performance welds in severe environments.
| Classification | AWS A5.4, E316/316H-16 |
| Form | Welding Electrode, Welding Rods |
| Type Of Current | AC-DCEP (Direct Current Electrode Positive) |
| Welding Position | F, V, OH, H |
| Size | 2.0 mm, 2.50 mm, 3.15 mm, 4.00 mm, 5.0 mm |
| AC/DC+ | AC or DC (+) |
| JIS Specification | BS 2926 19.9 A R |
| Other Specification | DIN 8556 E19 9 R 23 A |
| AWS E316/316H-16 Coated Electrodes Application & uses |
|
| C | Cr | Ni | Mo | Mn | Si | P | S | Cu |
| 0.04 | 17.0-20.0 | 11.0-14.0 | 2.0-3.0 | 0.5-2.5 | 1.00 | 0.04 | 0.03 | 0.75 |
Contact us to get a quick quote for your requirement.

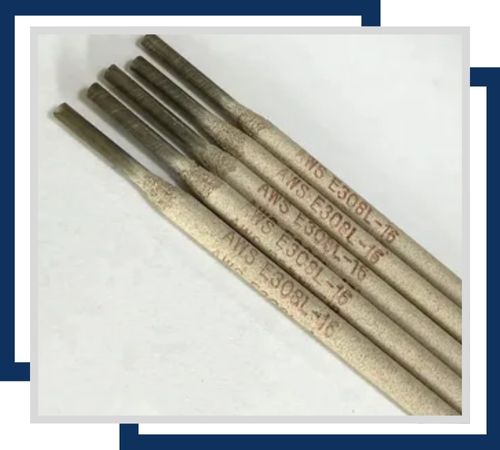

Known for exceptional resistance to corrosion and high temperatures, these electrodes are ideal for welding stainless steel structures. They typically come in diameters of 1/8″, 3/16″, and 5/32″ and are designed for shielded arc welding processes, ensuring strong, durable welds.

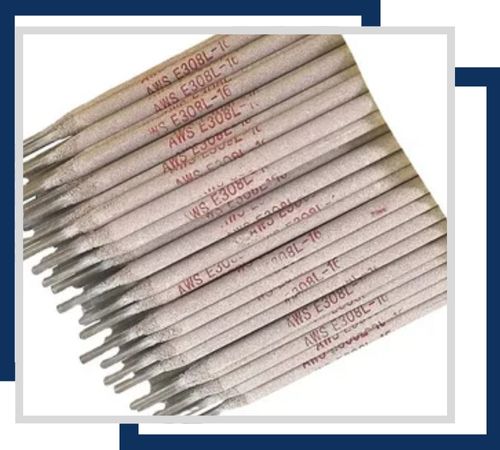

Light-coated electrodes are suitable for welding thin sections of stainless steel and offering high corrosion and oxidation resistance. They are available in sizes such as 1/8″ and 5/32″, providing ease of use and flexibility in various welding applications.

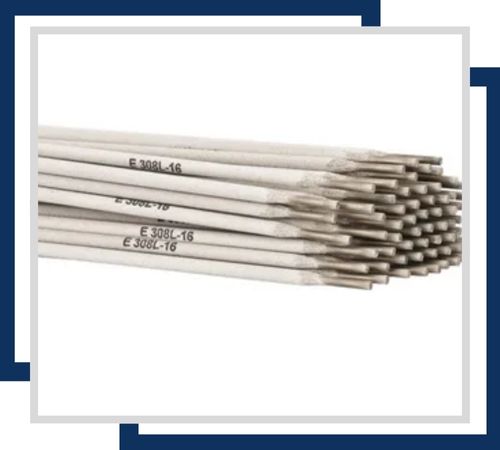

These electrodes provide superior corrosion resistance and durability, making them ideal for heavy-duty applications. With diameters ranging from 3/16″ to 1/4″, they are designed for robust welding tasks, ensuring strong joints and long-lasting performance in harsh environments.
We ensure products of high quality such as AWS Class E316/316H-16 Electrodes with hard-testing, spectro-analysis, PMI, and flare tests. On the other hand, we ensure high quality material delivery through micro-macro tests, pitting resistance, and IGC tests. In addition to these, full documentation of commercial invoices, packaging lists, third-party inspection certificates, along with legalized certificate of origin for an unmatched satisfaction level from the customer side while being sure about product reliability.
AWS Class E316/316H-16 Electrodes are suitable for applications at high temperatures where strength and resistance to corrosion are both important. They are generally used in petrochemical, power generation, and aerospace sectors to weld parts that undergo high temperatures. These electrodes are also employed for welding components in boilers, heat exchangers, and reactors where thermal stresses prevail. The 316H grade containing higher carbon content presents greater strength at higher temperatures, rendering such electrodes ideal for welding components in high-pressure as well as high-heat applications that require long-term endurance and heat-resistant corrosion resistance.
