Ed Stainless has built a solid reputation as a go-to manufacturer and supplier of SMO 254 Sheets and Plates in Houston, Texas, USA. Known for their unwavering commitment to quality and precision, Ed Stainless delivers high-performance SMO 254 sheets and plates that are perfect for tough industrial settings. With a strong emphasis on corrosion resistance and durability, these products find their place in various sectors, including chemical processing, marine, and offshore applications. Ed Stainless upholds rigorous quality control standards and guarantees timely delivery throughout Texas and beyond. As a dependable manufacturer of SMO 254 sheets and plates, Ed Stainless caters to a wide range of industries with robust, long-lasting stainless steel solutions.
The SMO 254 Sheets and Plates from Ed Stainless boast a high alloy composition, featuring around 20% chromium, 18% nickel, 6% molybdenum, along with some nitrogen and copper. This super-austenitic stainless steel is renowned for its outstanding corrosion resistance, even in the harshest environments. On the mechanical side, SMO 254 offers a tensile strength of about 650 MPa and a yield strength of 300 MPa, with an impressive elongation of 35%. Ed Stainless ensures that all their products comply with ASTM A240 specifications, making them well-suited for high-stress and corrosive service conditions throughout Texas and the wider USA market.
| STANDARD | Stainless Steel 348H Sheet and Plate |
| EN | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| JIS | SUS 316L |
| BS | 316S11 / 316S13 |
| UNS | S31603 |
| WERKSTOFF NO. | 1.4404 / 1.4435 |
| AFNOR | Z7CND17‐11‐02 |
| GOST | 03Ch17N14M3 / 03Ch17N14M2 |
| Elements | Carbon | Chromium | Manganese | Molybdenum | Nickel | Nitrogen | Phosphorus | Silicon | Sulphur |
|---|---|---|---|---|---|---|---|---|---|
| SMO 254 UNS S31254 | 0.02 max | 19.5-20.5 | 1.0 max | 6.0-6.5 | 17.5-18.5 | 0.18-0.22 | 0.03 max | 0.8 max | 0.01 max |
| 0.2% Proof Stress (N/mm2 ) [ksi] minimum | 300 [43.5] |
| Tensile Strength (N/mm2) [ksi] minimum | 650 |
| Elongation (%) minimum | 35 |
| Hardness (HBN) | 270 max |
| Reduction of Cross Section Area (%) | 50 |
Contact us to get a quick quote for your requirement.

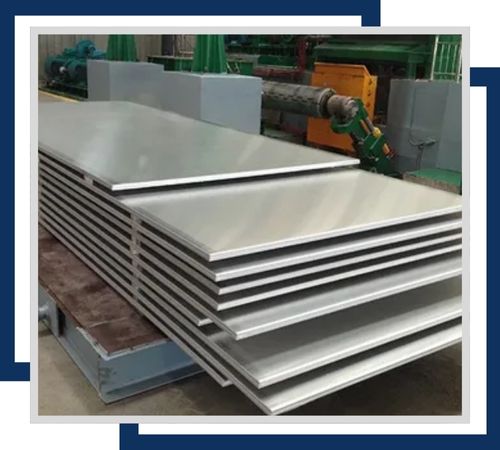

SMO 254 hot rolled plates have high strength and resistance to corrosion, and therefore, can be used for heavy-duty applications. The material is usually in a thickness range of 3mm to 50mm with width up to 2000 mm. It also comes in hot-rolled finish for strength and durability with the capability of sustaining high temperature and aggressive environment.

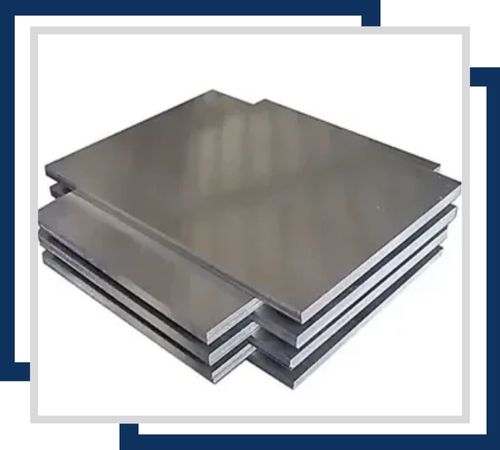

SMO 254 Cold Rolled Sheets provide a bright surface finish and excellent dimensional accuracy, with good corrosion resistance. These sheets are available in thickness from 0.5 mm up to 3 mm and widths up to 1250 mm. The strength of these sheets is improved by cold rolling, making them ideal for precision applications.

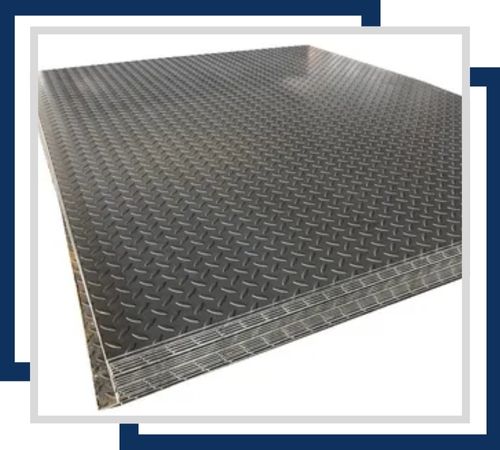

SMO 254 Chequered Plates offer an embossed pattern for increased slip resistance and longevity. Thickness options range from 3 mm to 12 mm, with a maximum width of 1500 mm. They are used as flooring in most industrial applications, offering great corrosion resistance.

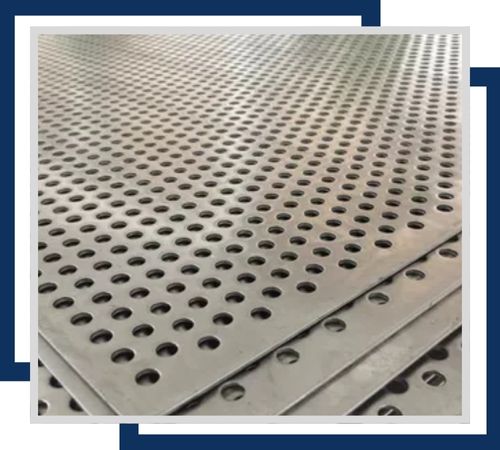

SMO 254 Perforated Sheets come in different perforation patterns depending on the design and functional requirements of the application. They are offered in thickness ranges from 1mm to 6mm and width up to 1200 mm. Due to their high resistance to corrosion, they are used both for decorative as well as industrial applications.

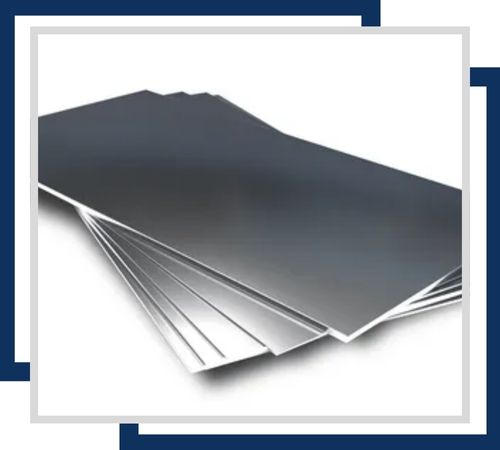

SMO 254 Shim sheets are used with a spacing or aligned application for variety of usages. Generally made available with widths up to 1000mm and a standard thickness between 0.1 mm and 1mm these shim sheets promise excellent corrosion resistivity under stringent conditions, performing well even during long exposure.

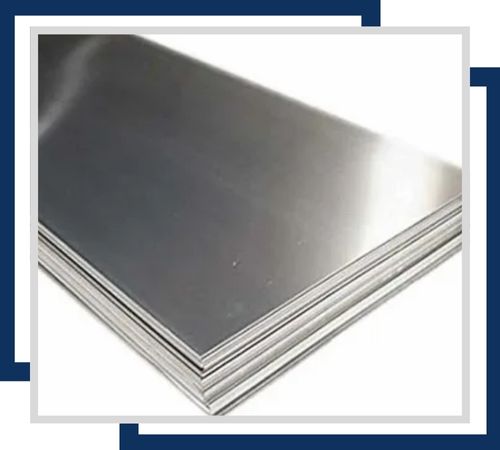

SMO 254 Polished Plates have high-quality reflective surfaces and are aesthetically pleasing along with corrosion resistant. They have a thickness from 2mm to 25mm and can be up to 1500mm in width. The architectural and decorative usage is possible by the polished surface.
Ed Stainless commits to delivering the best seamless experience to our valued customers with extensive documentation on top-quality SMO 254 Sheets and Plates. We deliver to our clients, all necessary documents such as the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test reports, all of which would ensure authenticity as well as superiority in our product offerings. In addition, test certificates, MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate are supplied with our SMO 254 Sheets and Plates, which reveal our customer-oriented approach and a commitment to producing high-quality products.
The SMO 254 Sheets and Plates produced by Ed Stainless in Texas, USA, are extensively utilized across several key industries. Thanks to their remarkable resistance to pitting, crevice corrosion, and chloride-induced stress corrosion cracking, they are commonly found in offshore oil and gas platforms, chemical and petrochemical facilities, desalination plants, and marine environments. These sheets and plates are also integral to heat exchangers, process piping, and storage tanks. Ed Stainless guarantees that every SMO 254 product delivers exceptional performance in aggressive conditions, making them a top choice for engineers and project managers in Houston and across the United States.
