Home > Sheet and Plates > Stainless Steel 317L Sheet and Plates
Ed Stainless is a top-notch manufacturer and supplier located in Houston, Texas, specializing in high-quality Stainless Steel 317L sheets and plates. They’ve built a solid reputation for their dedication to excellence and precision, catering to a wide range of industrial needs with their durable, corrosion-resistant products. Thanks to their cutting-edge manufacturing processes, they deliver superior strength and finish, making them a go-to choice across the USA. With a strong emphasis on customer satisfaction and timely delivery, Ed Stainless truly shines as a dependable partner in stainless steel solutions, providing materials that meet strict standards and performance requirements for various applications.
The Stainless Steel 317L offered by Ed Stainless in Texas is an austenitic alloy primarily made up of iron, chromium (18-20%), nickel (11-15%), and molybdenum (3-4%). This unique blend boosts its corrosion resistance, particularly against chlorides and acids. It boasts impressive mechanical properties, including excellent tensile strength, good ductility, and a yield strength that typically hovers around 30,000 psi. Its low carbon content helps reduce carbide precipitation, enhancing weldability and resisting intergranular corrosion, which makes it perfect for tough environments.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| 317L | 0.035 max | 2 max | 1 max | 0.040 max | 0.03 max | 18 – 20 | 3 – 4 | 11 – 15 | – |
| Density | 8.0 g/cm3 |
|---|---|
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.

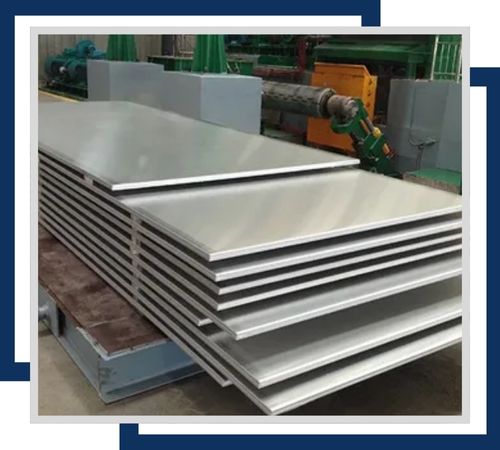

High resistance to corrosion by chlorides and acids available as sheets and plates from a thickness of 3mm to 100mm in width to 2 meters. The hot-rolled product allows heavy usage because it produces a tough and durable finish.

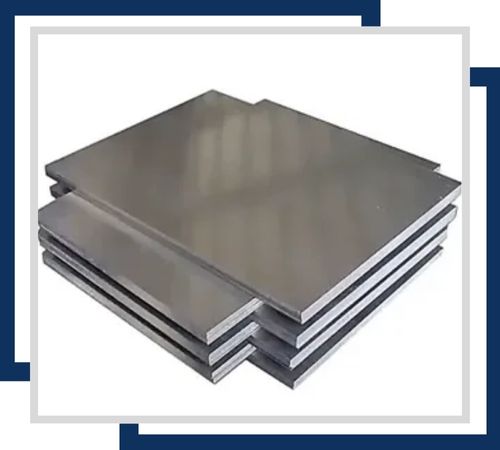

With high corrosion resistance, the cold rolling provides cold rolled sheets and plates that range in thickness from 0.3mm to 6mm, with widths reaching up to 1.5 meters. In the case of cold rolling, it leaves the surface very smooth and precise for aesthetic and high-precision uses.

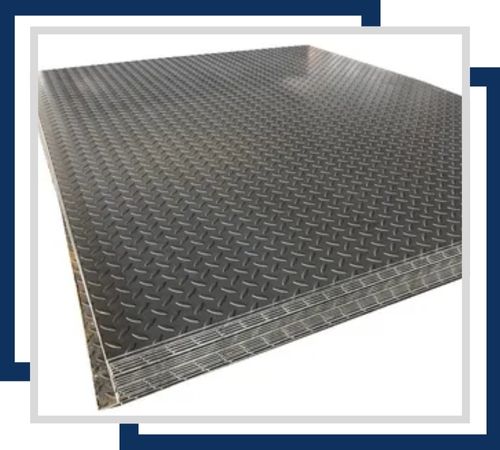

They have been designed with the patterned surface for superior friction and slip resistance. Chequered sheets and plates provide superior resistance to corrosion. These products are available from 1.5mm up to 6mm thickness in custom sizes as per application requirements.

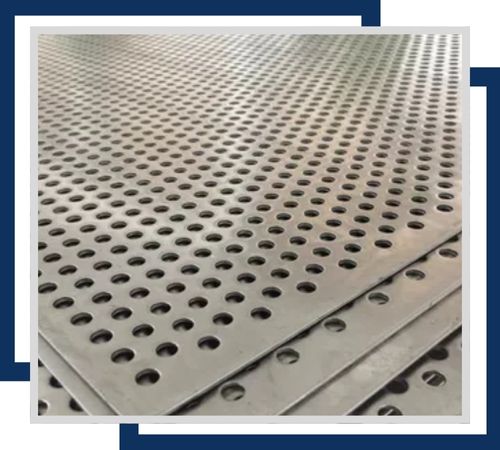

These sheets and plates are superior in corrosion resistance and perforated holes for ventilation, filtering, and aesthetic purposes. Common sizes range from 0.5mm to 6mm thick, and custom hole patterns and diameter sizes are offered according to several industrial and architectural needs.

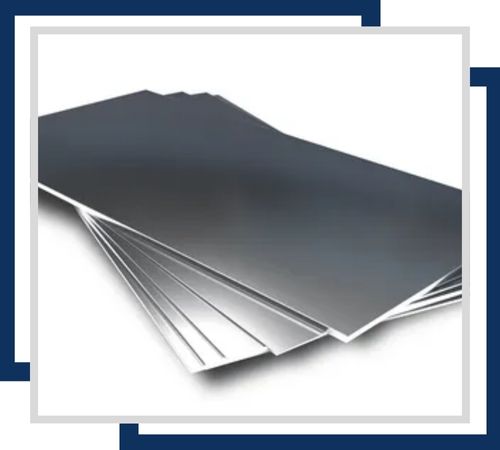

Shim sheets and plates are highly resistant to corrosion and are used for precise spacing and alignment. They are thin gauges usually from 0.1mm to 3mm thick, but may be customized in dimensions according to the particular mechanical and industrial application.

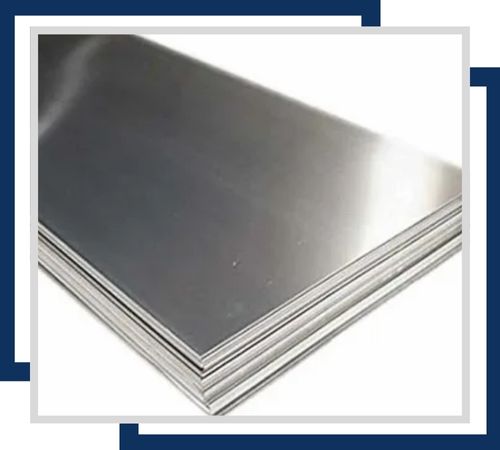

They come with great corrosion resistance as well as the option of polishing to a mirror finish for aesthetic use, suitable in decorative or high-visibility applications. The sheets and plates range in thickness from 0.5mm to 12mm.
We, at Ed Stainless, ensure a completely hassle-free experience to our customer while providing documentation with our premium range of Stainless Steel 317L Sheets and Plates . Our pack consists of the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report. The quality and authenticity of our product get authenticated due to these documents, which then brings trust and confidence in the mind of our client. We also provide test certificate for our Stainless Steel 317L Sheets and Plates, like an MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. These certificates indicate our relentless pursuit of client satisfaction and our quest for excellence in the quality of the product.
Ed Stainless’s Stainless Steel 317L sheets and plates are widely utilized in chemical processing, petrochemical industries, and marine settings due to their outstanding resistance to pitting and crevice corrosion. They’re ideal for crafting heat exchangers, pressure vessels, and piping systems where durability and reliability are paramount. Plus, these products are favored in pharmaceutical and food processing equipment for their hygienic and corrosion-resistant qualities, ensuring safety and longevity even in harsh conditions.
