ED Stainless is a well-known manufacturer and supplier of Stainless Steel 201 Sheets and Plates in Houston, USA. We offer high-quality flat-rolled steel products that combine mechanical strength with attractive appearances. Our SS 201 sheets and plates come in various thicknesses, finishes, and sizes to meet architectural, industrial, and fabrication needs. Known for our competitive pricing and commitment to quality, ED Stainless serves clients in construction, transportation, kitchen equipment, and more. Each product is thoroughly tested for durability and consistency to ensure our customers receive the best stainless steel sheet and plate solutions.
Stainless Steel 201 Sheets and Plates contain 16% to 18% Chromium, 3.5% to 5.5% Nickel, and 5.5% to 7.5% Manganese, with low carbon content (around 0.15%). They have high tensile strength (approximately 520 MPa), good yield strength (about 275 MPa), and elongation of around 45%. These sheets and plates offer moderate corrosion resistance and excellent formability. Although they are not as corrosion-resistant as SS 304, they are stronger and more affordable. They are non-magnetic when annealed and may become magnetic after cold working. Their mechanical properties make them suitable for forming, cutting, and fabrication processes across various industries.
| Specifications | : | ASTM A240 / ASME SA240 |
| Standard | : | JIS, AISI, ASTM, GB, DIN, EN |
| Range | : | 1000/1219/1500/2000mm,etc |
| Conventional common size | : | 4 inch X 8 inch ,10 inch x 5 inch |
| Thickness | : | 0.2 mm to 20mm |
| Specialize | : | Shim Sheet, Perforated Sheet, B. Q. Profile. |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate |
| Hardness | : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grades | : | SS 201 UNS S20100 |
| Grade | C | Mn | Si | P | S | Cr | Ni | N |
| SS 201 | 0.15 max | 5.5 – 7.5 | 100 max | 0.06 max | 0.03 max | 16.00-18.00 | 0.3 – 0.5 | – |
| Tensile strength (transverse at room temperature) | 685 MPa | 99400 psi |
| Tensile strength (longitudinal at room temperature) | 696 MPa | 101000 psi |
| Yield strength (transverse at room temperature) | 292 MPa | 42400 psi |
| Yield strength (longitudinal at room temperature) | 301 MPa | 43700 psi |
| Compressive yield strength | 365 MPa | 52900 psi |
| Elastic modulus | 197 GPa | 28573 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (longitudinal at room temperature) | 56% | 56% |
| Elongation at break (transverse at room temperature) | 62.50% | 62.50% |
| Hardness, Rockwell B (transverse at room temperature) | 85 | 85 |
| Hardness, Rockwell B (longitudinal at room temperature) | 85 | 85 |
Contact us to get a quick quote for your requirement.

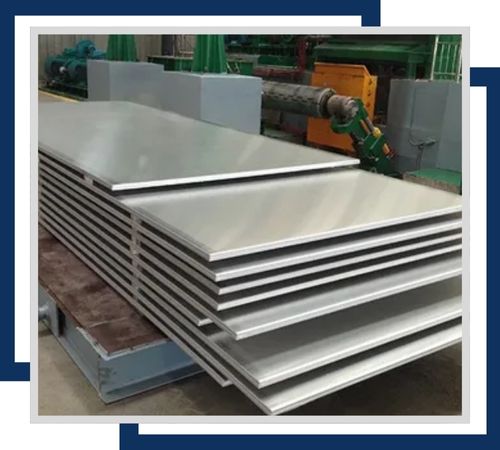

Stainless Steel 201 hot rolled plates are resistant to corrosion and are used in various structural applications. They are available in sizes from 6mm to 100mm thick, and can be ordered to any size.

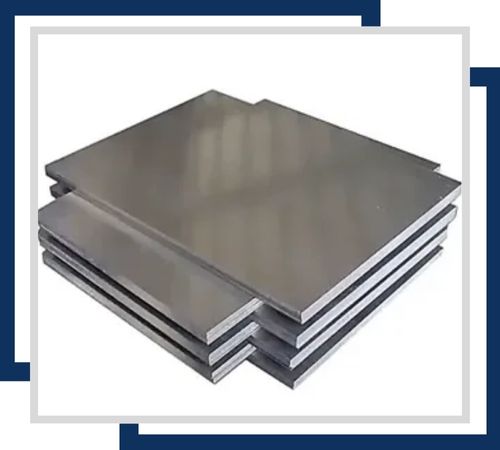

The stainless steel 201 cold rolled sheets offer excellent corrosion resistance and a smooth surface finish. They are available in the thickness range of 0.3mm to 3mm and widths ranging from 1000mm to 2000mm, thus applicable for various purposes.

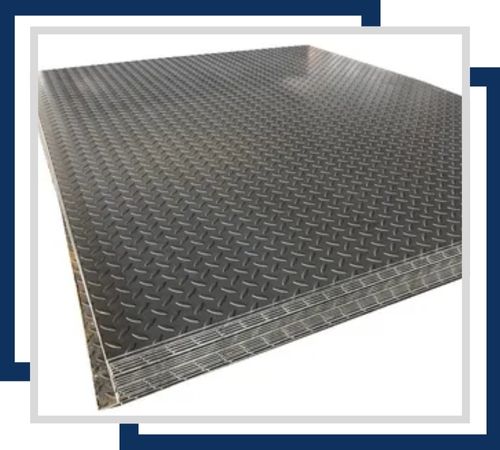

Stainless Steel 201 chequered sheets are used for flooring and other high-traffic areas due to their improved slip resistance and durability. These sheets are available in thicknesses of 1mm to 6mm and standard sizes of 1000mm x 2000mm.

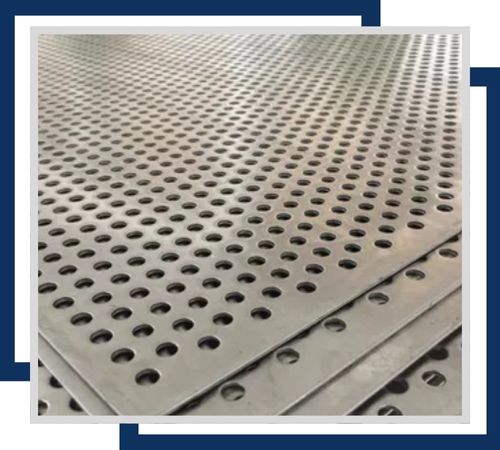

Stainless Steel 201 perforated sheets have outstanding corrosion resistance and find applications for purposes of ornamentation and function. They are also available with holes of various diameters and sizes, commonly within the range of 0.5mm to 6mm in thickness, and sizes from 1000mm x 2000mm.

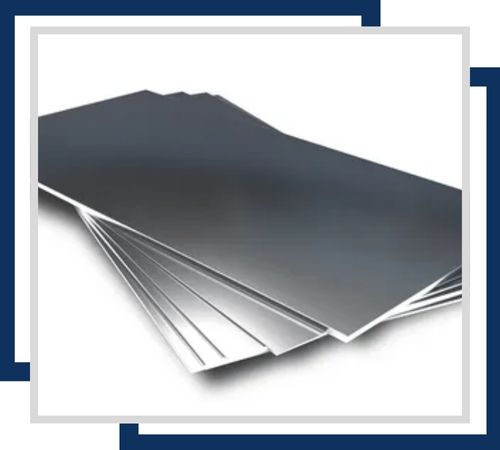

Stainless Steel 201 shim plates possess good resistance against corrosion and accurate thickness for spacing and alignments. It is generally available in thickness ranging from 0.1mm to 5mm along with sizes up to 1000mm x 2000mm.

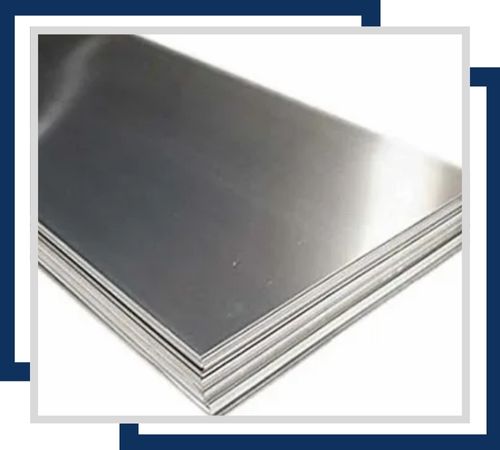

Stainless Steel 201 Polished Sheet and Plates have high-quality reflective finishes. It has good strength at high temperatures that offer abrasion and corrosion resistance in applications having processes.
Ed Stainless assures hassle-free delivery while giving detailed documents regarding high-quality Stainless Steel 201 Sheets and Plates. It issues a commercial invoice, a packing list, fumigation certificate, heat treatment chart, quality assurance plan, and an NABL-approved lab test report that verify the genuinity and exceptional quality of products and help generate trust in its valuable customers. In addition, our Stainless Steel 201 Sheets and Plates are offered with various test certificates, which include MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. The certifications show how we are completely customer-centric as well as strongly committed to quality products.
