Ed Stainless is a top-notch manufacturer and supplier of high-quality SS 465 sheets and plates, proudly based in Houston, Texas. Known for their unwavering commitment to excellence, Ed Stainless provides outstanding stainless steel products that adhere to strict industry standards. With a focus on SS 465, the company serves a variety of sectors that need durable, corrosion-resistant, and heat-resistant materials. Thanks to their cutting-edge manufacturing processes and a strong customer-first approach, Ed Stainless guarantees a reliable supply and exceptional product performance. They proudly serve clients across Texas and beyond, establishing themselves as a trusted name for precision-engineered stainless steel sheets and plates tailored to meet specific industrial needs.
The SS 465 stainless steel sheets and plates from Ed Stainless boast a well-balanced composition, primarily consisting of chromium (16-18%), nickel (3-5%), and copper (1-2%), which enhances their corrosion resistance and heat tolerance. The carbon content is carefully controlled to stay below 0.08%, ensuring strength without sacrificing weldability. In terms of mechanical properties, these materials offer a tensile strength of about 515 MPa, a yield strength of around 275 MPa, and an elongation of nearly 40%, which guarantees excellent durability and flexibility. These features make SS 465 perfect for high-temperature applications while effectively resisting oxidation and stress corrosion cracking, all provided by Ed Stainless in Texas.
| Standard Specification : | ASTM A240 / ASME SA240 |
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Fe 74.35% | Cr 11.75% | Ni 11.0% | Ti 1.65% | Mo 2.05% | |||||
| Mn <=0.25% | Si <=0.25% | C <=0.020% | P <=0.015% | N <=0.010% | |||||
| S 0.010% | |||||||||
| Property | Minimum | Maximum | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Yield Strength Range (Rp0.2 Offset) (ksi) | 170 | 270 | |||||||
| Tensile Strength Range (Rm) (ksi) | 190 | 280 | |||||||
| Elongation (AL=5 x Ø) | 2.3% | 14.0% | |||||||
| Brinell Hardness (H) | 271 | 560 | |||||||
| Modulus of Elasticity (ksi) (E): 32000 | |||||||||
| Machineability General Index: Unknown | |||||||||
Contact us to get a quick quote for your requirement.

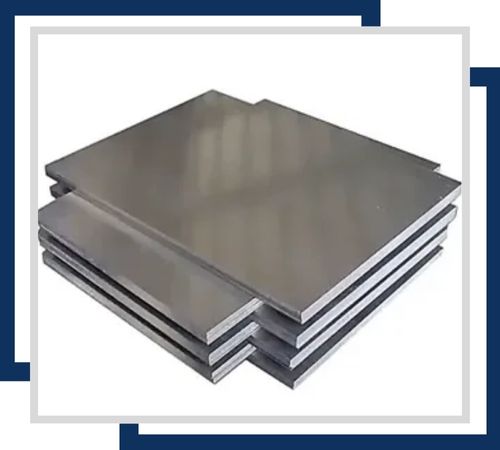

SS 465 Cold Rolled Sheets are widely demanded, high-quality, and corrosion-resistant steel products that find a diverse application in multiple industries. These sheets are provided in different sizes, having different thicknesses, that range from 0.3mm to 3mm for excellent surface finish, strength, and precision for superior quality and performance in applications.

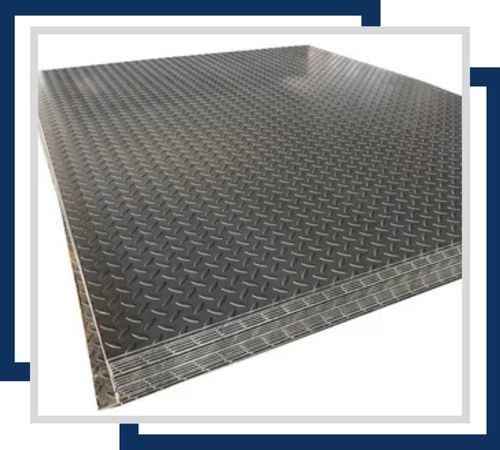

SS 465 Chequered Plates are heavy-duty stainless steel plates that have a raised, textured surface for anti-slip applications. They are widely found in industries where high corrosion resistance and structural strength is at a premium. Available in a wide range of sizes, such as 4×8 feet, custom sizes are also available.

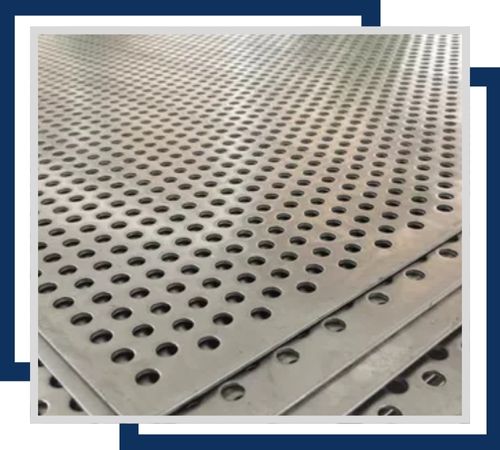

SS 465 perforated plates are high-quality stainless steel sheets with precision holes to allow for airflow, drainage, and filtration. They are available in a wide range of sizes, usually in terms of thickness, from 0.5mm to 5mm and hole diameters ranging from 1mm to 25mm.

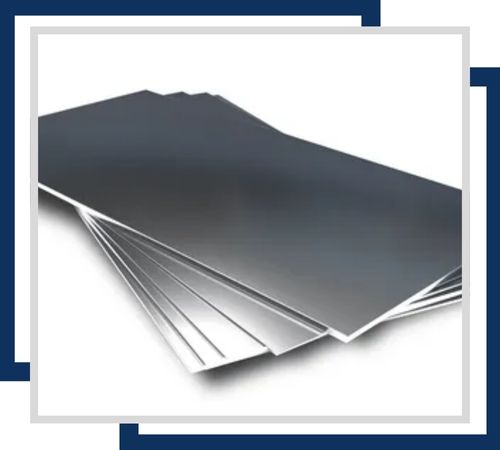

SS 465 Shim Sheets are high-quality stainless steel sheets. They are primarily used for applications requiring precise spacing and alignment. The shim sheets are usually offered in thickness ranging from 0.05mm to 1.00mm, and the best corrosion resistance is offered with an excellent durability to be used for critical engineering tasks.

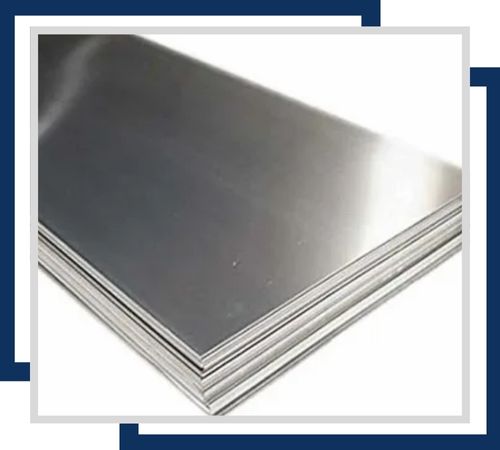

SS 465 Polished Plates are made from stainless steel that is very shiny and polished on the surface. They come in various sizes. Generally, their thickness ranges between 3mm and 100mm, widths can be up to 1500mm, and lengths can go up to 6000mm.
Ed Stainless is committed to providing a hassle-free customer experience. We provide critical documents, like commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports with our high-grade Stainless Steel 465 Sheets and Plates. It ensures the legitimacy and high standard of our product, which will ensure trust and satisfaction in our respected customers. We also provide various test certificates on our Stainless Steel 465 Sheets and Plates including MTC complying with EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificates. These certificates depict customer-centric approach, and the search for excellence for product quality never ends.
Ed Stainless’s SS 465 sheets and plates are widely utilized in industries that demand high corrosion resistance and heat endurance. You’ll find them in applications like aerospace components, chemical processing equipment, power generation, and marine environments. The alloy’s resistance to sulfidation and oxidation makes it a great choice for furnace parts, heat exchangers, and exhaust manifolds. Plus, SS 465 is often preferred for architectural projects and industrial machinery that face tough conditions. Ed Stainless is dedicated to ensuring that their products meet the rigorous specifications of these sectors, delivering reliable materials that boost performance, safety, and longevity.
