Ed Stainless is a reputable manufacturer and supplier located in Houston, Texas, USA, specializing in top-notch Stainless Steel 310/310S Sheets and Plates. With years of expertise in the stainless steel sector, Ed Stainless is dedicated to providing outstanding products that adhere to both national and international standards. Their 310/310S stainless steel offerings are celebrated for their remarkable heat resistance, durability, and corrosion resistance. Catering to a variety of industries across the USA, Ed Stainless is well-known for its prompt delivery, competitive pricing, and unparalleled product quality. Whether it’s for industrial, commercial, or specialized uses, Ed Stainless is a go-to choice in Texas and beyond.
Ed Stainless produces Stainless Steel 310/310S Sheets and Plates with a carefully controlled chemical composition, featuring 24–26% chromium, 19–22% nickel, and low carbon content in 310S to enhance weldability. These materials provide exceptional strength and oxidation resistance at high temperatures. The mechanical properties include a tensile strength of around 515 MPa, yield strength of 205 MPa, and an elongation of 40%. The inclusion of nickel and chromium ensures superior performance in extreme conditions. Ed Stainless guarantees that each product complies with ASTM A240 standards, delivering consistent performance even in demanding applications.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| C | Mn | Si | P | S | Cr | Ni | Fe | |
|---|---|---|---|---|---|---|---|---|
| 310 | 0.25 max | 2.0 max | 1.50 max | 0.045max | 0.03max | 24-26 | min: 8.0 max: 12.0 | Balance |
| 310S | 0.08 max | 2.00 max | 1.50 max | 0.045 | 0.03 | 24-26 | 19-22 | Balance |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX |
|---|---|---|---|---|
| 310 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40% | – |
| 310S | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40% | – |
Contact us to get a quick quote for your requirement.

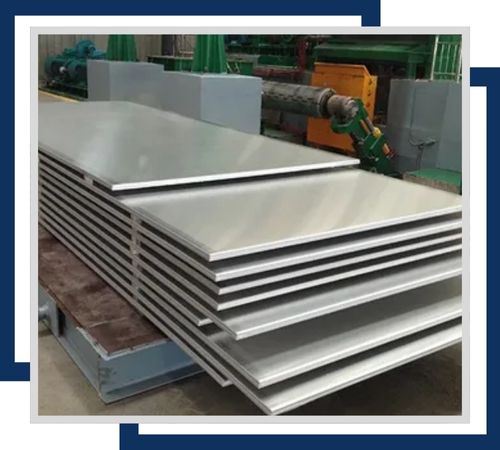

Hot-rolled sheets of Stainless Steel 310 are corrosion-resistant and resistant to corrosion and have high temperature stability. Available in sizes of 1.5 mm up to 25 mm thick, dimensions vary with customer requirements and offer robust performance in high-temperature applications.

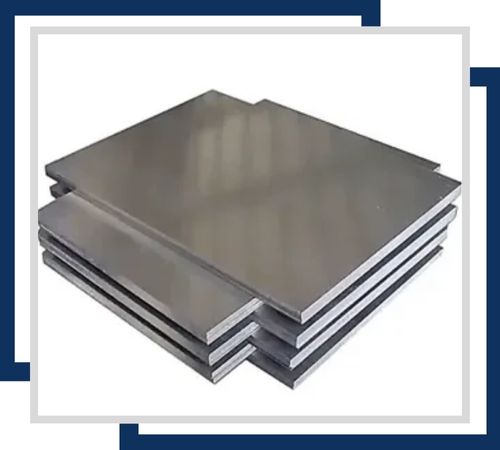

Available in gauges from 0.4 mm to 3 mm thickness, these have excellent corrosion resistance and improved surface finish. Suitable for applications which require tight tolerance and smoothness of the surfaces, these have precision and strength.

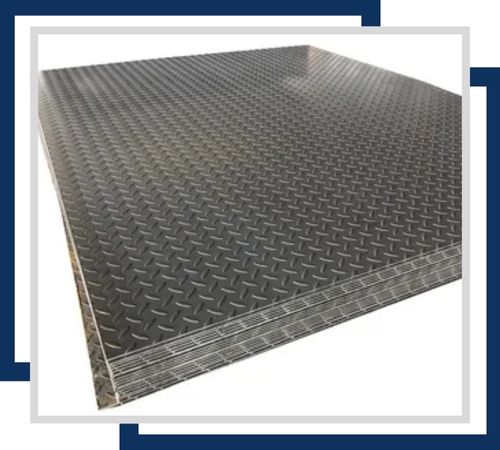

The Stainless Steel 310 chequered plates offer corrosion resistance with the added feature of slip resistance. The thickness varies from 2 mm to 12 mm. They are applied in floorings and industries for better traction.

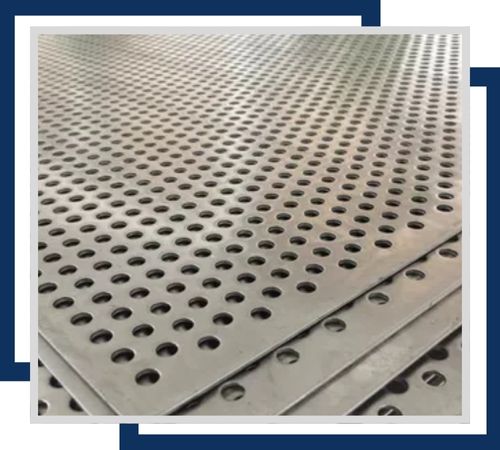

Stainless Steel 310 perforated sheets have available hole sizes and patterns that create aesthetic and practical benefits. Generally, thickness varies from 0.5 mm to 6 mm and finds application in filtration, ventilation, and decoration purposes.

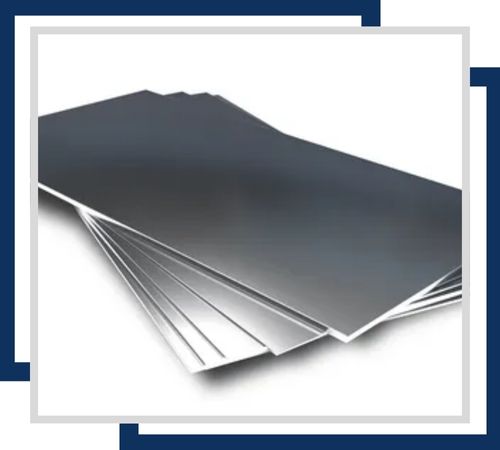

The shim sheets are made of stainless steel 310S and are available in thickness ranging from 0.1 mm to 1 mm. The thin sheets produce exact gaps or spaces in mechanical assemblies for adjustment.

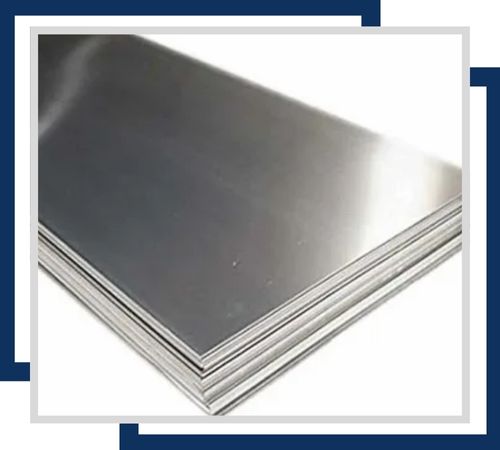

Stainless steel 310S polished plates combine corrosion resistance with high-quality finishes, both aesthetic and functional. They are available in 0.5 mm to 50 mm thickness and extensively used for decorative and high-end industrial applications.
Ed Stainless is providing a hassle-free experience to our esteemed customers by issuing a complete documentation set for all our high-grade Stainless Steel 310/310S Sheets and Plates. Documents such as Commercial Invoices, Packing Lists, Fumigation Certificates, Heat Treatment Charts, Quality Assurance Plans, NABL-approved Laboratory Test Reports accompany our products ensuring authenticity and superb quality. In addition, our Stainless Steel 310/310S Sheets and Plates are provided with a variety of test certificates, such as MTC in accordance with EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates, which reflect our commitment to customer satisfaction and our continuous pursuit of product excellence.
The Stainless Steel 310/310S Sheets and Plates produced by Ed Stainless in Houston, Texas, are extensively utilized in high-temperature industrial settings. These applications range from furnace components and heat exchangers to kilns, thermal processing plants, and petrochemical equipment. Their outstanding resistance to oxidation, sulfidation, and carburization makes them perfect for environments subjected to high temperatures. Additionally, they find use in cryogenic structures, cement plants, and food processing equipment. Ed Stainless customizes products to meet customer specifications, ensuring long-lasting reliability and performance. They are trusted for both mechanical strength and corrosion resistance.
