Ed Stainless is a top-notch manufacturer and supplier located in Houston, Texas, focusing on high-quality Stainless Steel 253MA sheets and plates. Known for their exceptional quality and precision, Ed Stainless serves a variety of industrial sectors by providing reliable, high-performance stainless steel products. Their dedication to excellence, prompt delivery, and customer satisfaction has made them a go-to choice throughout Texas and the USA. With cutting-edge manufacturing technologies and strict quality controls in place, Ed Stainless guarantees that every sheet and plate meets rigorous industry standards. Their expertise and local presence empower businesses with superior materials designed for challenging environments.
The Stainless Steel 253MA offered by Ed Stainless typically contains 20-22% chromium, 10-12% nickel, and 0.5-1.5% molybdenum, which gives it remarkable resistance to oxidation and high temperatures. Its well-balanced composition also includes trace amounts of nitrogen and iron, boosting its strength and corrosion resistance. Mechanically, it boasts impressive tensile strength (around 600 MPa), high yield strength, and good elongation, making it perfect for thermal stability. This alloy can handle temperatures up to 1100°C, maintaining its integrity even in harsh environments, which makes it a versatile choice for industrial applications.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| Cr | Ni | Si | C | Mn | P | S | N | Ce | Fe | |
|---|---|---|---|---|---|---|---|---|---|---|
| MIN | 20.00 | 10.00 | 1.40 | 0.05 | – | – | – | 0.14 | 0.03 | Balance |
| MAX | 22.00 | 12.00 | 2.00 | 0.10 | 0.80 | 0.04 | 0.03 | 0.20 | 0.08 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Reduction Area,% |
|---|---|---|---|---|
| 253 MA | 87,000 | 45,000 | 40 | 50 |
Contact us to get a quick quote for your requirement.

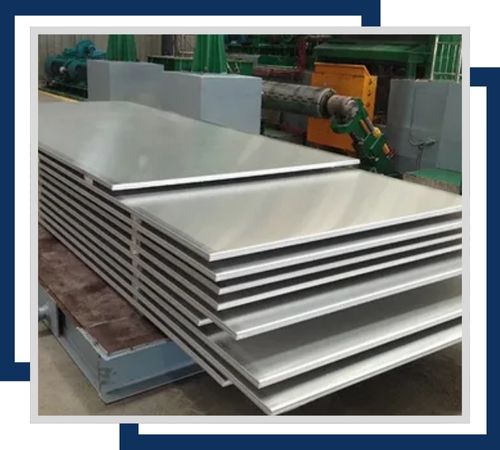

Hot-rolled stainless steel 253MA sheets are manufactured by a process known as hot rolling at elevated temperatures, ensuring robust and tough materials. Thickness usually ranges between 3mm to 100mm. Excellent resistance to corrosion and oxidation in a high temperature is one of its excellent characteristics.

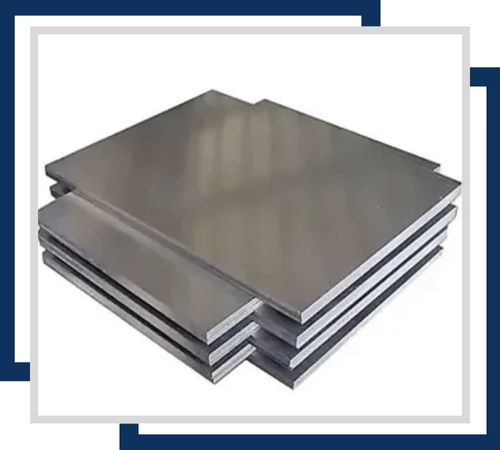

These stainless steel 253MA cold rolled plates are made at room temperature, giving these plates a smooth finish with very precise dimensions. Thickness is available from 0.3mm up to 3mm and offers high resistance against corrosion. They are ideal for applications wherein tight tolerances and high quality of surface finish can be achieved.

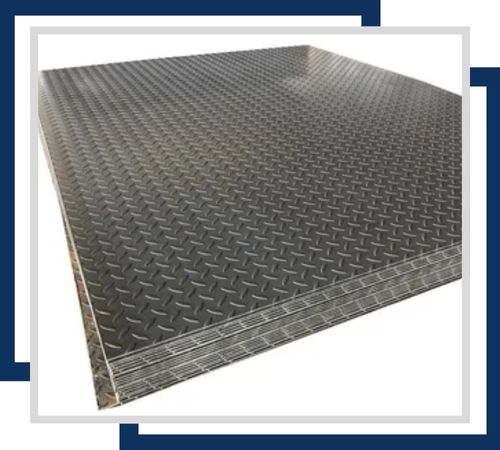

Stainless Steel 253MA Chequered Sheets provide a raised diamond pattern for improved grip and aesthetics. Available in gauges between 3mm and 12mm, these sheets have corrosion resistance properties. The product is widely used in floorings, walkways, and decorative applications.

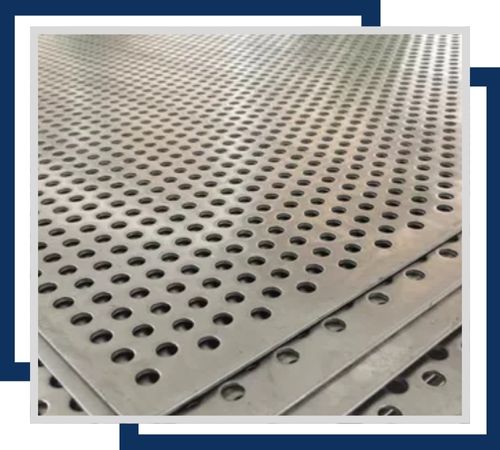

Stainless Steel 253MA perforated plates offer evenly spread holes, used for ventilation, filtration, and decorative purposes. They offer these plates in various hole sizes, available from 0.5mm to 5mm thickness. They have excellent corrosion resistant and good for applications where they need to allow airflow and drainage.

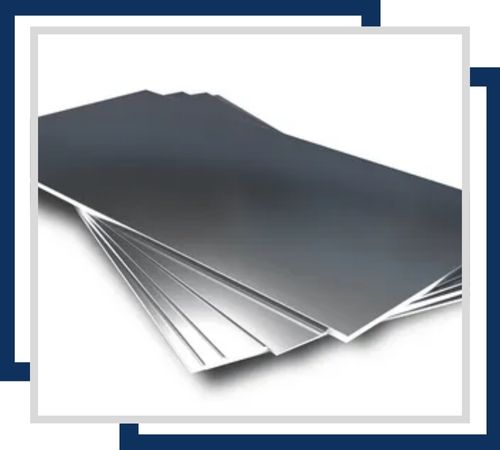

Stainless Steel 253MA Shim Sheets are thin and precise sheets applied for adjustments and alignment in machinery and structures. They are offered in a variety of thickness from 0.1mm up to 3mm. Their excellent corrosion resistance makes them critical for tight tolerance applications in numerous industries.

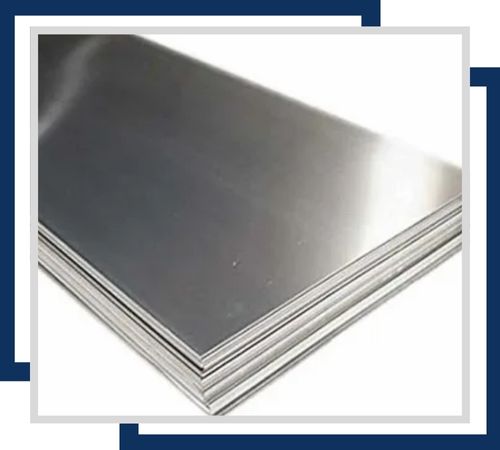

Stainless Steel 253MA Polished Plates are buffed to a reflective, mirror-like finish. The plates are available in thicknesses from 0.3mm to 50mm. They are used in architectural, decorative, and high-visibility applications due to their superior corrosion resistance.
Ed Stainless prioritizes delivering a seamless customer experience backed up by thorough documentation of the premium-quality Stainless Steel 253MA Sheets and Plates. Essential documents include the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report. These documents create authenticity and superior quality of our products that earn the trust of our esteemed clients. Moreover, we offer Stainless Steel 253MA sheets and plates with various test certificates including MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report and Third-Party Inspection Certificate. These test certificates indicate our customer-centric approach while achieving excellence in every product.
Ed Stainless’s Stainless Steel 253MA sheets and plates are widely utilized in industries that demand high-temperature corrosion resistance and mechanical strength. Common uses include heat exchangers, furnace parts, chemical processing equipment, and boiler components. Its outstanding oxidation resistance and thermal stability make it ideal for the aerospace, power generation, and petrochemical sectors. Additionally, it’s frequently used in the production of gas turbines and superheaters. Thanks to Ed Stainless’s commitment to quality, industries in Texas and beyond can rely on durable materials that endure extreme conditions, ensuring long-lasting performance and safety in critical engineering applications.
