Ed Stainless Manufacturer and Suppliers is a quality name in stainless steel products, serving the city of Houston and the larger Texas area. With specializations in Stainless Steel 440C Sheets and Plates, the company is known for providing high-quality, accurately engineered products that suit diverse industrial applications. Committed to excellence, Ed Stainless delivers products as per international standards and customer requirements. Whether for heavy-duty production or precision equipment, their 440C stainless steel products offer incomparable performance and durability, establishing Ed Stainless as a reliable manufacturer and supplier in Texas, USA.
Stainless Steel 440C Sheets and Plates from Ed Stainless Manufacturer and Suppliers in Texas, USA, are produced with a high-carbon martensitic stainless steel alloy. Its chemical composition generally consists of 0.95–1.20% Carbon, 16–18% Chromium, 1% Manganese, and small traces of Silicon, Molybdenum, and Phosphorus. This alloy is highly hard, has good wear resistance, and has outstanding strength. The mechanical properties consist of tensile strength of approximately 760 MPa, yield strength of about 450 MPa, and Rockwell hardness of 58–60 HRC, which makes it suitable for applications requiring corrosion resistance and toughness.
| ASME/ASTM Grade | ASTM A480 / ASME SA480 |
| Width Available | 1800mm, 3000mm, 1500mm, 2000mm, 1000mm, 2500mm, 1219mm, 3500mm etc |
| Thickness | 4mm – 100mm |
| Supply Length | 2000mm, 2440mm, 6000mm, 5800mm,3000mm etc |
| Most Commom Finish | SATIN (Met with Plastic Coated), 2B, Cold rolled sheet (CR), BA NO(8), Hot rolled plate (HR), 2D |
| Surface types | sand blast, etching, NO.1, embossed, hair line, 2B, Brush, BA, 2D, checkered, NO.8, 8K, NO.4, mirror, etc |
| Available Plate Form with us | Foils, Perforated Sheets, Plain Sheet, Coils, Rolls, Flats, Shim Sheets, Chequered Plate, Strip, Blank (Circle), Ring (Flange) etc. |
| Mo | S | C | Cr | Si | Mn | N | Ni | P |
| 0.75 | 0.03 | 0..95-1.20 | 16.00-18.00 | 1 | 1 | – | – | 0.04 |
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Rockwell (HR C) | Impact Charpy V (J) |
| Annealed* | 758 | 448 | 14 | 269HB max# | – |
| 204 | 2030 | 1900 | 4 | 59 | 9 |
| 260 | 1960 | 1830 | 4 | 57 | 9 |
| 316 | 1860 | 1740 | 4 | 56 | 9 |
| 371 | 1790 | 1660 | 4 | 56 | 9 |
Contact us to get a quick quote for your requirement.

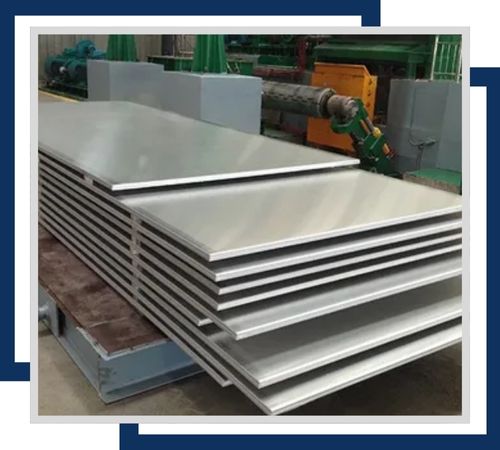

Stainless Steel 440C Hot Rolled Sheets have a high corrosion resistance and durability to be used for applications that need high strength. Usually available from 3mm to 50mm in thickness and up to 2000mm in width. These sheets are used for heavy-duty conditions where strength and toughness are in demand.

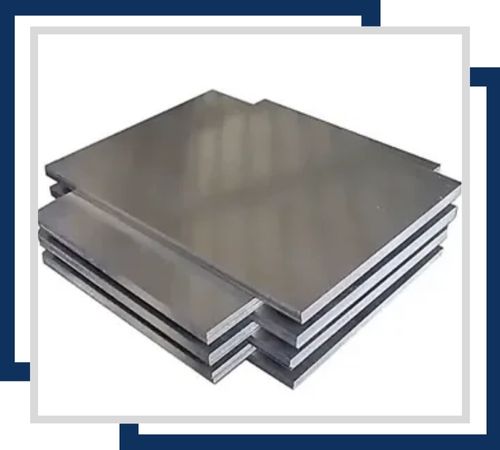

Stainless Steel 440C Cold Rolled Plates have excellent corrosion resistance and a smooth finish. The plates are generally supplied in the thickness of 0.5mm to 6mm and width up to 1250mm. The plates are best suited for applications where precision is needed along with high-quality surface finish.

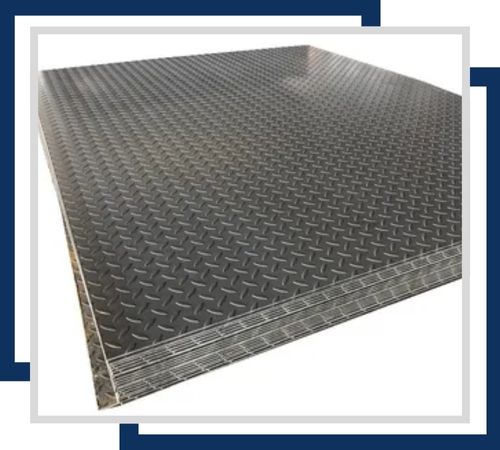

Stainless Steel 440C chequered sheet is used that provides raised patterns for enhanced friction resistance and scratch resistance. Highly corrosion resistant products with sizes as follows: -Thickness range 1.5 mm to 6 mm. They are available in standard sizes up to 1000mmx2000mm. Flooring application, safety purpose, industrial areas, etc.

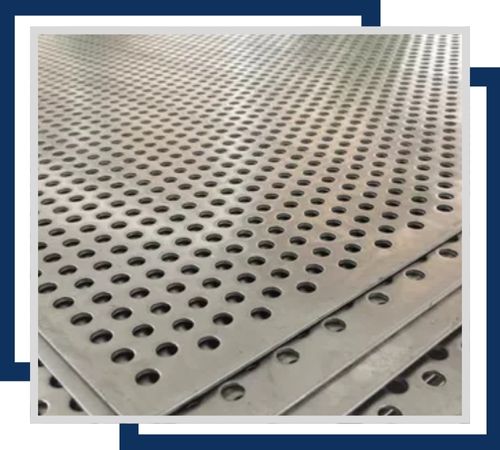

Stainless Steel 440C Perforated Sheets combine corrosion resistance with functional perforations for ventilation and filtration. Thickness ranges from 0.8mm to 6mm, with hole sizes and patterns. The sheets are used in architectural, industrial, and filtration applications where strength and design flexibility are needed.

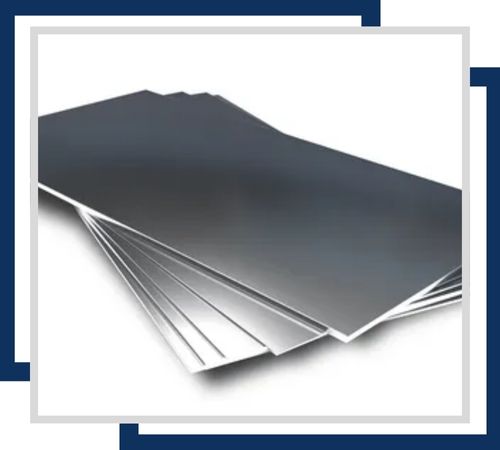

Stainless Steel 440C shim plates are provided with precise thickness tolerances and excellent corrosion resistance. They are available in the range starting from the thickness of 0.1mm up to 300mm width. It is ideal for applications requiring the proper spacing and adjustment, and for such machinery and assembly, it is preferred.

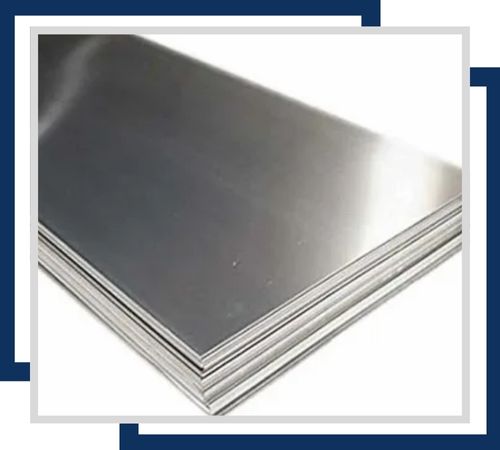

Stainless Steel 440C Polished Sheets offer a bright luster appearance with excellent corrosion resistance. Generally available in 0.5mm to 10mm thicknesses and up to 2000mm widths. These sheets are used in decorative and high-end applications where aesthetics and durability are important.
Ed Stainless specializes in bringing excellent customer experience with complete documentation for the superior-quality Stainless Steel 440C Sheets and Plates we offer to our customers. We provide commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports that prove authentic and superior quality. In addition, all our Stainless Steel 440C Sheets and Plates are provided with various test certificates such as MTC according to EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates. These detail documents reflect that we are very customer-centric, and we aim for excellence with our products.
Ed Stainless Manufacturer and Suppliers supplies Stainless Steel 440C Sheets and Plates, which find wider applications in high-demanding industries in Texas and other places. Their superior hardness and resistance to corrosion make them suitable for cutting tool manufacturing, surgical instruments, bearings, and valve components. The good wear resistance of the alloy makes it suitable for aerospace, defense, and mechanical engineering applications. Its high strength and tenaciousness also make it suitable for industrial equipment applications, pump componentry, and mold making. Ed Stainless has a solid presence locally in Houston, Texas, with timely delivery and quality control assured for customers who need accurate stainless steel applications.
