Ed Stainless is a top-notch manufacturer and supplier located in Houston, Texas, specializing in high-quality Stainless Steel 304 and 304L sheets and plates. They’ve built a solid reputation for their dedication to quality and precision, catering to a wide array of industries across the USA with their premium stainless steel products. Their 304/304L sheets and plates are crafted using cutting-edge techniques, ensuring they offer outstanding durability, corrosion resistance, and excellent formability. With a strong emphasis on customer satisfaction and prompt delivery, Ed Stainless has made a name for itself as a reliable player in the stainless steel market, both in Texas and beyond.
The Stainless Steel 304/304L sheets and plates from Ed Stainless boast a well-balanced composition of around 18-20% chromium and 8-10.5% nickel, which gives them remarkable corrosion resistance and strength. The 304L variant is particularly notable for its lower carbon content (under 0.03%), enhancing its weldability and minimizing the risk of carbide precipitation. In terms of mechanical properties, these materials have a tensile strength of about 515 MPa and a yield strength of 205 MPa, along with good ductility and toughness. These features make 304/304L stainless steel perfect for applications that demand robust performance in tough environments.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| C | Mn | Si | P | S | Cr | Ni | N | |
|---|---|---|---|---|---|---|---|---|
| 304 | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — |
| 304L | 0.03max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 12.0 | 0.10 max |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 304 | 75 | 30 | 40 | 201 | 92 |
| 304L | 70 | 25 | 40 | 201 | 92 |
Contact us to get a quick quote for your requirement.

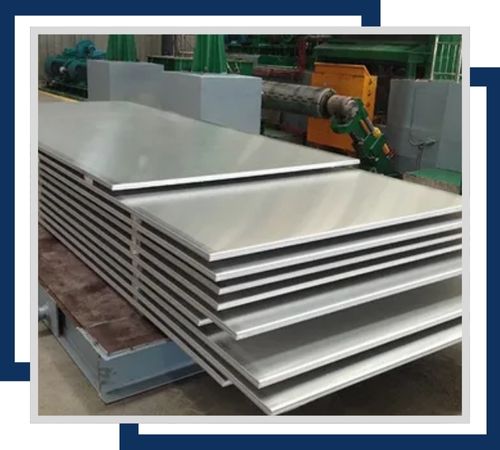

This type of stainless steel is known for its good corrosion resistance. The thickness of this type of stainless steel ranges from 3mm to 100mm. The sheets and plates are available in sizes up to 1500mm x 3000mm. Suitable for structural applications and industrial uses.

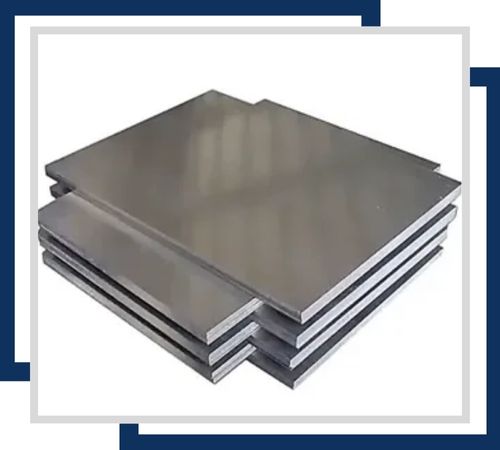

Offering great corrosion resistance, 304L cold-rolled sheets and plates are well known for smooth finish. These are available in thicknesses of 0.5mm up to 12mm, standard sizes up to 1500mm x 3000mm. They are ideal for applications requiring high-quality surface.

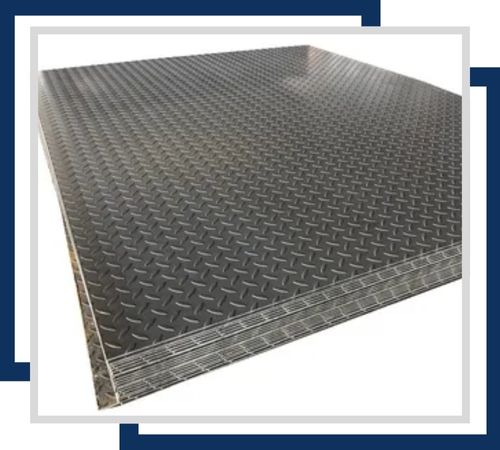

With superior corrosion resistance, 304L chequered sheets and plates are designed for anti-slip applications. They typically come in 2mm to 6mm thicknesses and sizes up to 1500mm x 3000mm. They are commonly used in flooring and stair treads.

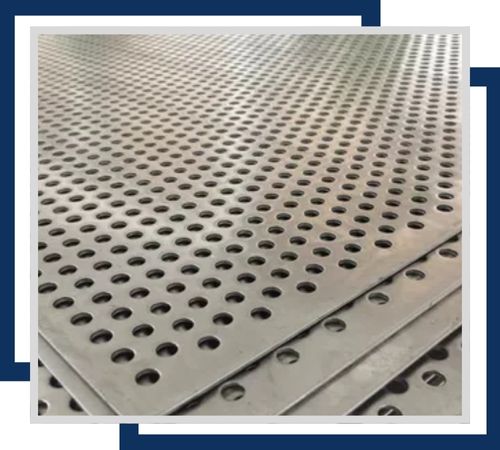

Featuring excellent corrosion resistance, these hole-perforated sheets and plates come in different hole patterns, size, and thickness with a specified range of 0.5mm to 6mm, standard dimension up to 1500mm x 3000mm, suitable for filtration and decorative uses.

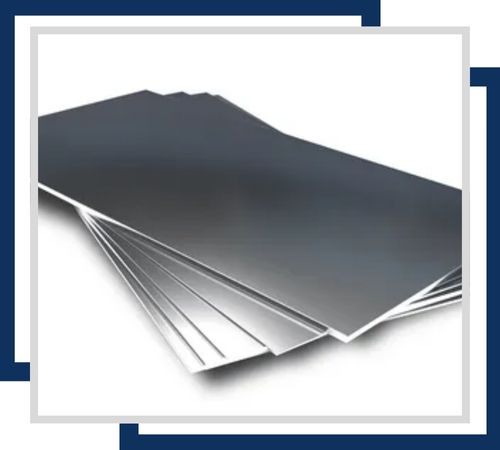

304 shim sheets and plates have good corrosion resistance. They can be as thin as 0.1mm. Standard sizes can go up to 1500mm x 3000mm. These are used in machinery for accurate spacing and adjustment.

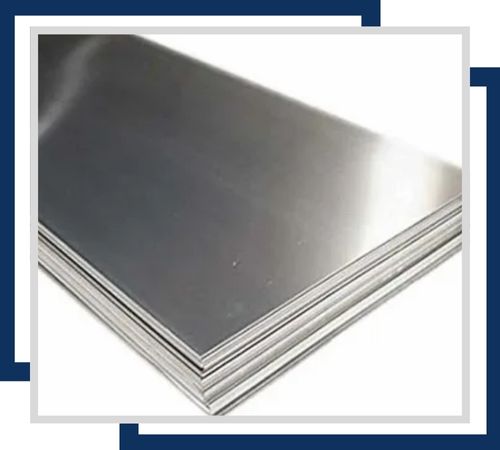

304 polished sheets and plates offer excellent corrosion resistance and a high-gloss finish. Thicknesses from 0.5mm to 12mm, and sizes up to 1500mm x 3000mm. Aesthetic and architectural applications.
Ed Stainless aims at making the purchase process hassle-free for its clients by offering detailed documentation of excellent quality Stainless Steel 304/304L Sheets and Plates. These include critical commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports, which give the authenticity and premium quality to our products. We also offer Stainless Steel 304/304L Sheets and Plates with Test Certificate like EN 10204 3.1b, PMI Test Certificate, radiography test reports of 100%, and third-party inspection. It shows us focused on satisfaction to our valued customers and also hard work.
Ed Stainless’s 304 and 304L stainless steel sheets and plates are widely utilized across various sectors due to their impressive corrosion resistance, strength, and versatility. You’ll find them in common applications like chemical processing equipment, food processing machinery, architectural structures, automotive components, and storage tanks. The 304L variant is particularly popular in welding-heavy projects, such as piping systems and pressure vessels, where reducing carbide precipitation is essential. Their resistance to oxidation and ease of fabrication make these stainless steel products ideal for both indoor and outdoor applications, ensuring they stand the test of time in demanding industrial and commercial settings.
