ED Stainless is a leading manufacturer and supplier of Stainless Steel 17-7 PH Sheets and Plates in Houston, USA. We are known for delivering high-strength materials through precision engineering. We specialize in creating 17-7 PH stainless products that provide excellent mechanical performance and corrosion resistance. These sheets and plates are precipitation-hardened to increase hardness and durability, making them ideal for aerospace, defense, and high-performance industrial applications. ED Stainless ensures compliance with international standards, offering various sizes, finishes, and heat treatments. Committed to reliability and customization, we deliver materials built for critical performance under demanding conditions.
Stainless Steel 17-7 PH contains 17% Chromium, 7% Nickel, with around 1% Aluminum and small amounts of Carbon and Manganese. After precipitation hardening, it can reach tensile strength up to 1300 MPa and yield strength over 1100 MPa. It has excellent fatigue resistance, good ductility, and minimal distortion after heat treatment. 17-7 PH offers good corrosion resistance, though slightly less than 304 in very corrosive environments. This alloy maintains its mechanical properties at temperatures up to 600°F (316°C), making it great for applications that require high strength and dimensional stability.
| Element | Content (%) |
|---|---|
| Chromium, Cr | 16-18 |
| Nickel, Ni | 6.50 – 7.75 |
| Manganese, Mn | 1 max |
| Silicon, Si | 1 max |
| Aluminum, Al | 0.75 – 1.50 |
| Carbon, C | 0.09 max |
| Phosphorous, P | 0.040 max |
| Sulfur, S | 0.030 max |
| Iron, Fe | Balance |
| Property | 17-7PH ≤ 0.010 inch thick | 17-7PH > 0.010 inch thick |
|---|---|---|
| Yield Strength, min. (ksi) | 65 | 55 |
| Tensile Strength, min. (ksi) | 150 | 150 |
| Elongation, min. (%) | – | 20 |
| Hardness, max. (Rb) | – | 92 |
Contact us to get a quick quote for your requirement.

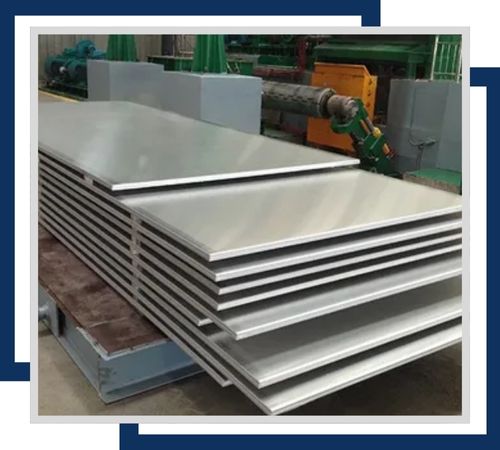

Stainless Steel 17-7 PH Hot Rolled Plates are characterized by excellent strength and hardness. Available in a range of sizes and thicknesses from 3mm to 120mm, the plates have good corrosion resistance and can be used under high-stress conditions.

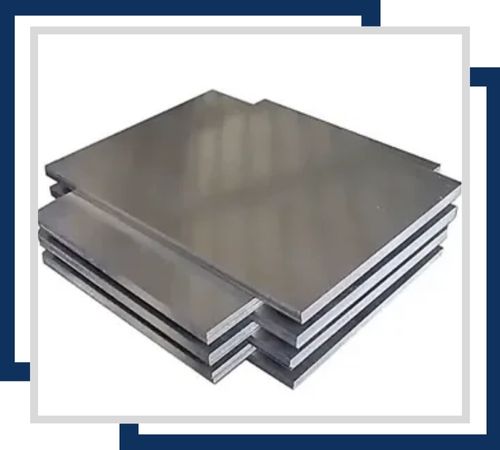

Stainless Steel 17-7 PH Cold Rolled Sheets have a very smooth surface finish and high precision. These sheets are available in a range of thickness from 0.2mm to 6mm. The sheets possess excellent corrosion resistance and are useful for applications that require tight tolerances.

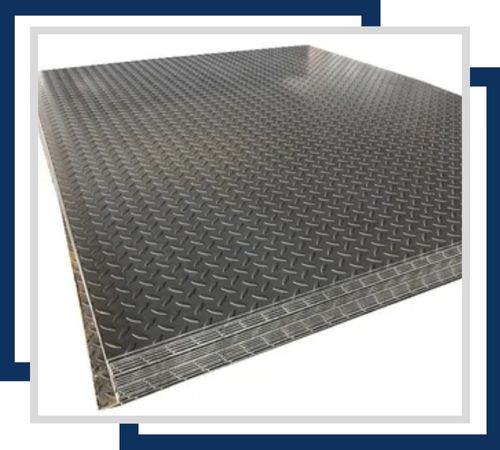

Stainless steel 17-7 PH chequered plates have a raised pattern that increases the grip and safety. It is commercially available from 2mm to 12mm in thicknesses. It is applied in flooring and other anti-skid applications. Their good corrosion resistance suits them well for both industrial and marine environments.

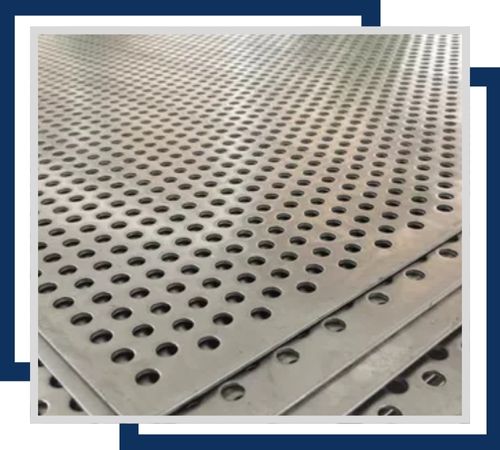

The Stainless Steel 17-7 PH Perforated Sheets have many hole sizes and patterns for various filtration and ventilation applications. They are typically in the thickness of 0.3mm to 3mm. Corrosion resistance allows these sheets to be long-lasting in all uses.

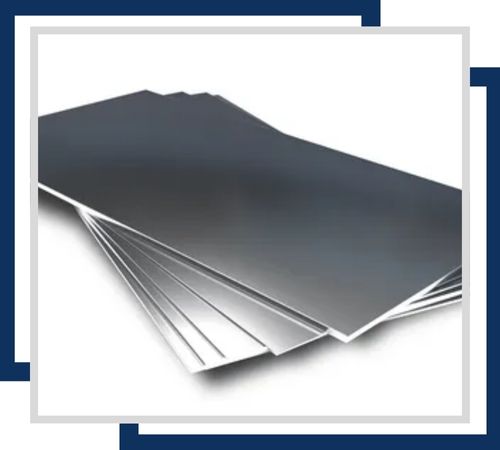

Stainless Steel 17-7 PH Shim Sheet is a thin, precision-cut sheet for spacing and alignment in machinery. It is available in 0.05mm to 3mm thicknesses, giving excellent corrosion resistance. Its sheets ensure reliable performance in very demanding mechanical environments.

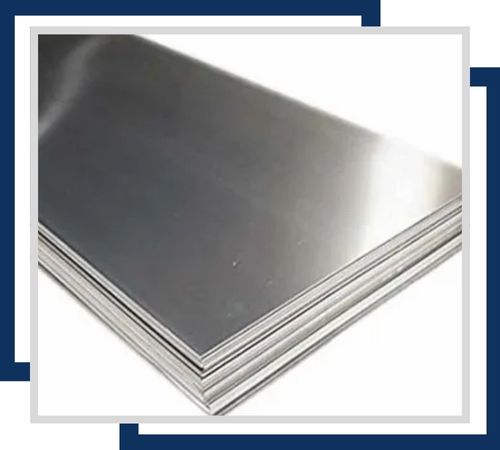

Stainless Steel 17-7 PH Polished Plates have a bright polish finish. They come in thickness from 3mm up to 100mm. These plates exhibit strong corrosion resistance. They are good for decorative and sanitary applications.
Ed Stainless is committed to providing a great customer experience by offering full documentation for its high-quality Stainless Steel 17-7 PH Sheets and Plates. We provide important documents like commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports to prove authenticity and give strength to our superior quality. Moreover, our Stainless Steel 17-7 PH Sheets and Plates are provided with many test certificates like MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. These records assuredly ensure our customer satisfaction and constant product excellence.
