Ed Stainless is one of the prime manufacturers and suppliers of stainless steel items in quality in Texas, USA. We are specialized in Stainless Steel 202 sheets and plates. Our materials for stainless steel are premier grade, including strength, corrosion resistance, and versatility. The company’s stainless steel products have great application in an array of industries- construction, automotive, and manufacturing as well. We have the commitment of the customer and try to provide satisfactory delivery, good pricing, and reliable service with a name, which makes Ed Stainless a trustworthy stainless steel name in the USA. Innovation is always driven by solutions developed for the need of the clients.
SS 202 Sheets and Plates consist of 17–19% chromium, 4–6% nickel, and 7.5–10% manganese with a maximum of 0.15% carbon content. This austenitic stainless steel provides decent tensile strength (~515 MPa) and yield strength (~275 MPa), and its elongation is extremely good (~40%). The properties offer durable performance for fabrication and structural applications. It has a clean, shiny appearance and exhibits moderate corrosion resistance, appropriate for less aggressive conditions. It also boasts excellent formability, weldability, and work-hardening behavior, which are suitable for various applications.
| Item | 202 Stainless Steel Plate (Hot rolled, cold rolled) |
| Standard | JIS, AISI, ASTM, GB, DIN, EN |
| Range | 0.5 mm To 150mm |
| Material | 202 SS Plates / Sheets / Coil |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Thickness | 0.1 to 200 mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Brand | Indian Origin, European Origin, Japanese Origin, US Origin, Korea Origin, Thailand Origin, Taiwan Origin |
| Finish | Hot rolled sheet (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Element | Content (%) |
| Iron, Fe | 68 |
| Chromium, Cr | 17- 19 |
| Manganese, Mn | 7.50-10 |
| Nickel, Ni | 43620 |
| Silicon, Si | ≤ 1 |
| Nitrogen, N | ≤ 0.25 |
| Carbon, C | ≤ 0.15 |
| Phosphorous, P | ≤ 0.060 |
| Sulfur, S | ≤ 0.030 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 515 MPa | 74694 psi |
| Yield strength | 275 MPa | 39900 psi |
| Elastic modulus | 207 GPa | 30000 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break | 40% | 40% |
Contact us to get a quick quote for your requirement.

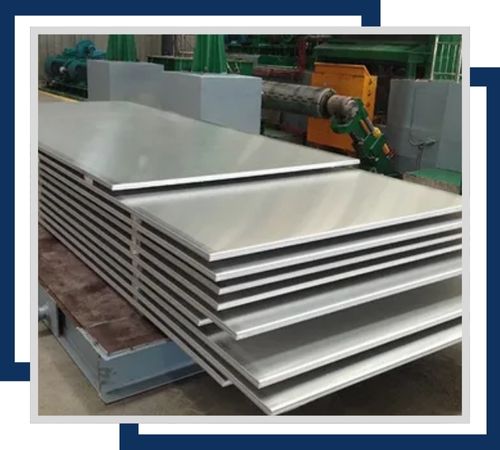

Stainless Steel 202 Hot Rolled Plates are available in thickness ranges starting from 4mm up to 150mm. The plates are rolled at high temperatures to give them more malleability and to easily form their shape. The product has good resistance to corrosion and is applied in durability and strength-based applications.

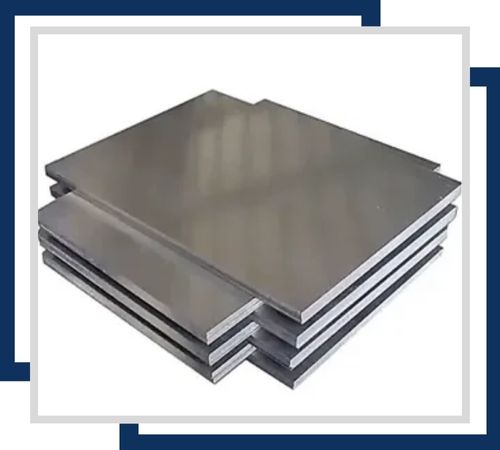

Stainless Steel 202 Cold Rolled Plates are processed by cold rolling of steel. These are a smoother and closer tolerance plate in comparison with the hot rolled ones. Good resistance to corrosion qualifies them as highly suitable for high precision requirements as well as providing an aesthetic-looking surface finish for applications.

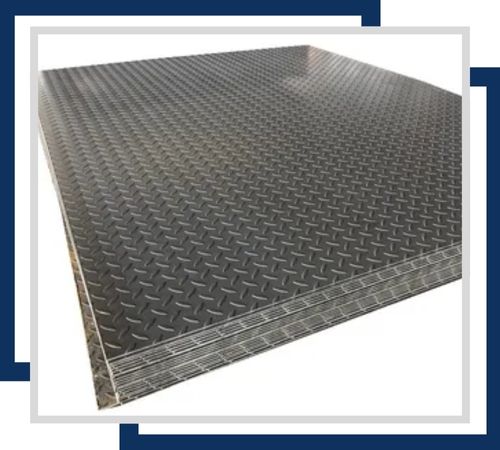

Stainless Steel 202 Chequered Sheets are offered in various thicknesses, from 1.2mm to 8mm. These sheets have a raised pattern, which is slip-resistant and suitable for flooring or walkways. Their inherent corrosion resistance will prove to be long-lasting even in adverse environments.

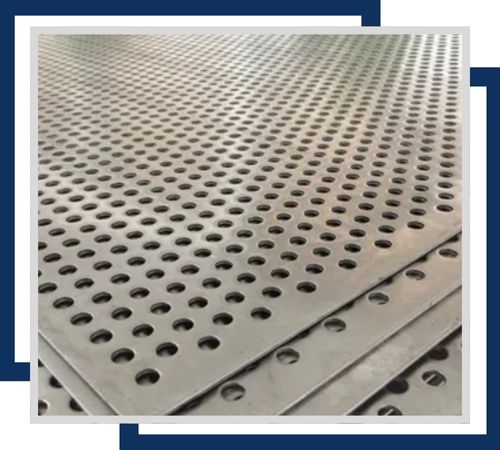

Stainless Steel 202 Perforated Sheets are manufactured in thicknesses ranging from 0.3mm to 8mm and are available in various hole patterns and sizes. These sheets are used for filtration, ventilation, and decorative purposes because of their excellent strength and corrosion resistance. The perforations reduce weight while maintaining structural integrity.

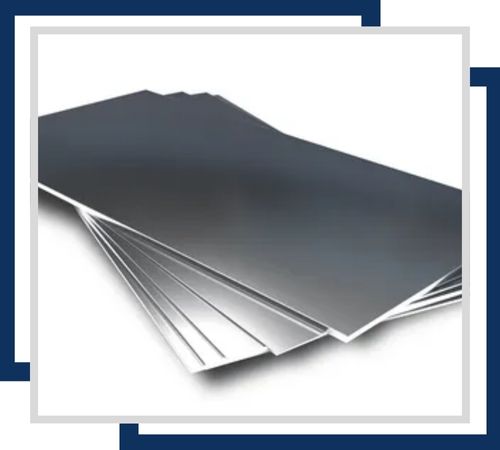

Stainless Steel 202 Shim Sheets are available in thicknesses from 0.05mm to 3mm. These sheets are precision-engineered for alignment and leveling applications. Excellent corrosion resistance ensures reliable performance in various industrial environments.

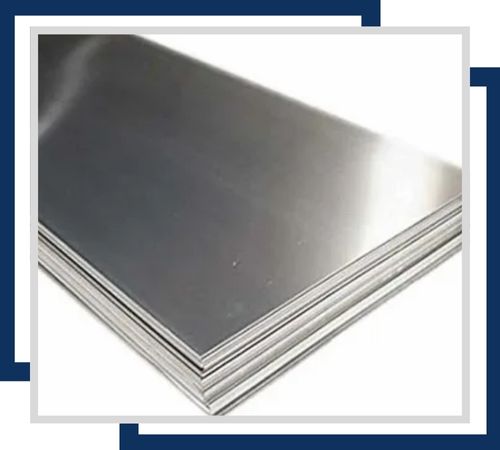

202 Polished Sheets and Plates offering good corrosion resistance, with excellent reflective appearance. Range from 0.5 to 12 mm thick and are up to 1500 mm x 3000 mm. Use for visual or architectural ends.
Ed Stainless offer a hassle-free experience for customer with complete documentation of our top-grade Stainless Steel 202 Sheets and Plates. Documents like commercial invoices, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test reports are all that we have provided for the products so that people believe in and deal with us, because these authenticate and give excellence to our product. Additional test certificates, such as MTC according to EN 10204/3.1b, PMI Test Certificate, 100 percent radiography test report, and Third-Party Inspection Certificate accompany our Stainless Steel 202 Sheets and Plates. These reflect our focus on the customers and our pursuit for excellence in our products.
Stainless Steel 202 Plates and Sheets are used extensively in kitchen utensils, restaurant appliances, architectural cladding, elevators, interior panels, and furniture. In industries, they are utilized in mildly chemical environments and structural components. They also find use in signs, appliance panels, and ornaments because of their aesthetic finish. For body panels and trim parts, SS 202 plates are employed in automobile manufacturing. Ed Stainless offers custom-cut plates and sheets to customers’ specifications for surface finish, width, and thickness, providing high-quality functional and decorative results.
