Ed Stainless has built a solid reputation as a leading manufacturer and supplier of Stainless Steel 317 Sheets and Plates right in Houston, Texas. Known for their commitment to quality, Ed Stainless caters to a variety of industries with expertly crafted solutions. Their SS 317 Sheets and Plates are particularly recognized for their outstanding corrosion resistance and durability, making them ideal for tough environments. As a customer-centric supplier, Ed Stainless prioritizes timely deliveries, competitive pricing, and adherence to international quality standards. With cutting-edge technology and a team of skilled professionals, they’ve become a go-to choice in the stainless steel supply chain throughout Texas.
The Stainless Steel 317 Sheets and Plates from Ed Stainless are made up of a blend of chromium (18–20%), nickel (11–15%), and molybdenum (3–4%), which gives them remarkable resistance to chemical attacks and pitting. They boast impressive mechanical properties, including a tensile strength of about 75,000 psi (515 MPa) and a yield strength of 30,000 psi (205 MPa), along with excellent elongation and hardness. These features make SS 317 perfect for applications that demand both high strength and corrosion resistance. Ed Stainless guarantees that every product meets ASTM A240 specifications and goes through rigorous quality checks to ensure mechanical consistency and durability.
Specifications: ASTM A240 / ASME SA240
Dimensions: ASTM, ASME, and API.
Width: 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Thickness:4mm-100mm
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface Finish: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc
Form: Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
Fe |
|
SS 317 |
0.08 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
18.00 – 20.00 |
3.00 – 4.00 |
11.00 – 15.00 |
57.845 min |
|
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
|
7.9 g/cm3 |
1400 °C (2550 °F) |
Psi – 75000, MPa – 515 |
Psi – 30000, MPa – 205 |
35 % |
Contact us to get a quick quote for your requirement.

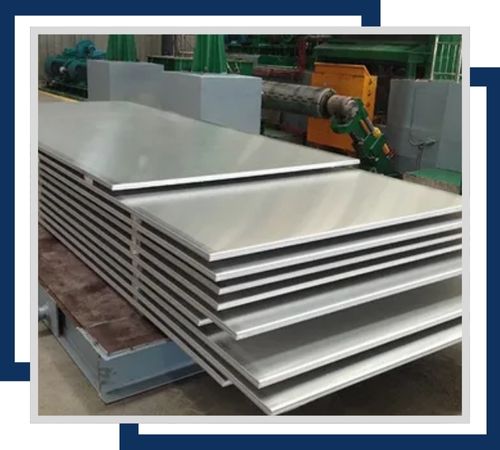

Stainless Steel 317 Hot Rolled Sheet and Plates provide excellent strength along with excellent corrosion resistance for high-temperature and aggressive chemical environments. They are used in industrial applications requiring durability and toughness.

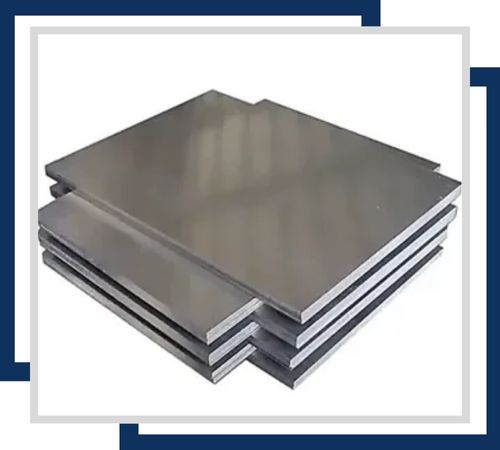

Stainless Steel 317 Cold Rolled Sheet and Plates provide a smooth surface finish and precise dimensions, suitable for any applications in chemical, marine, pharmaceutical industries with high requirements of superior corrosion resistance and aesthetic quality.

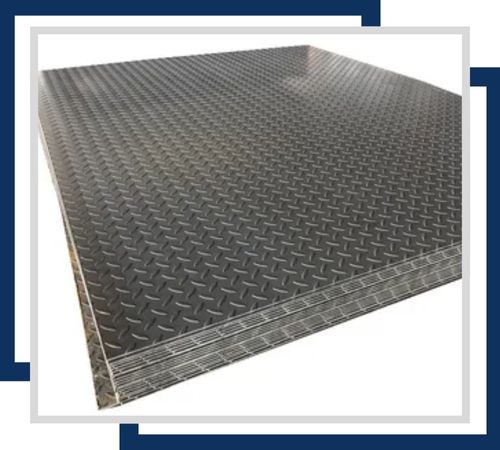

Stainless Steel 317 Chequered Sheet and Plates are used in slip-resistant and long-lasting applications like flooring and stair treads. They are excellent corrosion-resistant materials, which can be used for both industrial and decorative purposes.

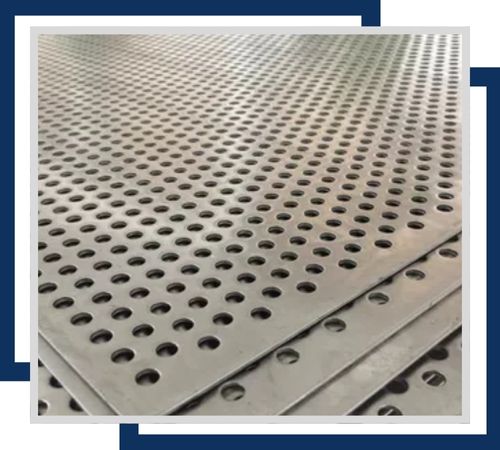

Stainless Steel 317 Perforated Sheet and Plates are used for filtration, ventilation, and architecture. It incorporates strength with the corrosion resistance capabilities of the plates along with useful perforations; hence, ideal for custom design and structural purposes in aggressive applications.

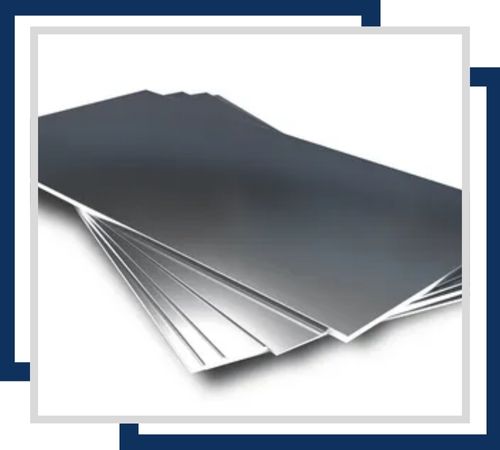

Stainless Steel 317 Shim Sheet and Plates are deployed for precision spacing and alignment within machinery and equipment. It shows high strength as well as resistant to corrosion features, thus sustaining stability and endurance in critical operations.

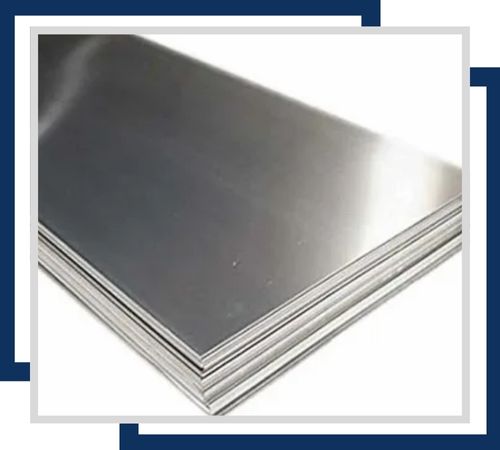

Stainless Steel 317 Polished Sheet and Plates have a very high-quality, reflective finish which is suitable for decorative and architectural applications. These have excellent corrosion resistance and are used in the environments where the appearance and durability are key requirements.
The Stainless Steel 317 Sheets and Plates produced by Ed Stainless are widely utilized in industries that require exceptional corrosion resistance and high-temperature strength. Common applications include chemical processing equipment, pulp and paper manufacturing, food processing facilities, power generation systems, and marine environments. These sheets and plates are particularly effective in settings where they are exposed to acids, chlorides, and other corrosive substances. Thanks to Ed Stainless’s commitment to high-quality manufacturing and dependable supply capabilities, clients across Texas trust their SS 317 products for demanding industrial applications.
