Ed Stainless is a top-notch manufacturer and supplier located in Houston, Texas, known for its high-quality SS 422 sheets and plates. With a reputation for providing outstanding stainless steel products, Ed Stainless caters to a variety of industries across the USA, offering reliable materials that meet strict standards. Thanks to their advanced manufacturing techniques and dedication to excellence, Ed Stainless guarantees precise dimensions, durability, and corrosion resistance in every SS 422 product. The company takes pride in its timely delivery, competitive pricing, and exceptional customer service, making it a go-to partner for businesses in need of premium stainless steel sheets and plates in Texas and beyond.
The SS 422 stainless steel sheets and plates from Ed Stainless boast a well-balanced composition of about 12-14% chromium and 0.25-0.35% carbon, which enhances their hardness and wear resistance. This martensitic stainless steel is known for its impressive tensile strength, typically around 655 MPa, and a yield strength close to 275 MPa. With moderate corrosion resistance and good toughness, SS 422 can be heat-treated to further improve its mechanical properties. The alloy has a hardness range of 40-45 HRC, making it perfect for applications that require both strength and moderate corrosion resistance.
| Specifications : | ASTM A240 / ASME SA 240 |
| Dimensions : | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, IS & Custom Chemistry |
| Production Route : | Hot Rolled, Cold Rolled |
| Size : | Width from 100mm to 3000mm ; Length from 500mm to 12000mm |
| Thickness : | 0.1mm to 400mm |
| Delivery Condition : | As Rolled, Annealed, Quenched and Tempered, Normalized |
| Surface Finish : | Plain, Brushed, Cladded |
| Cr 11.0 – 12.5% | Mo 0.9 – 1.30% | W 0.9 – 1.30% | Mn 0.50 – 1.0% | Ni 0.50 – 1.0% | |||||
| Si 0.50% Max | V 0.20 – 0.30% | C 0.20 – 0.25% | P 0.025% Max | Fe Balance |
| Property | Minimum | Maximum | |||||||
| Yield Strength Range (Rp0.2 Offset) (ksi) | 97 | 130 | |||||||
| Tensile Strength Range (Rm) (ksi) | 130 | 160 | |||||||
| Elongation (AL=5 x Ø) | 15.0% | 17.0% | |||||||
| Hardness, Rockwell (C) | – | 21 | |||||||
| Modulus of Elasticity (GPa): 76 | |||||||||
| Machineability General Index: – | |||||||||
| Density (lb/ft3) | Electrical conductivity (% IACS) | Thermal conductivity (BTU/h-ft-°F) | Specific heat capacity (BTU/lb-°F) | Thermal expansion (µm/m-K) |
| .2817 | 4.7% | 14 | 0.11 | 10 |
Contact us to get a quick quote for your requirement.

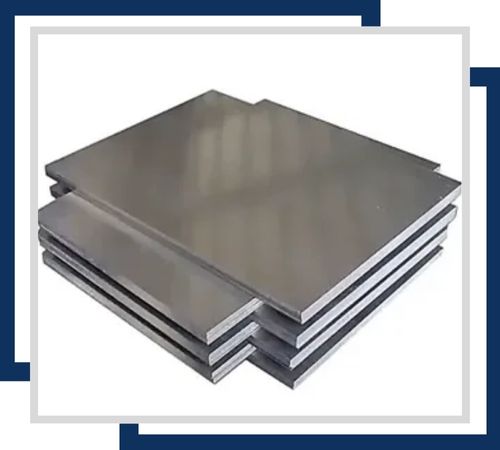

SS 422 cold rolled sheets are stainless steel material that is strong, durable, and furnished with a smooth surface. These sheets are available in various thicknesses, from 0.1mm to 6mm and can be manufactured with the desired width and length for any industrial usage.

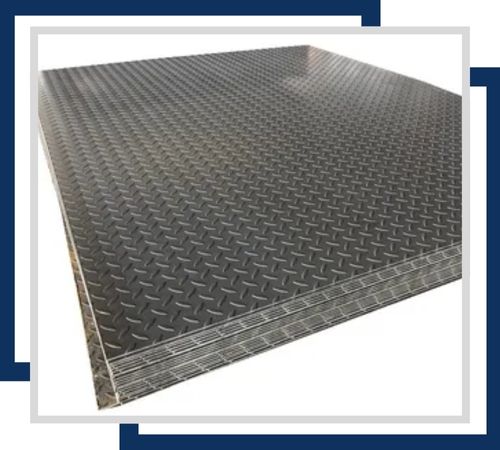

SS 422 chequered plates are highly durable stainless steel sheets with a raised design that increases grip and limits slipping. Used for flooring, walkways, and other industrial applications, chequered plates vary in sizes but are usually 2mm to 8mm thick.

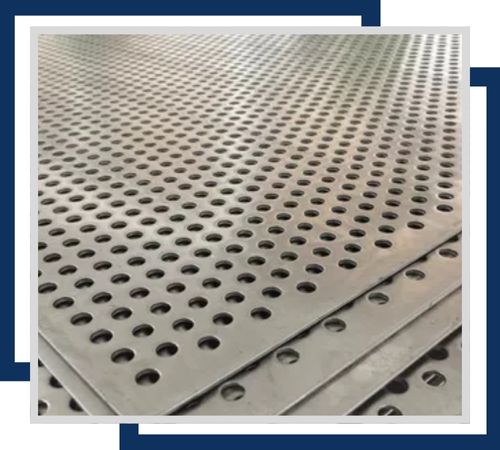

SS 422 perforated plates are stainless steel sheets designed with precision holes for industrial use. The durability and corrosion resistance of these plates are excellent and usually available in sizes from 0.5mm to 12mm in thickness and in a customizable hole pattern, making them versatile in performance.

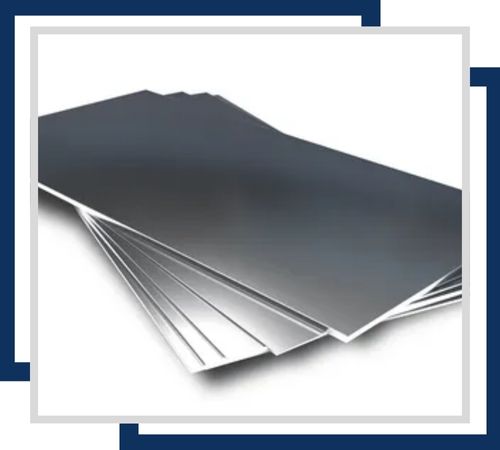

These are thin sheets in stainless steel 422, precision engineered to withstand excellent corrosion resistance and high temperatures. They are usually found in sizes 0.1mm to 5mm in thickness. There is always a need to make precise alignment and gap filling in several industrial applications.

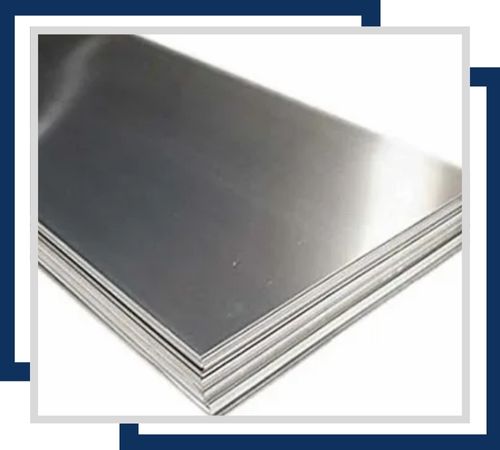

SS 422 Polished Plates are most resistant to corrosion yet very strong and offer a finishing finish quality. Known to be of high quality, the plates vary in size, and may differ in thickness that can range from 3mm up to 100mm, thus giving versatility to various industries.
Ed Stainless is committed to delivering a seamless customer experience by providing complete documentation for the Stainless Steel 422 Sheet and Plate products, ensuring top-notch quality. Commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plans, and NABL-approved lab test reports are given from Ed Stainless. These papers are proof of our authenticity and superior quality products. Furthermore, we provide test certificates for our Stainless Steel 422 Sheets and Plates, which include MTC as per EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third-Party Inspection Certificates, which demonstrate our customer-centric approach and excellence.
Ed Stainless’s SS 422 sheets and plates are widely utilized in sectors like automotive, aerospace, petrochemical, and manufacturing, thanks to their excellent strength and moderate corrosion resistance. These stainless steel products are ideal for components that face high mechanical stress, commonly found in shafts, valves, fasteners, and structural parts. Their heat-treatable nature allows for customization in wear-resistant tools and machinery parts. Moreover, SS 422 performs well in mildly corrosive environments, making it suitable for oil and gas pipelines, industrial equipment, and pressure vessels, ensuring durability and longevity in demanding applications.
