Ed Stainless is a renowned producer and distributor of high-quality Stainless Steel 436 Sheet and Plates in Houston, Texas, USA. Committed to excellence and customer satisfaction, Ed Stainless is a prime supplier of superior stainless steel products designed for performance, corrosion resistance, and durability. With several years of experience in the stainless steel business, the company caters to different industrial segments in Texas and the USA. Their 436 sheets and plates of Stainless Steel comply with international standards and specifications and are well suited for automobile, chemical, and architecture industries. Ed Stainless is noted for its efficient delivery, competitive rates, and tailored fabrication services.
Ed Stainless’s 436 sheets and plates of Stainless Steel in Texas consist mainly of iron, chromium (16–18%), and molybdenum (0.75–1.25%) and contain minute levels of carbon, silicon, and manganese. This composition offers increased corrosion resistance, especially in oxidizing conditions. Physically, SS 436 has tensile strength of approximately 415 MPa, yield strength of 275 MPa, and excellent formability and ductility. These characteristics render it fit for use in deep drawing and other operations involving forming. Ed Stainless checks each batch to ensure that the chemical composition and mechanical performance conform to ASTM A240 standards.
| Specifications | ASTM A240, ASME SA240 |
| Standard | JIS, ASTM, AISI, GB, EN, DIN |
| Surface | 2B, BA, HL, No. 4, Mirror etc. |
| Finish | Cold rolled, Hot rolled |
| Thickness | 0.3mm–100mm |
| Size | 1000mm, 1219mm, 1250mm, 1500mm, 1524mm, 2000mm |
| Grade | Fe | Cr | Ni | Mo | Mn | Nb | Si | Ti | Ta | C | P | S |
| SS 436 | 81.3 | 16 | – | 1 | 1 | 0.5 | – | – | 0.5 | 0.12 | 0.040 | 0.030 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness |
| 0.28 lbs/in3 7.74 g/cm3 | 2600 – 2750 ° F (1427 – 1510 °C) | 77 KSI min (531 MPa min) | 53 KSI min (365 MPa min) | 40 % | Rb 89 max |
Contact us to get a quick quote for your requirement.

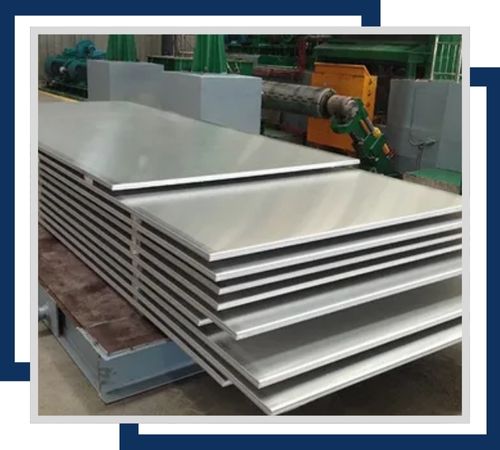

The alloy 436 stainless steel hot-rolled sheets possess excellent resistance to corrosion under conditions of high stress. Normally available in a form whose thickness runs from 3 mm up to 25 mm and width up to 2000 mm, this sheet is used in fabrication and construction.

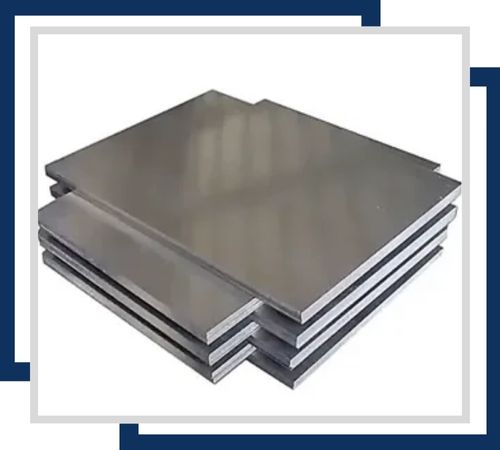

Stainless Steel 436 Cold Rolled Plates offer excellent resistance to corrosion as well as an excellent surface finish. Available in thicknesses of 0.5 mm-6 mm, and widths of up to 1500mm, these plates are perfect for applications that are precise and aesthetically designed.

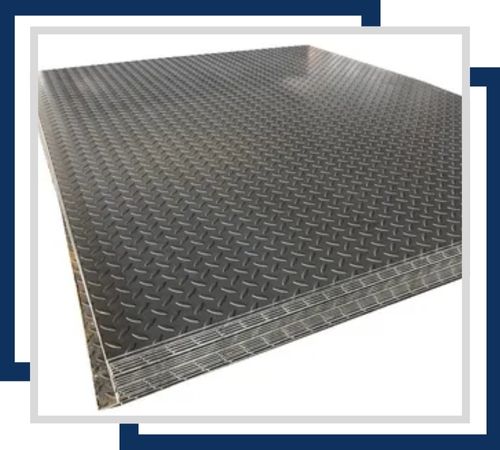

Stainless Steel 436 Chequered Sheets provide good corrosion resistance along with an anti-slip surface. The sheets are available in 1 mm to 6 mm thickness and in standard sizes up to 2000 mm x 1000 mm. Stainless Steel 436 Chequered Sheets are often used in flooring and safety applications.

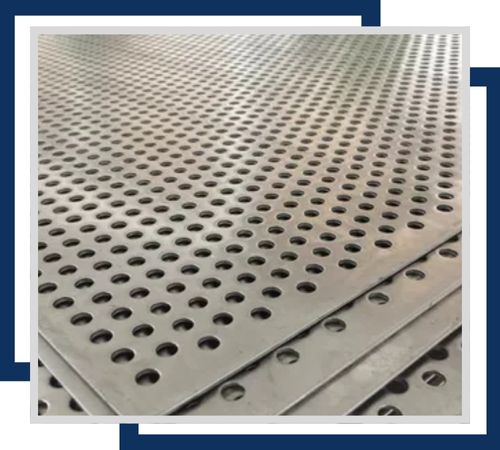

High-quality corrosion resistance is offered by stainless steel 436 perforated plates, available with custom hole patterns for effective ventilation and filtration. The product is supplied in thicknesses from 0.8 mm to 5 mm and sheet sizes up to 2000 mm x 1000 mm, and used in industrial and architectural applications.

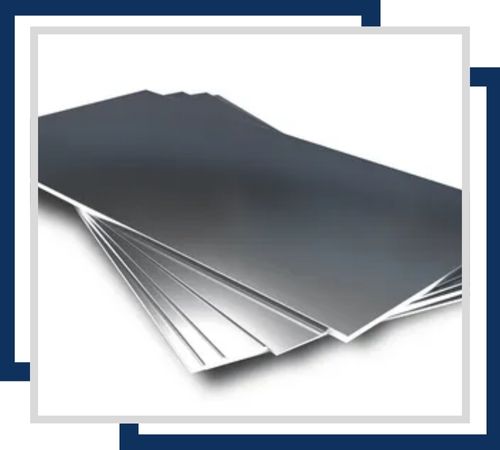

Stainless Steel 436 Shim Sheets, being reliable to corrosion resistance along with precise thicknesses for gap filling and alignment, are also available in usual thicknesses varying from 0.1mm to 3mm and usually up to a size of 3000 mm x 1500 mm with machinery and assembly processes.

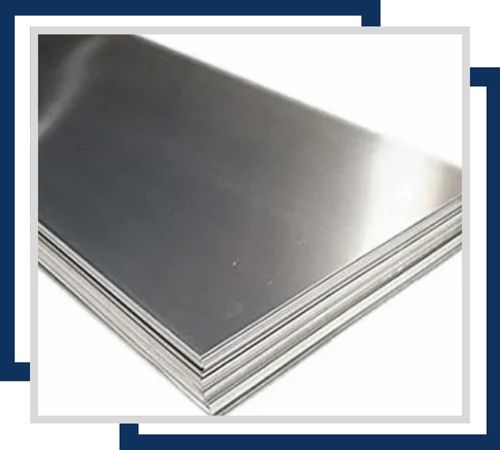

High corrosion resistance coupled with a polished finish, these Stainless Steel 436 Polished Plates are stocked in sizes up to 1500 mm x 3000 mm and can be supplied between 0.5 mm – 6mm thick. Such plates are predominantly used in decoration and architectural areas.
Ed Stainless has set out a commitment to provide the best customer services with complete documentation of its high-quality Stainless Steel 436 Sheets and Plates. The company provides primary documents such as commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports. All these documents ensure the genuinity and quality at their highest level of products and tend to increase trust and confidence among its users. Along with this, we also supply Stainless Steel 436 Sheets and Plates with multiple test certificates issued on MTC as per EN 10204/3.1b, PMI Test Certificate, radiography test reports on 100%, and third-party inspection certificate. The above proofs confirm our high regards for satisfaction to the esteemed customer and continually seeking excellence through the products produced by us.
Ed Stainless’ Stainless Steel 436 Sheets and Plates from Houston, Texas, are applied extensively across various industries due to their greater corrosion and oxidation resistance. They are specifically designed for automotive uses like exhaust systems, where performance at high temperatures is essential. Besides, SS 436 is employed in heat exchangers, kitchen equipment, architectural trimmings, and industrial process equipment. Its superior formability and thermal fatigue resistance make it perfect for high-temperature use. Ed Stainless provides these plates and sheets to fabricators, OEMs, and contractors with a consistent quality, surface finish, and precision cut sizes to suit various industrial and commercial uses.
