Ed Stainless stands out as a top-notch manufacturer and supplier of high-quality Stainless Steel 347/347H sheets and plates right in Houston, Texas. Known for our precision engineering and exceptional craftsmanship, we cater to a wide range of industrial needs with our premium-grade stainless steel products. Our 347/347H sheets and plates are crafted to provide excellent corrosion resistance, remarkable mechanical strength, and long-lasting durability, making them perfect for critical applications. At Ed Stainless, we’re dedicated to customer satisfaction, blending advanced manufacturing techniques with strict quality control to ensure our materials meet the highest industry standards. Whether you’re in Texas or beyond, Ed Stainless is your go-to partner for dependable stainless steel solutions.
The Stainless Steel 347/347H sheets and plates we produce feature a stable austenitic structure, enriched with chromium (17-19%), nickel (9-13%), and niobium, which boosts their strength at high temperatures and enhances corrosion resistance. The ‘H’ grade has a higher carbon content, which improves creep resistance when things heat up. Typical mechanical properties include a tensile strength of about 515 MPa, yield strength around 205 MPa, and impressive elongation of roughly 40%. These traits ensure outstanding performance in demanding environments, making Ed Stainless 347/347H sheets and plates a trustworthy choice for various industrial applications.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| C | Cr | Mn | Ni | P | S | Si | Cb/Ta | |
|---|---|---|---|---|---|---|---|---|
| 347 | 0.08 max | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.04 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| 347H | min: 0.04 max: 0.10 | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.03 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| Grade | Tensile Strength ksi (MPa) min | Yield Strength 0.2% ksi offset ksi (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 347/347H | 75 (515) | 30 (205) | 40 | 201 | 95 |
Contact us to get a quick quote for your requirement.

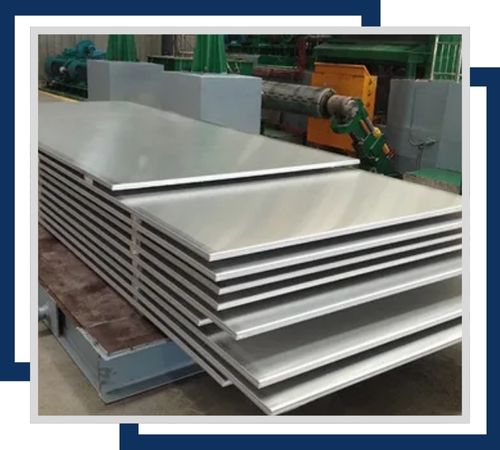

Known for excellent corrosion resistance, these sheets are produced through hot rolling. They are available in thicknesses from 3mm to 50mm and widths up to 2000mm, providing durability in high-temperature environments and are used in heavy-duty applications

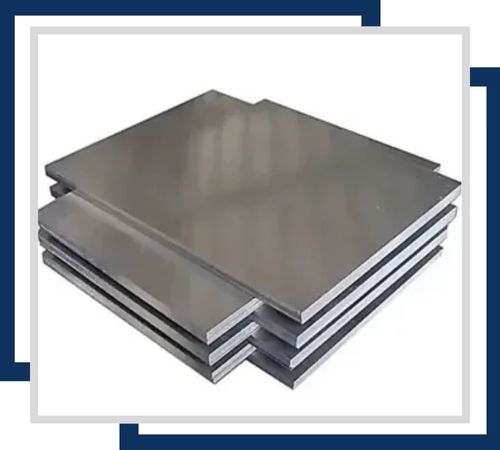

These plates are cold-rolled for a smooth finish and have superior corrosion resistance. They are available in thicknesses ranging from 0.5mm to 12mm and widths up to 1500mm, which is ideal for precision applications and structural components.

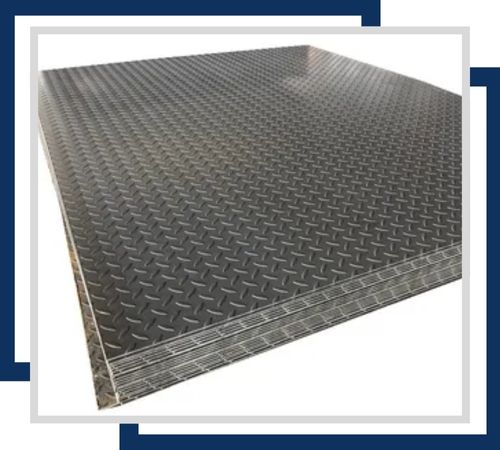

These plates offer excellent corrosion resistance, with a patterned surface for better traction and safety. They are available in various thicknesses, from 1.5mm to 6mm, and up to 1500mm in width, which makes them useful for flooring and industrial applications.

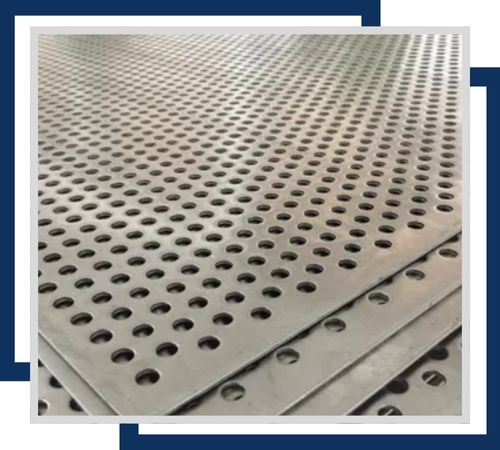

Offering high corrosion resistance, the sheets are perforated in a variety of hole patterns to achieve ventilation and aesthetics. Typical thicknesses vary between 0.5mm to 6mm, while the width may be up to 2000mm for filter applications and decorative panels.

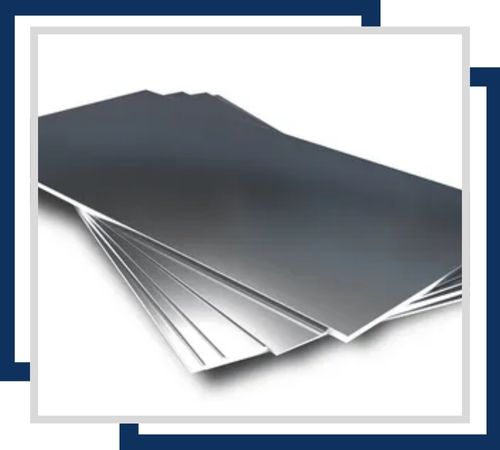

The shim sheets have excellent corrosion resistance. Thickness can range from 0.1mm to 2mm, width up to 1000mm, and are precision cut for exact measurements. They are used where fine adjustments are necessary.

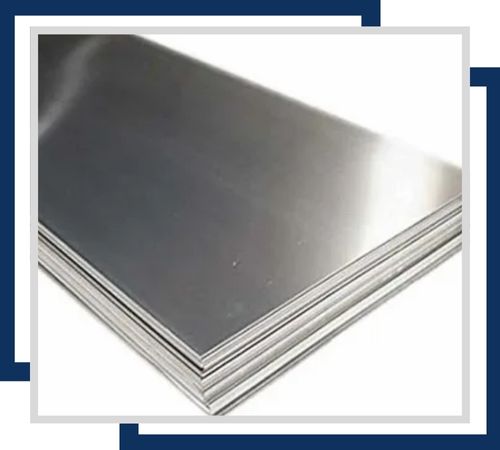

These plates feature outstanding corrosion resistance, and have a polished surface for enhanced appearance and cleanliness. They are available in widely used thicknesses that range from 3mm to 25mm and widths up to 2000mm. They find applications mainly in decorative and sanitary use.
Ed Stainless will provide customers with an unmatched customer experience based on complete documentation about our superior Stainless Steel 347 and 347H sheets and plates. Essential documents including commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports shall be provided from time to time by us in our products that ascertain the genuity and exceptional quality of products supplied to the valuable customers. Our Stainless Steel 347/347H sheets and plates also include a test certificate: MTC as per EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates, in regard to our strict quality commitment toward our valued clients.
Our 347/347H sheets and plates are widely utilized in industries that require materials with exceptional corrosion resistance and stability at high temperatures. You’ll find them in aerospace components, chemical processing equipment, heat exchangers, power generation plants, and exhaust systems. The addition of niobium significantly enhances resistance to intergranular corrosion, making these materials ideal for welding and fabrication in tough environments. Ed Stainless guarantees that our 347/347H products meet the rigorous demands of industries like petrochemical, automotive, and food processing, providing durability you can count on.
