Home > Sheet and Plates > SS 415 Sheet and Plates
Ed Stainless has built a solid reputation as a leading manufacturer and supplier of SS 415 Sheets and Plates in Houston, Texas, USA. With a strong focus on providing top-notch stainless steel products, Ed Stainless is known for its SS 415 Sheets and Plates, which are celebrated for their impressive strength, durability, and resistance to corrosion. The company boasts state-of-the-art manufacturing facilities and a talented workforce, catering to a variety of industries throughout Texas and beyond. Customers turn to Ed Stainless for its high product standards, competitive pricing, and reliable delivery. As a trusted supplier, Ed Stainless prioritizes customer satisfaction, backed by technical expertise and adherence to industry standards.
The SS 415 Sheets and Plates from Ed Stainless are made from martensitic stainless steels, containing about 12-14% Chromium, 0.05-0.15% Carbon, along with small amounts of Manganese, Silicon, and Nickel. This unique blend gives the material excellent hardness and decent corrosion resistance. On the mechanical side, SS 415 boasts a tensile strength of 700–850 MPa, a yield strength of around 500 MPa, and an elongation of 15-20%, making it perfect for structural applications. The material is also known for its good machinability and can be heat-treated to enhance its mechanical properties, making Ed Stainless products ideal for critical engineering tasks.
| Specifications : | ASTM A240 / ASME SA240 |
| Dimensions : | ASTM, ASME and API |
| Standard : | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Surface : | 2B, 2D, BA, NO.4, NO.8, 8K, Mirror,Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching |
| Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm,etc. |
| Finish : | Black,Bright Polished,Rough Turned,No.4 Finish,Matt Finish,BA Finish |
| Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc. |
| Grade | C | Mn | P | S | Si | Ch | Ni | Mo |
| SS 415 | 0.05 max | 0.50-1.00 | 0.030 max | 0.030 max | 0.60 max | 11.5-14.0 | 3.5-5.5 | 0.50-1.00 |
| Tensile Strength R₃ N/mm² | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 |
| 0.2% Offset Yield Strength Rᵖ ≥N/mm² | 520 | 520 | 520 | 520 | 520 | 520 | 520 |
| Elongation in 2 inches, % | 15 min | 15 min | 15 min | 15 min | 15 min | 15 min | 15 min |
| Grade | Density lbm/in3 | Melting Range(°F) | Thermal Conductivity(BTU-in/hr- ft. °F) | Electrical Resistivity(in x 10-6) | Modulus of Elasticity (psi x 106 | Coefficient of Thermal Expansion (in/in)/°F x 10-6 | Specific Heat(BTU/lb/°F) |
|---|---|---|---|---|---|---|---|
| 415 | -at 68°F: 0.280 | 2700 to 2790 | 187 at 212°F | 23.7 at 68°F | 29 | 6.0 at 32 – 212°F | 0.11 at 68°F to 212°F |
| – | – | – | – | – | 7.5 at 68 – 1200°F | – |
Contact us to get a quick quote for your requirement.

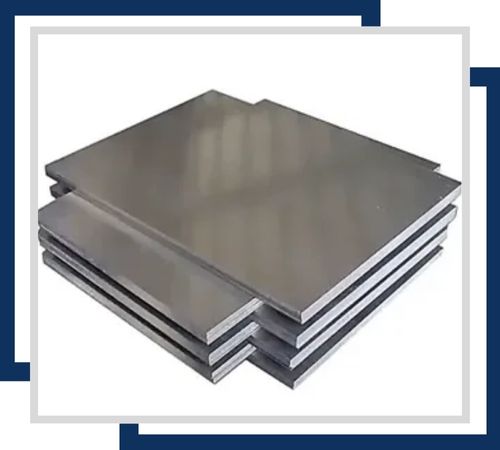

SS 415 Cold Rolled Sheets are stainless steel sheet with a bright surface finish, high strength, and excellent durability. Sheets available in various sizes between 0.3 mm to 3.0 mm thickness range and from 1000 mm to 2000 mm width with suitable applications.

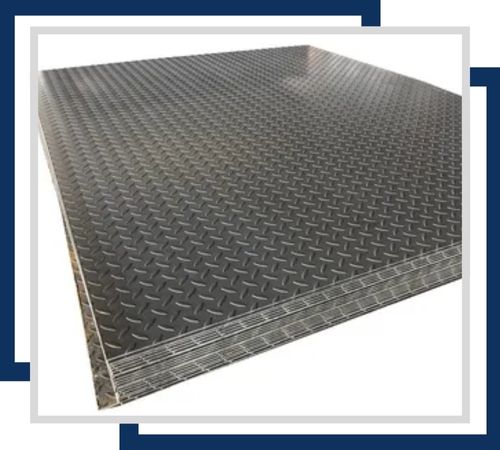

SS 415 chequered plates are stainless steel sheets with raised, textured patterns on them for maximum slip resistance and strength. It is available in various thicknesses and sizes, and it finds its application as a flooring or ramp material as well as an industrial application in the form of excellent corrosion resistance and aesthetic value.

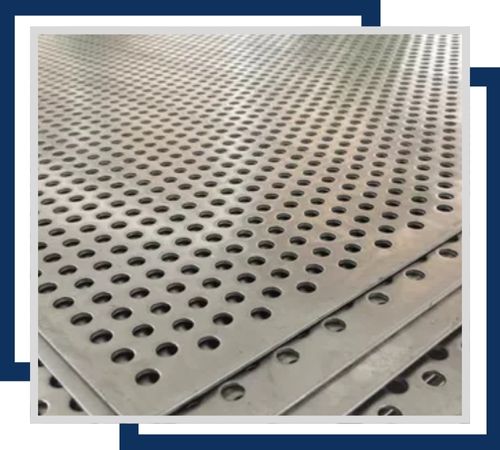

SS 415 perforated plates are of high-quality stainless steel sheets designed with precise holes to provide better ventilation, filtration, and strength. The plates can be available in a variety of sizes, with the standard being 4′ x 8′, or as custom sizes depending on the particular application in industries.

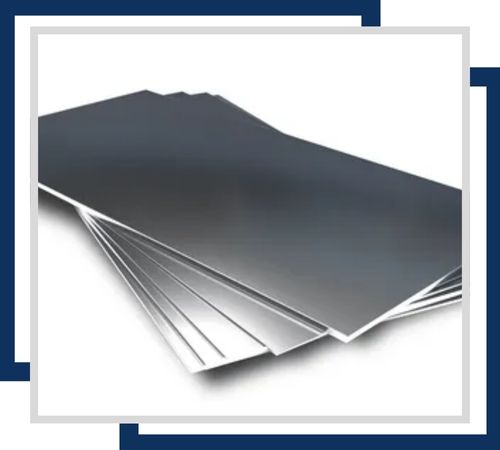

SS 415 Shim Sheets are precision engineered stainless steel sheets for industrial purposes. These have excellent corrosion resistance and strength with sizes ranging from 0.05mm to 5mm thickness and various lengths and widths, which can be customized according to the specific need.

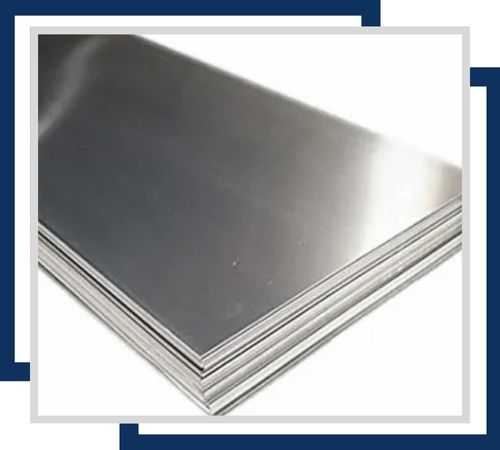

SS 415 Polished Plates are stainless steel sheets of great quality, highly recognized for corrosion resistance, strength, and shine. The SS 415 plates vary in different sizes, normally in the thickness between 0.5mm and 50mm. The product is available in any length and width as per the needs of various industrial applications.
Ed Stainless maintains a commitment for hassle-free experiences for our esteemed customers. Here, at this company, our high-quality SS 415 Sheet and Plates shall be offered completely documented to create a better buyer-seller market. Documents as commercial invoices, Packing lists, fumigation certificates, Heat Treatment Charts, QA plans, along with the Test Reports done with NABL approvals, these add value in maintaining the genuity and outstanding quality of products produced by this unit. In addition, we provide Stainless Steel 415 Sheets and Plates with various test certificates, such as MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificates, in order to prove our commitment to product excellence and customer satisfaction.
Ed Stainless’ SS 415 Sheets and Plates find their way into various applications that demand high strength, hardness, and moderate corrosion resistance. They are commonly used in industries such as aerospace, automotive, defense, oil and gas, and power generation. These plates are perfect for components like shafts, valves, fasteners, cutlery, and pump parts, where wear and impact resistance are crucial. In construction, they serve as load-bearing structures and heavy-duty frameworks. Ed Stainless guarantees that each sheet and plate is crafted to meet stringent industry standards, making them a dependable choice for clients in Texas who are looking for robust and high-performance stainless steel solutions.
