Ed Stainless is a top-notch manufacturer and supplier located in Houston, Texas, focusing on high-quality Stainless Steel 316 and 316L sheets and plates. With years of experience under their belt, Ed Stainless is dedicated to providing products that meet the tough demands of various industries. They pride themselves on precision manufacturing, timely deliveries, and competitive pricing, serving clients not just in Texas but across the entire USA. Their deep expertise in stainless steel makes Ed Stainless a go-to partner for businesses looking for durable, corrosion-resistant, and dependable stainless steel solutions.
The Stainless Steel 316 and 316L sheets and plates from Ed Stainless are made up of iron, along with 16-18% chromium, 10-14% nickel, and 2-3% molybdenum, which boosts their resistance to corrosion, particularly against chlorides. These materials boast impressive mechanical properties, including excellent tensile strength, with yield strength typically around 30,000 psi, and good ductility. The 316L variant has a lower carbon content compared to 316, which enhances its weldability and minimizes the risk of carbide precipitation. Both grades are known for their high toughness and strength at elevated temperatures, making them perfect for demanding applications.
| Standard | ASTM A240, ASME SA240 |
| Thickness | 0.1mm to 12 mm Thk |
| Sheet and Plate Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching. |
| Finish | Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated). |
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
|
316 |
Min |
– |
– |
– |
0 |
– |
16.0 |
2.00 |
10.0 |
– |
|
Max |
0.08 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
|
|
316L |
Min |
– |
– |
– |
– |
– |
16.0 |
2.00 |
10.0 |
– |
|
Max |
0.03 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
|
ade |
Tensile Str
(MPa) min |
Yield Str
0.2% Proof
(MPa) min |
Elong
(% in 50mm) min |
Hardness |
|
|
Rockwell B (HR B) max |
Brinell (HB) max |
||||
|
316 |
515 |
205 |
40 |
95 |
217 |
|
316L |
485 |
170 |
40 |
95 |
217 |
Contact us to get a quick quote for your requirement.

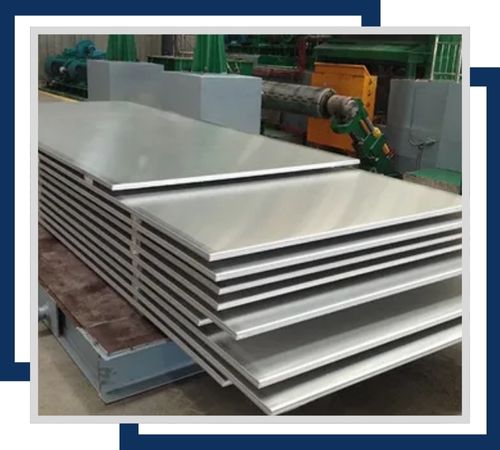

Stainless Steel 316 Hot Rolled Plates are great plates for numerous applications due to excellent corrosion resistance. The hot rolled plates available vary in size, from 4mm up to 150mm in thickness, and from 2000mm in width.

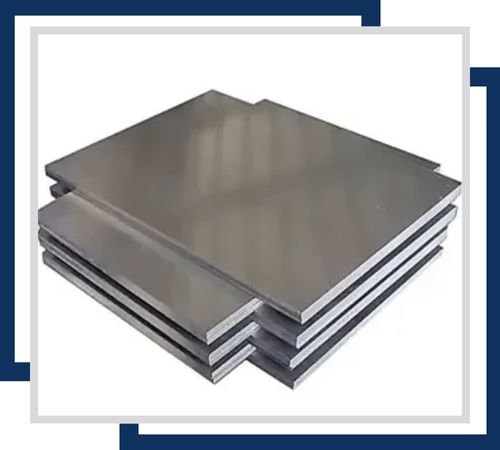

Stainless Steel 316L Cold Rolled Sheets are famous for their high corrosion resistance. The sheets come in thickness from 0.3mm to 6mm and width up to 2000mm. These sheets offer a smooth finish and are used in applications where precision and aesthetic appeal are required.

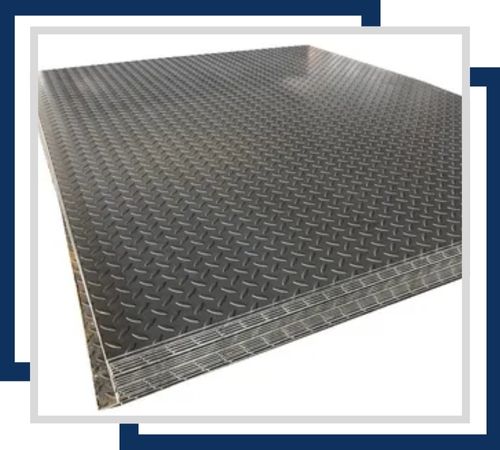

The chequered stainless steel 316L sheets have a raised diamond pattern that gives it a better grip and less slipping. The thicknesses of the sheets are from 3mm to 8mm, and sizes are up to 1500mm x 3000mm for flooring and walkways.

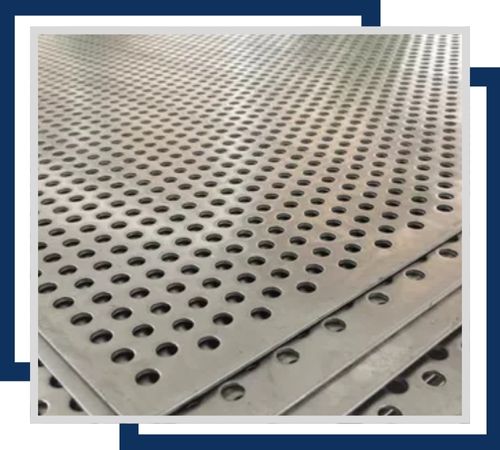

Stainless Steel 316 Perforated Plates provide superior corrosion resistance. The products are available in different thicknesses of 0.4mm to 12mm with a range of hole sizes and patterns, suitable for several industrial applications in filtration and ventilation.

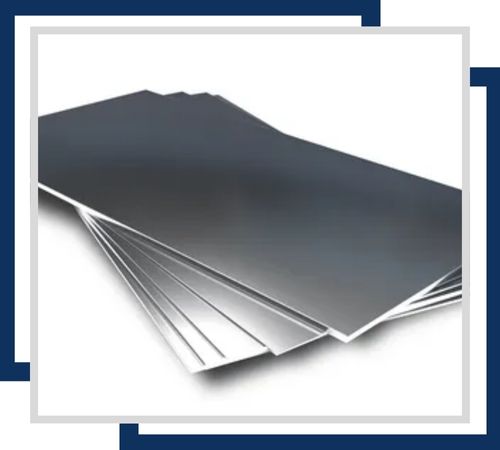

Stainless steel 316L shim sheets-very thin material, very sharp, corrosion resisting, with many applications for spacers and other alignment needs in machinery and structurals from 0.05mm up to 3mm with cut options by specific size or width.

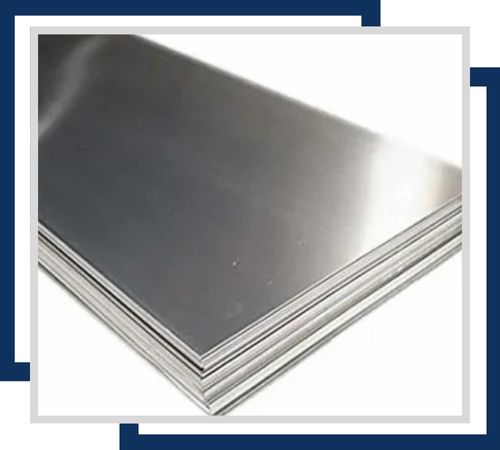

Stainless Steel 316L Polished Plates have high corrosion resistance along with a bright mirror finish. The plates come in a variety of thickness, from 0.5mm to 50mm, and sizes up to 2000mm x 6000mm for decorative purposes, architectural applications, and other heavy industrial uses.
Ed Stainless focuses on an hassle-free experience for customers while providing rich documentation for our stainless steel sheets/plates of high-quality type 316 and 316L. We guarantee the authenticity and superior quality of our products with guaranteed documents such as commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports. Our Stainless Steel 316/316L Sheets and Plates also come with various test certificates which include MTC in accordance with EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates. Our company promises customer satisfaction and keeps on looking forward to the product excellence.
Ed Stainless’s Stainless Steel 316/316L sheets and plates find extensive use in chemical processing, marine environments, and the pharmaceutical industry, thanks to their outstanding corrosion resistance and durability. They are particularly well-suited for manufacturing heat exchangers, pressure vessels, and piping systems that need to withstand harsh conditions. The 316L variant is especially popular in welded structures, food processing equipment, and medical devices, where preventing contamination and ensuring hygiene are crucial. Ed Stainless’s products deliver reliable performance across automotive, construction, and aerospace sectors, consistently meeting strict industry standards and client requirements.
