Ed Stainless Manufacturer and Suppliers, located in Houston, Texas, stands out as a top-notch manufacturer and supplier of SS 15-5 PH sheets and plates. Known for their exceptional stainless steel products, they focus on delivering high-quality 15-5 PH stainless steel solutions that cater to various industrial needs. With a strong dedication to precision, durability, and customer satisfaction, Ed Stainless guarantees that each sheet and plate meets rigorous quality standards. Their expertise and cutting-edge manufacturing techniques have made them a reliable partner in Texas and throughout the USA for industries that require outstanding corrosion resistance and mechanical performance in stainless steel materials.
The SS 15-5 PH stainless steel sheets and plates from Ed Stainless boast a composition that includes chromium (14-15.5%), nickel (3-5%), and copper (2.5-4%), along with trace amounts of manganese, silicon, and carbon. This precipitation-hardening alloy is known for its excellent corrosion resistance and impressive strength. Its mechanical properties feature a tensile strength of up to 1400 MPa, yield strength around 1200 MPa, and good elongation (~10%). The material also showcases remarkable toughness and fatigue resistance, and it can be heat treated to boost hardness and strength, making it perfect for demanding industrial applications.
| Specification : | ASTM A564 / ASME SA564 AMS 5643 |
| Standard : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length : | 1 to 6 Meters, Custom Cut Lengths |
| Form : | Round, Square, Hex (A/F), Rectangle Etc. |
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 15-5 PH | 0.07 max | 0.15-0.45 max | 14.0-15.0 max | 2.5-4.5 max | Bal | 1.0 | 3.5-5.5 | 0.04 | 0.03 | 1.0 |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 15-5 PH | 161,000 | 140,000 | 7.6% | C35 |
| Density | Electrical conductivity (% IACS) | Thermal conductivity (BTU-in/hr-ft²-°F) | Specific heat capacity | Thermal expansion (1/°F) | Melting Point (°F) |
| 0.282 | 1.72 | 97 | 0.11 | 0.00000589 | 2560 |
Contact us to get a quick quote for your requirement.

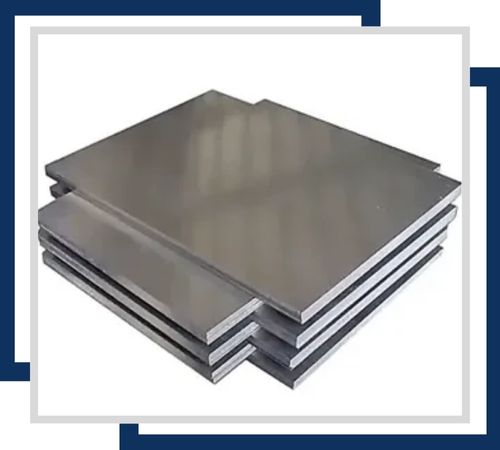

SS 15-5 PH cold-rolled sheets and plates are precision-formed stainless steel alloys that provide high strength, corrosion resistance and superior mechanical properties, Cold rolled for improved surface finish and tight tolerances. They are commonly used in high-performance applications such as aerospace, chemical processing, and construction materials, providing excellent durability and reliability

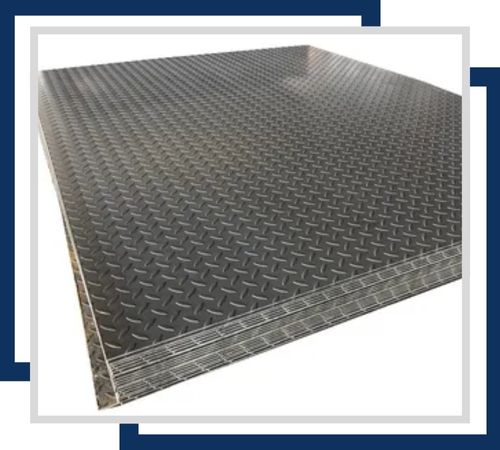

SS 15-5 PH is precipitation hardened sheet and plates, used in aerospace, marine, and chemical industries for high strength, corrosion resistance. They have excellent mechanical properties, hence provide durability along with resistance to stress corrosion cracking. Chequered plates are textured surface that provides improved grip and anti-slip properties.

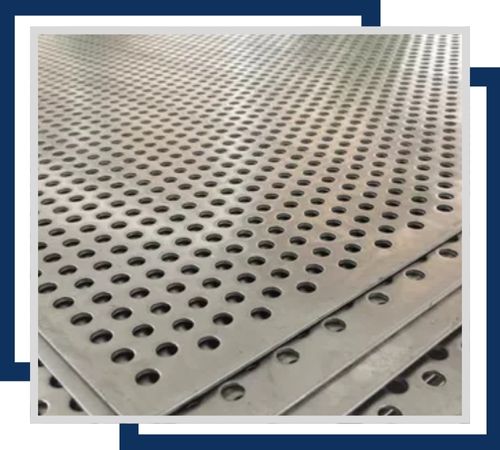

SS 15-5 PH is a good precipitation-hardening stainless steel available in sheet and plate form. Such perforated sheets and plates would offer a suitable combination of both strength and function with precise holes as filtration, venting, aesthetic design, retaining excellent mechanical properties.

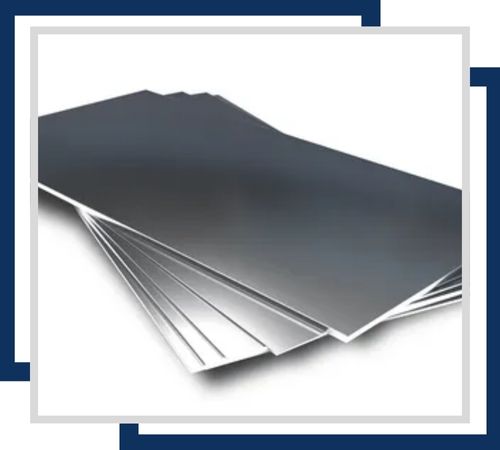

SS 15-5 PH (Precipitation Hardened) sheets and plates are high strength, corrosion resistant stainless steel. Shim sheets of SS 15-5 PH provide uniform thickness, providing excellent dimensional accuracy for gaps and locations in machinery or buildings for widespread applications in air, space, chemical and technology to increase performance.

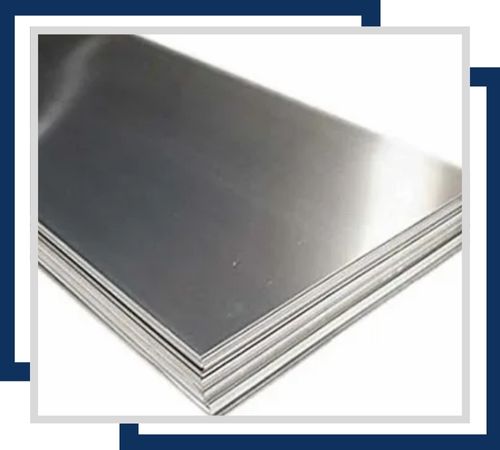

The polished SS 15-5 PH (Precipitation Hardened) plate is made of corrosion-resistant stainless steel with a smooth and luminous surface This plate provides excellent mechanical properties and resistance to compression which is difficult to crack. Commonly used in aerospace, marine and medical applications, they offer functional and aesthetic benefits along with excellent durability.
Ed Stainless promises to serve customers with outstanding service, followed by detailed documents regarding high-quality sheets and plates for stainless steel 15-5 PH sheet and plate. Some of these basic documents consist of a commercial invoice, a packing list, fumigation certificate, a heat treatment chart, quality assurance plan, and the lab test report issued from NABL-approved labs. Such documents of the products bring us closer to the trust with the valued customer. In addition, we provide our Stainless Steel 15-5 PH Sheets and Plates with various test certificates, including MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. These certificates represent our commitment to quality and satisfaction of the customer.
Ed Stainless’s SS 15-5 PH sheets and plates are extensively utilized in the aerospace, chemical processing, and petrochemical industries due to their superior corrosion resistance and high strength. They are particularly well-suited for manufacturing aircraft structural components, turbine blades, fasteners, and valve parts. Moreover, these sheets and plates are also employed in medical devices and marine applications, where durability and resistance to harsh environments are essential. Their outstanding mechanical properties, combined with excellent formability, make them ideal for precision engineering, tooling, and high-performance equipment in both industrial and commercial sectors, establishing Ed Stainless as a preferred supplier in Texas and the wider USA market.
